The average intensity of a particular TV station's signal is 1.3×10−13 W/m2 when it arrives at...
The average intensity of a particular TV station's signal is 1.3×10−13 W/m2 when it arrives at a 31-cm-diametersatellite TV antenna.

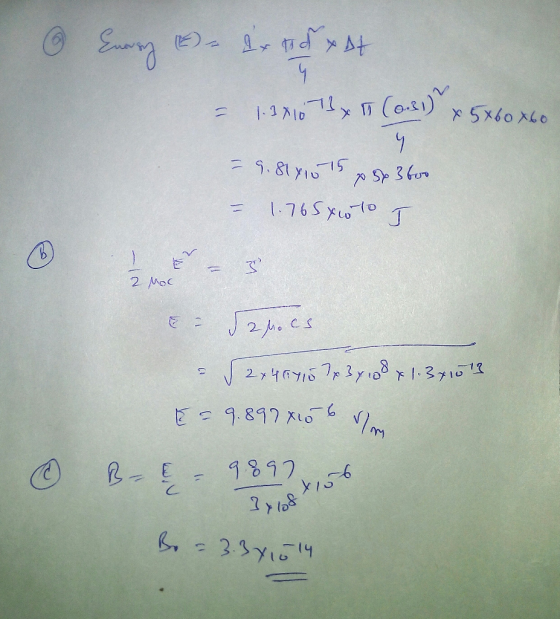

1.) Calculate the total energy received by the antenna during 5.0 hours of viewing this station's programs.
2.) What is the amplitude of the E field of the EM wave?
3.) What is the amplitude of the B field of the EM wave?
