Question

2.1 Define what is meant by an analog circuit.

2.2 Name the two laws that are used to analyze electrical circuits.

2.3 List the different types of toggle switches.

2.4 Define impedance.

2.5 What impedance characteristic is desirable in measuring devices, and why?

2.6 What device has a very large impedance at low frequencies?

2.7 What characteristic of an op-amp make it useful to use it as an interface?

2.8 List the two rules that are used to analyze ideal op-amp circuits.

2.9 List the different types of op-amp circuits.

2.10 What type of op-amp circuit is used in the implementation of an analog proportional control feedback loop?

2.11 Can the output voltage of an op-amp circuit exceed the supply voltage?

2.12 List an advantage of AC signals.

2.13 Name one way to avoid a ground loop.

2.14 Define real power of an AC circuit.

2.15 List several applications of solenoids.

2.16 What is a relay

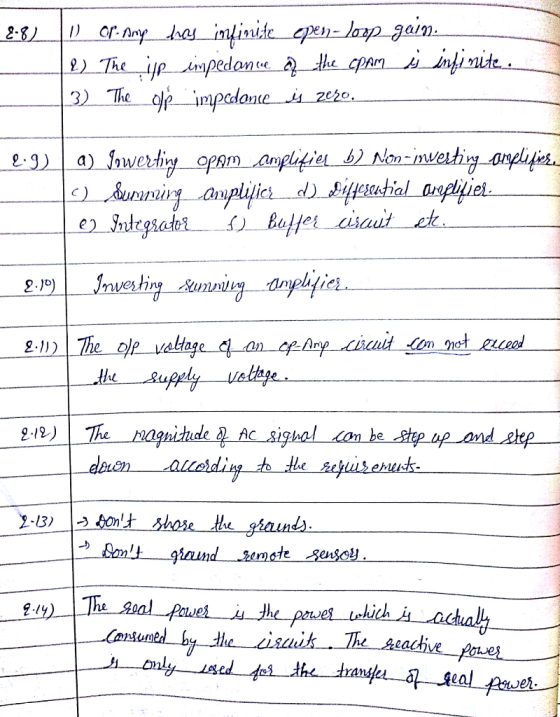

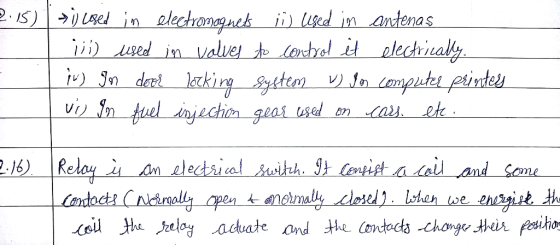

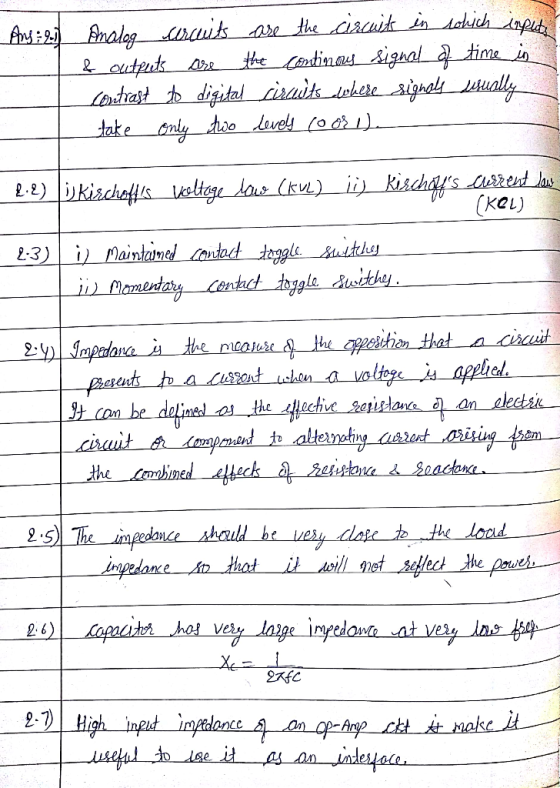

Answer 1
