PART A: A voltage of 18.0V across the terminals of a device produces a current of...

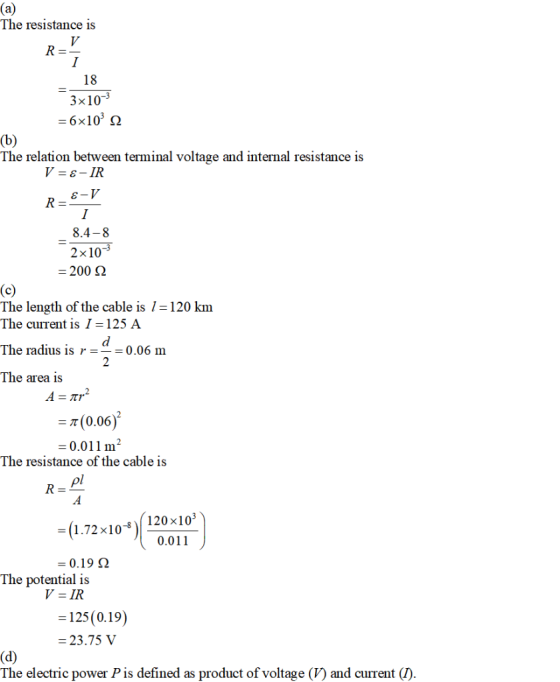

PART A: A voltage of 18.0V across the terminals of a device produces a current of 3.00 mA through the device. What is the resistance of the device?
Express your answer in kilohms to three significant figures.
PART B: An old battery with an emf of 8.4 V has a terminal voltage of 8.0 V when it is supplying a current of 2.0 mA. What is the internal resistance of the battery?
Express your answer in ohms as an integer.
PART C: A copper transmission cable 120 km long and 12.0 cm in diameter carries a current of 125 A .
What is the potential drop across the cable?

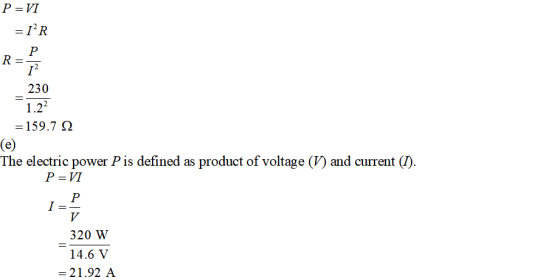

PART D: What is the resistance of a heating element when the current through it is 1.20 A and it is consuming electrical energy at a rate of 230 W?
Express your answer in ohms to three significant figures.
PART E: A resistor with a 14.6 V potential difference across its ends develops thermal energy at a rate of 320 W .
What is the current in the resistor?
What is its resistance?
