Can someone help me write my code/set up LabView using the DAQ for 7 thermocouples and...

Question

Question

Can someone help me write my code/set up LabView using the DAQ for 7 thermocouples and one pressure transducer?

step by step if possible, thank you!

j type thermocouples

engineering Computer-Science

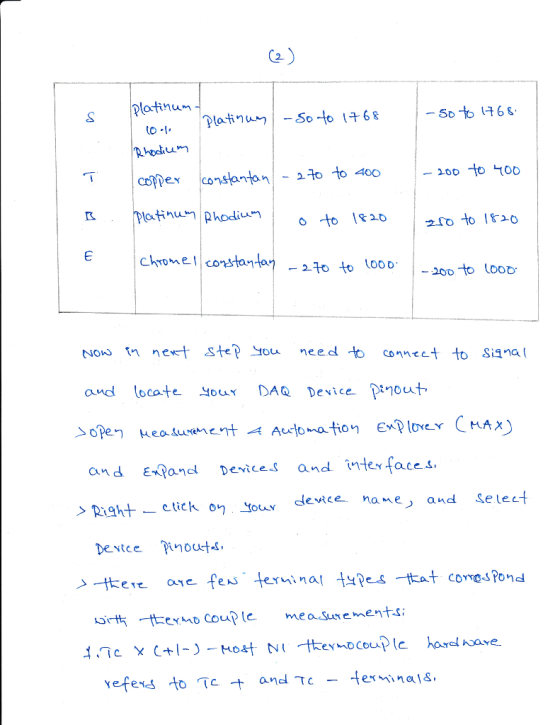

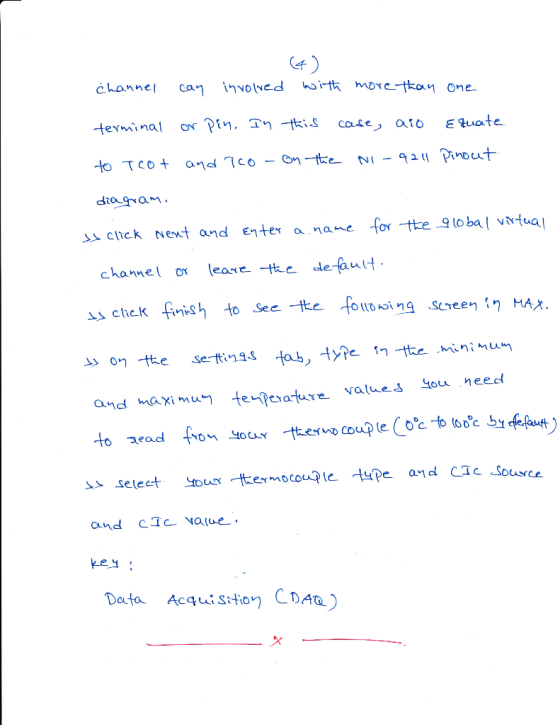

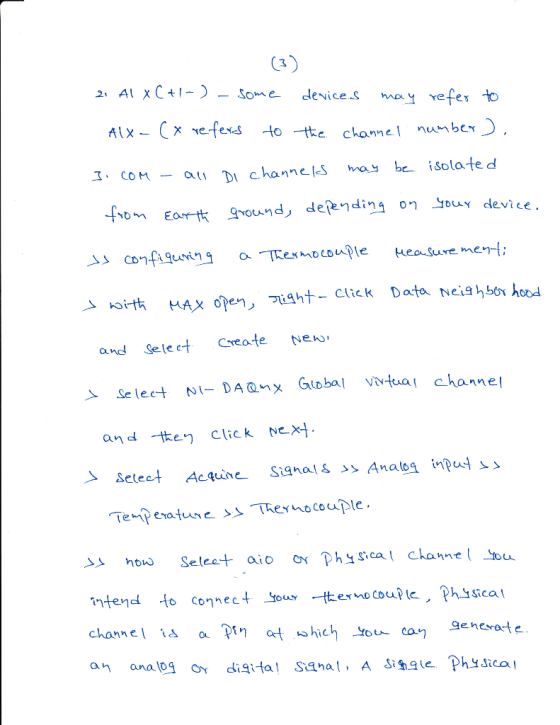

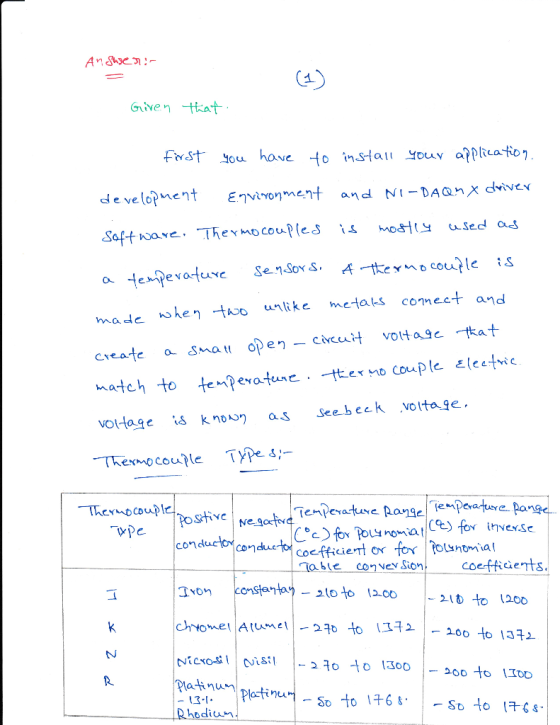

Answer 1

Answer #1

Answer 2
