A picture window has dimensions 2.2 m x 1.5 m and is made of glass 5.8...
A picture window has dimensions 2.2 m x 1.5 m and is made of glass 5.8 mm thick. On a winter day the outside temperature is -13.0 °C while the inside temperature is 18.0 °C. The thermal conductivity of glass is 0.84 J/(s-m-°C) and the thermal conductivity of paper is 0.05 J/(s-m-°C). Determine the following.
EXAMPLE
Only need help with part C
| A. | The rate of heat loss through the window. (include units with answer) |
A: 14815 J/s |
| B. | The rate of heat loss through the window if the inside is
covered with a 0.75 mm thick piece of paper. (include units with answer) |
A: 4670 J/s |

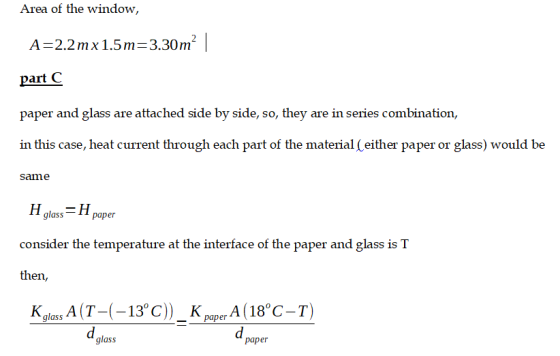

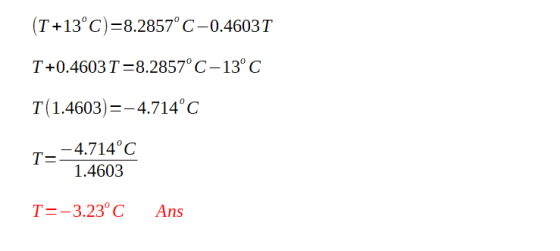

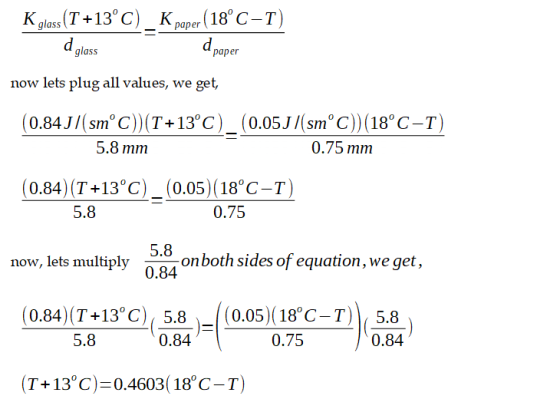

| C. | The temperature at the interface between the window and the paper. (°C) |
Hint: Use the rate of heat loss for the entire system from part B with the R=L/K of the window to determine the temperature change from the outside or the R=L/K of the paper to determine the temperature change from the inside
Homework Answers
Add Answer to:
A picture window has dimensions 2.2 m x 1.5 m and is made of
glass 5.8...
A picture window has dimensions of 1.40 m×2.50 m and is made of glass 5.30 mm...
A picture window has dimensions of 1.40 m×2.50 m and is made of glass 5.30 mm thick. On a winter day, the outside temperature is -15.0 ∘C , while the inside temperature is a comfortable 21.0 ∘C . Part A At what rate is heat being lost through the window by conduction? Part B At what rate would heat be lost through the window if you covered it with a 0.750 mm-thick layer of paper (thermal conductivity 0.0500 W/m⋅K)?
A picture window has dimensions of 1.40 m×2.50 m and is made of glass 5.30 mm...
A picture window has dimensions of 1.40 m×2.50 m and is made of glass 5.30 mm thick. On a winter day, the outside temperature is -20.0 ∘C, while the inside temperature is a comfortable 20.73 ∘C. At what rate is heat being lost through the window by conduction? Express your answer in Watts to two significant figures. At what rate would heat be lost through the window if you covered it with a 0.750-mm-thick layer of paper (thermal conductivity 0.0500...
A window glass has dimensions, 1.04 m high, 2.34 m wide and 1.341 cm thick, with a thermal conduc...
A window glass has dimensions, 1.04 m high, 2.34 m wide and 1.341 cm thick, with a thermal conductivity of 0.81 Wm10c-1. The outside- surface temperature is 32 °C and the inside-surface temperature is 24°c. Calculate the rate of heat transfer, in watts, through a plane of window glass, giving your answer to 3 decimal places.
A window glass has dimensions, 1.04 m high, 2.34 m wide and 1.341 cm thick, with a thermal conductivity of 0.81 Wm10c-1. The outside-...
part 1: A window has a glass surface of 3810 cm2 and a thickness of 8.8...
part 1: A window has a glass surface of 3810 cm2 and a thickness of 8.8 mm. Find the rate of energy transfer by conduction through this pane when the temperature of the inside surface of the glass is 70◦F and the outside temperature is 80 ◦F. Assume the thermal conductivity of window glass is 0.8 J/s · m · ◦ C . Answer in units of kW. Part 2: Find the rate of energy transfer for the same inside...
a) Calculate the heat loss for the double-pane window Inside Glass Sir Glass Outside 10 mm...
a) Calculate the heat loss for the double-pane window Inside Glass Sir Glass Outside 10 mm 10 mm 10 mm The thickness of glass (k = 0.74976 m.) is 10 mm and the distance between two glasses is 10 mm The thermal conductivity of air is k = 0.027 The temperature inside is T, = 30 C and temperature outside is C mK
Consider the rate of heat conduction through a double-paned window that has a 1.45-m2 area and...
Consider
the rate of heat conduction through a double-paned window that has
a 1.45-m2 area and is made of two panes of
0.715-cm-thick glass separated by a 1.25-cm air gap. You can ignore
the increased heat transfer in the air gap due to convection.
Calculate the rate of heat conduction through this window, in
watts, given that the inside surface temperature is 15.0°C, while
the outside temperature is -10.0°C. Make the assumption that the
temperature differences across the two glass...
A square window of a building, 2 meters on a side, is made of glass that...
A square window of a building, 2 meters on a side, is made of glass that is 5mm thick. The temperature inside is 300 K, while the temperature outside is 280 K. How fast is the window conducting heat out of the building? The thermal conductivity of glass is 0.75 W/(m K) 6 W 12 W 6,000 W 12,000 W
Please show working. Thanks A window glass has dimensions, 1.18 m high, 2.19 m wide and...
Please show working. Thanks
A window glass has dimensions, 1.18 m high, 2.19 m wide and 1.448 cm thick, with a thermal conductivity of 0.81 Wm^-10C^-1. The outside-surface temperature is 32 degreeC and the inside-surface temperature is 24 degreeC Calculate the rate of heat transfer, in watts, through a plane of window glass, giving your answer to 3 decimal places.
A thermopane window consists of two glass panes, each 0.50 cm thick, with a 1.0-cm-thick sealed...
A thermopane window consists of two glass panes, each 0.50 cm thick, with a 1.0-cm-thick sealed layer of air in between. (Use 0.8 J/s · m · °C for the thermal conductivity of glass and 0.0234 J/s · m · °C for the thermal conductivity of air to answer the following.) (a) If the inside surface temperature is 21.2°C and the outside surface temperature is 0.0°C, determine the rate of energy transfer through 1.70 m2 of the window. (b) Compare...
A thermopane window consists of two glass panes, each 0.50 cm thick, with a 1.0-cm-thick sealed...
A thermopane window consists of two glass panes, each 0.50 cm thick, with a 1.0-cm-thick sealed layer of air in between. (Use 0.8 J/s middot m middot degree C for the thermal conductivity of glass and 0.0234 J/s middot m middot degree C for the thermal conductivity of air to answer the following.) (a) If the inside surface temperature is 22.9 degree C and the outside surface temperature is 0.0 degree C, determine the rate of energy transfer through 1.60...
A window glass has dimensions, 1.04 m high, 2.34 m wide and 1.341 cm thick, with a thermal conductivity of 0.81 Wm10c-1. The outside- surface temperature is 32 °C and the inside-surface temperature is 24°c. Calculate the rate of heat transfer, in watts, through a plane of window glass, giving your answer to 3 decimal places.
A window glass has dimensions, 1.04 m high, 2.34 m wide and 1.341 cm thick, with a thermal conductivity of 0.81 Wm10c-1. The outside-...
a) Calculate the heat loss for the double-pane window Inside Glass Sir Glass Outside 10 mm 10 mm 10 mm The thickness of glass (k = 0.74976 m.) is 10 mm and the distance between two glasses is 10 mm The thermal conductivity of air is k = 0.027 The temperature inside is T, = 30 C and temperature outside is C mK
Consider
the rate of heat conduction through a double-paned window that has
a 1.45-m2 area and is made of two panes of
0.715-cm-thick glass separated by a 1.25-cm air gap. You can ignore
the increased heat transfer in the air gap due to convection.
Calculate the rate of heat conduction through this window, in
watts, given that the inside surface temperature is 15.0°C, while
the outside temperature is -10.0°C. Make the assumption that the
temperature differences across the two glass...
Please show working. Thanks
A window glass has dimensions, 1.18 m high, 2.19 m wide and 1.448 cm thick, with a thermal conductivity of 0.81 Wm^-10C^-1. The outside-surface temperature is 32 degreeC and the inside-surface temperature is 24 degreeC Calculate the rate of heat transfer, in watts, through a plane of window glass, giving your answer to 3 decimal places.
A thermopane window consists of two glass panes, each 0.50 cm thick, with a 1.0-cm-thick sealed layer of air in between. (Use 0.8 J/s middot m middot degree C for the thermal conductivity of glass and 0.0234 J/s middot m middot degree C for the thermal conductivity of air to answer the following.) (a) If the inside surface temperature is 22.9 degree C and the outside surface temperature is 0.0 degree C, determine the rate of energy transfer through 1.60...
