Question

A sinusoidal voltage of 100 V r.m.s. at 50 Hz is applied across a series combination...

A sinusoidal voltage of 100 V r.m.s. at 50 Hz is applied across a series combination of a 40 Ω resistor and an inductor of 100 mH. Determine the r.m.s. current, the apparent power, the power factor, the active power and the reactive power

0 0

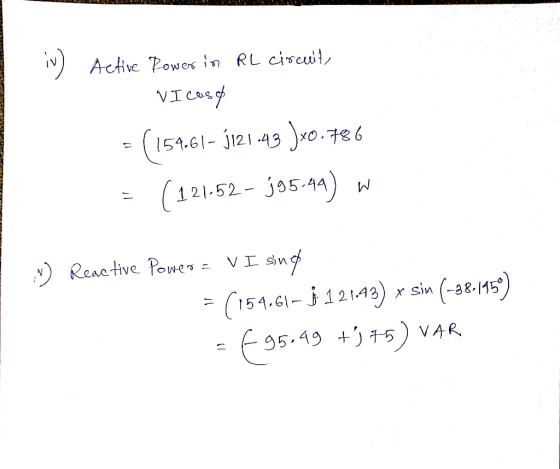

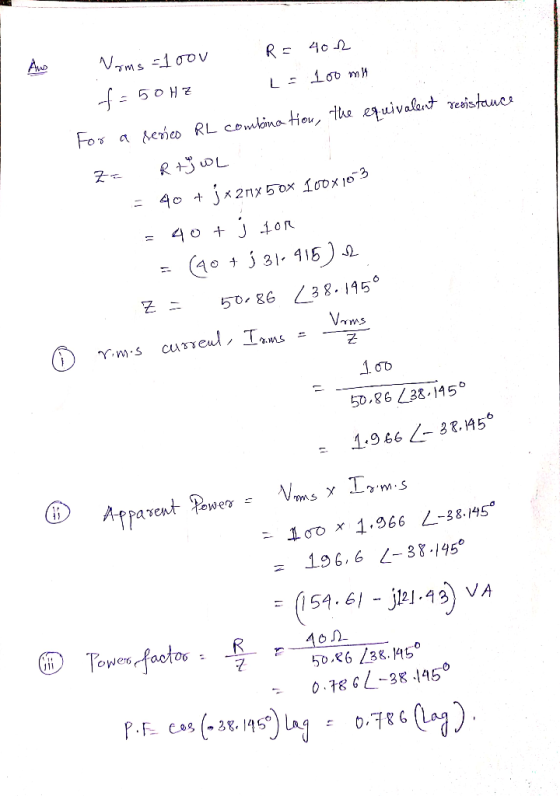

Add a comment Improve this question Transcribed image text
Know the answer?
Add Answer to:
A sinusoidal voltage of 100 V r.m.s. at 50 Hz is applied across a series combination...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • 12. A sinusoidal voltage Δv = (75.0 V)sin(120t) is applied to a series RLC circuit with...

    12. A sinusoidal voltage Δv = (75.0 V)sin(120t) is applied to a series RLC circuit with L = 20.0 mH, C = 130.0 μF, and R = 32.0 Ω. (a) What is the impedance of the circuit? Ω (b) What is the maximum current in the circuit? A 11.An AC power source has an rms voltage of 120 V and operates at a frequency of 60.0 Hz. If a purely inductive circuit is made from the power source and a...

  • An AC voltage with an amplitude of 124 V is applied to a series combination of...

    An AC voltage with an amplitude of 124 V is applied to a series combination of a 235 uF capacitor, a 108 mH inductor, and a 16.4 12 resistor. Calculate the power dissipated by the circuit at a frequency of 50.0 Hz. Submit Answer Incorrect. Tries 1/12 Previous Tries Calculate the power factor at this frequency. Submit Answer Incorrect. Tries 2/12 Previous Tries Calculate the power dissipation at a frequency of 60.0 Hz. Submit Answer Tries 0/12 Calculate the power...

  • A resistor, 50.0-mH inductor, and 100.0-uF capacitor are connected in series with a 50-Hz voltage source....

    A resistor, 50.0-mH inductor, and 100.0-uF capacitor are connected in series with a 50-Hz voltage source. The maximum voltage through the circuit is 240 V. Calculate the power across the LCR circuit, if phase angle between the current and voltage is 60degrees.

  • A sinusoidal voltage source of v(t) = 240√2sin( 2π50t + 30°) is applied to a non...

    A sinusoidal voltage source of v(t) = 240√2sin( 2π50t + 30°) is applied to a non linear load, resulting in a non-sinusoidal current, which is expressed in Fourier series form as: i(t)=10√2sin(2π50t)+2√2sin(10π50t)+1√2sin(18π50t) Determine, a) the active power, reactive power and power factor. b) the distortion factor and distortion power. c) the total harmonic distortion of the load current. d) explain the power quality disturbance arise in this problem.

  • An effective AC voltage of 175 V at 60 Hz is applied to an RLC circuit...

    An effective AC voltage of 175 V at 60 Hz is applied to an RLC circuit with 26.7 mH in- ductor, 0.547 μF capacitor, and 42 Ω resistor in series. What is the effective current? Answer in units of A. What is the power factor of the circuit? What is the power consumed in the circuit? Answer in units of W. Answer within a tolerance of ± 2 percent.

  • 681) Given a sinusoidal voltage source in series with R,L, and C. The sinusoidal frequency is...

    681) Given a sinusoidal voltage source in series with R,L, and C. The sinusoidal frequency is 400 Hz. R=7 Ohms, L=4 milliHenry, C=100 microFarad,         V=60sin(wt) volts. Determine the phasor current, phasor voltages         across the capacitor, resistor, and inductor

  • Two sinusoidal e.m.f.s of peak values 50 V and 20 V respectively but differing in phase...

    Two sinusoidal e.m.f.s of peak values 50 V and 20 V respectively but differing in phase by 30° are induced in the same circuit. Draw the phasor diagram and find the peak and r.m.s. values of the resultant e.m.f. A coil takes a current of 10.0 A and dissipates 1410 W when connected to a 230 V, 50 Hz sinusoidal supply. When another coil is connected in parallel with it, the total current taken from the supply is 20.0 A...

  • A 380 Hz sinusoidal voltage with a maximum amplitude of 120 V at t = 0 is applied across the terminals of an inductor.

    A 380 Hz sinusoidal voltage with a maximum amplitude of 120 V at t = 0 is applied across the terminals of an inductor. The maximum amplitude of the steady-state current in the inductor is 20 A. Part A What is the frequency of the inductor current?  Part B If the phase angle of the voltage is zero, what is the phase angle of the current? Part C What is the inductive reactance of the inductor? Part D What is the inductance of the inductor? Part E What is the...

  • Question # 1 - In a series R-L circuit, a voltage of 10 V at 50...

    Question # 1 - In a series R-L circuit, a voltage of 10 V at 50 Hz frequency produces a current of 750 mA. In the same circuit with same magnitude of applied voltage with a frequency of 75 Hz produces a current of 500 mA. Find out the values of R and L in the circuit. Question # 2 - Derive the equations of active, reactive and apparent powers in a series R-L circuit with sinusoidal AC supply. Question...

  • A circuit is constructed with an AC power supply, with a peak voltage of 12 V...

    A circuit is constructed with an AC power supply, with a peak voltage of 12 V and a frequency of 50 Hz, connected in series with a 200 Ω resistor, a 300 mH inductor and a 470 μF capacitor. Calculate the peak value of the voltage across the resistor, in V.
