You have a 20 V voltage source and need to “plug in” 3 appliances. The appliances...

You have a 20 V voltage source and need to “plug in” 3 appliances. The appliances have resistances of 4 ohms, 2 ohms, and 2 ohms respectively. The 4 ohm appliance requires a current of 4 A and the 2 ohm appliances each require a current of 2 A. Show the necessary configuration to make this possible. How much energy would the 2 ohm appliance dissipate in 40 s? How many electrons pass through the 4 ohm resistor each second?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

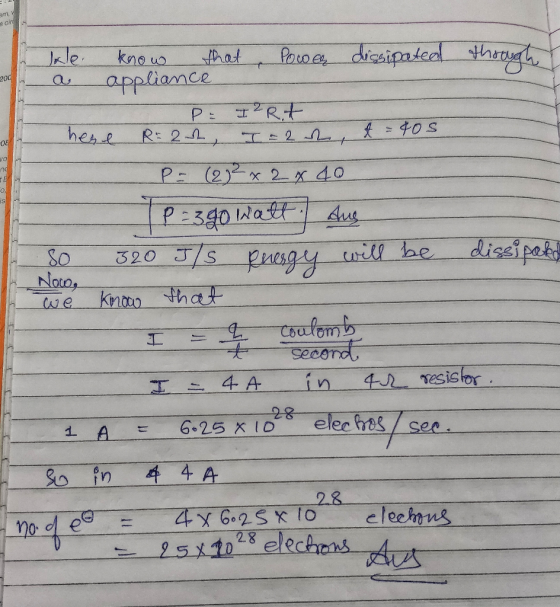

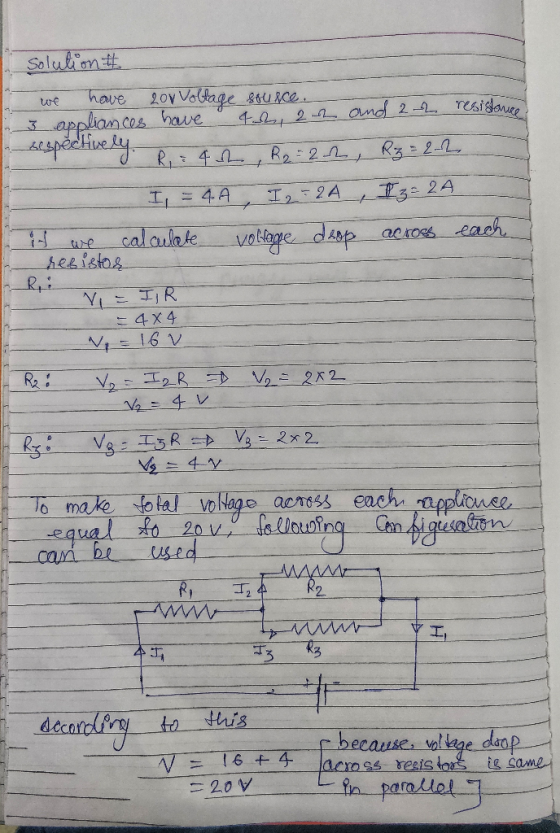

Answer #1

0 0
Add a comment
