to what voltage would a 47µF capacitor be charged if it is being charged for 10µs...

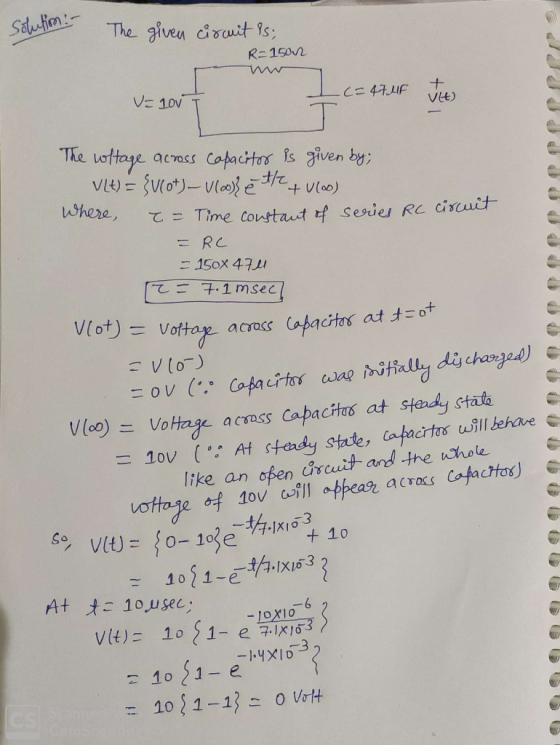

to what voltage would a 47µF capacitor be charged if it is being charged for 10µs through a 150Ω resistor from a constant voltage source of 10V?
