A 4.8 mF capacitor in series with a 500 Ω resistor is connected, by a switch,...

Question

Question

A 4.8 mF capacitor in series with a 500 Ω resistor is connected, by a switch,...

A 4.8 mF capacitor in series with a 500 Ω resistor is connected, by a switch, to a 12 V battery. The current through the resistor at t = 1.0 s, after the switch is closed is:

a. 64 mA

b.25 mA

c.49 mA

d.64 mA

science physics

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

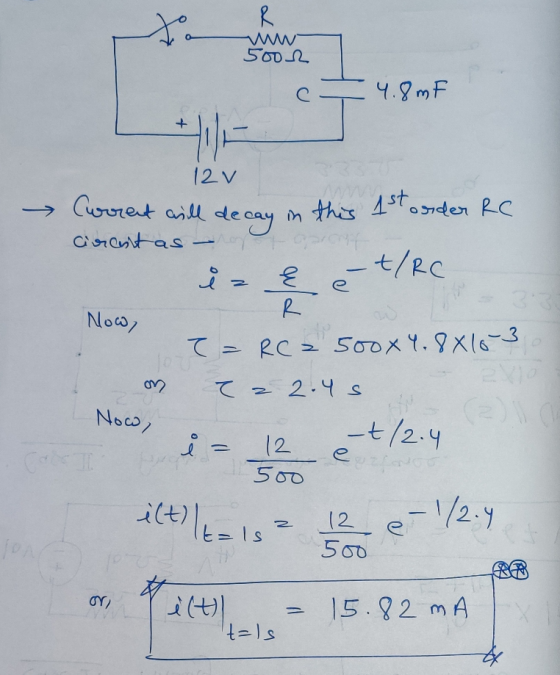

your given options are incorrect as option A and D are same. So i am providing you my solution.

Add a comment

Answer 2
