Oil at 20°C is flowing through a vertical glass funnel that consists of a 20-cm-high cylindrical...

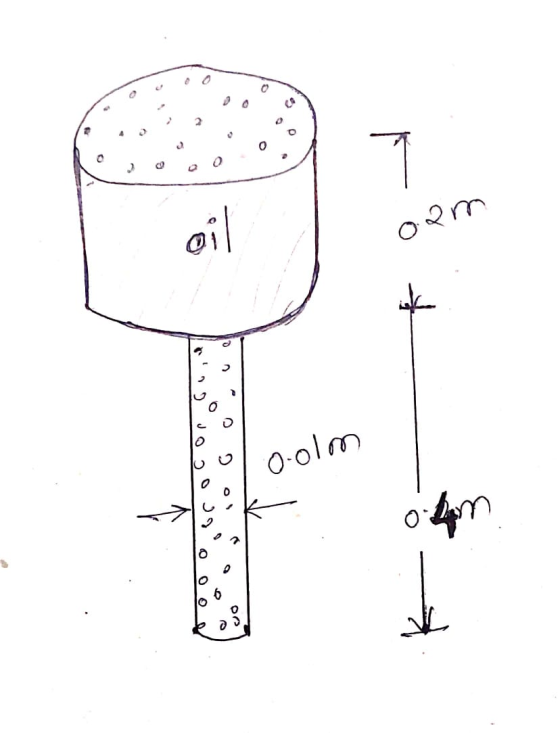

Oil at 20°C is flowing through a vertical glass funnel that consists of a 20-cm-high cylindrical reservoir and a 1-cm-diameter, 40-cm-high pipe. The funnel is always maintained full by the addition of oil from a tank. Assuming the entrance effects to be negligible, determine the flow rate of oil through the funnel and calculate the “funnel effectiveness,” which is defined as the ratio of the actual flow rate through the funnel to the maximum flow rate for the “frictionless” case.
Homework Answers
--------------------------
Ans
------------------------------
AnsAdd Answer to:
Oil at 20°C is flowing through a vertical glass funnel that
consists of a 20-cm-high cylindrical...
Show your work [14 Marks] 23. Oil has a Specific gravity 0.75 is flowing through a siphon as shown in the diagram calculate the following: a) The velocity of the oil at exit (using Bernoulli'...
Show your work [14 Marks] 23. Oil has a Specific gravity 0.75 is flowing through a siphon as shown in the diagram calculate the following: a) The velocity of the oil at exit (using Bernoulli's) b) The volumetric flow rate of oil from the tank c The flow velocity in the 60 mm diameter section of the pipe d) The pressure at point B 3.0 m se-0.75 60 mm Diameter 100m 30 mm Diameter
Show your work [14 Marks] 23....
Problem 4 (50 points) water is discharged from a reservoir at a rate of 18.103 m2/s using two horizontal cast iron pipes nected in series and a pump between them. The first pipe is 20 m long and...
Problem 4 (50 points) water is discharged from a reservoir at a rate of 18.103 m2/s using two horizontal cast iron pipes nected in series and a pump between them. The first pipe is 20 m long and has a 6-cm diameter, while the second pipe is 35 m long and has a 4-cm diameter. The water level in the reservoir is 30 m above the centerline of the pipe. The pipe entrance is sharp-edged. Losses associated with the connection...
Water is flowing through a 10-cm diameter water pipe at a rate of 0.2 m^3/s. Now...
Water is flowing through a 10-cm diameter water pipe at a rate
of 0.2 m^3/s. Now a diffuser with an outlet diameter of 20 cm is
bolted to the pipe in order to slow down water that exits into the
atmosphere, as shown. Disregarding frictional effects, determine
the force exerted on the flange due to the water flow. Density of
water = 1,000 kg/m^3.
+ d = 10 cm D = 20 cm Diffuser
Water is flowing through a 10-cm-diameter water pipe at a rate of 0.1 m/s. Then, a...
Water is flowing through a 10-cm-diameter water pipe at a rate of 0.1 m/s. Then, a diffuser with an outlet diameter of 20 cm is bolted to the pipe in order to slow down water as it exits the diffuser to atmospheric pressure, as shown in the given figure. Disregarding frictional effects, determine the force exerted on the bolts due to the water flow. Take the density of water to be 1000 kg/m3 -t- d 10 cmm D = 20...
Question 11 Water is flowing through a 10-cm-diameter water pipe at a rate of 0.2 m3/s....
Question 11 Water is flowing through a 10-cm-diameter water pipe at a rate of 0.2 m3/s. Now a diffuser with an outlet diameter of 20 cm is bolted to the pipe in order to slow down water that exits into atmosphere, as shown. Disregarding frictional effects, determine the force exerted on the flange due to the water flow. Density of water = 1000 kg/m3 = 10 cm D = 20 cm Diffuser 357 N 1549 N 6205 N none of...
Question 11 Water is flowing through a 10-cm-diameter water pipe at a rate of 0.2 m3/s....
Question 11 Water is flowing through a 10-cm-diameter water pipe at a rate of 0.2 m3/s. Now a diffuser with an outlet diameter of 20 cm is bolted to the pipe in order to slow down water that exits into atmosphere, as shown. Disregarding frictional effects, determine the force exerted on the flange due to the water flow. Density of water = 1000 kg/m3 -. + d = 10 cm D = 20 cm Diffuser 357 N 1549 N 6205...
1. For water at 20 C flowing through a straight smooth pipe at 0.06 m/h, the...
1. For water at 20 C flowing through a straight smooth pipe at 0.06 m/h, the pipe diameter for which transition to turbulence will occur is approximately a. 1.0 cm b. 1.5 cm c.2.0 cm d. 2.5 cm e. 3.0 cm 2. Find the Reynold number, the roughness parameter, the friction factor f and the pressure drop for flow of water at 20 C through a 5 cm diameter pipe of roughness height E=0.5 mm if the flow rate is...
Engine oil is heated by flowing through a circular tube of diameter D = 50 mm...
Engine oil is heated by flowing through a circular tube of diameter D = 50 mm and length L = 25 m and whose surface is maintained at 150 oC. The flow rate and inlet temperature of the oil are 0.5 kg/s and 20 oC. a. Estimate the outlet temperature Tm,o. B. Average Nusselt number C. Estimate the total heat transfer rate q for the tube.
20. A cylindrical water tower of diameter 3.0 m supplies water to a house. The level of water in the water tower is 35 m above the point where the water enters the house through a pipe that has an...
20. A cylindrical water tower of diameter 3.0 m supplies water to a house. The level of water in the water tower is 35 m above the point where the water enters the house through a pipe that has an inside diameter 5.0 cm. The pressure at the top of the water tower is I ATM and the water in the cylindrical tank flows slowly at a speed of 0.01 cm/s. At what speed does the water flow in the...
a cylindrical water storage 12. in diameter and 8m high, is filled through a 100 mm...
a cylindrical water storage 12. in diameter and 8m high, is filled through a 100 mm pipe carrying a velocity of 40 m/s. (a) how long it will take to fill the tank? (b) if the tank has an out flow pipe at the bottom with a capacity of 0.12 m^3/s discharge rate and both inflow and outflow pipes are opened at the same time, compute the time rate of the rise of the water level. (c) compute the time...
Show your work [14 Marks] 23. Oil has a Specific gravity 0.75 is flowing through a siphon as shown in the diagram calculate the following: a) The velocity of the oil at exit (using Bernoulli's) b) The volumetric flow rate of oil from the tank c The flow velocity in the 60 mm diameter section of the pipe d) The pressure at point B 3.0 m se-0.75 60 mm Diameter 100m 30 mm Diameter
Show your work [14 Marks] 23....
Problem 4 (50 points) water is discharged from a reservoir at a rate of 18.103 m2/s using two horizontal cast iron pipes nected in series and a pump between them. The first pipe is 20 m long and has a 6-cm diameter, while the second pipe is 35 m long and has a 4-cm diameter. The water level in the reservoir is 30 m above the centerline of the pipe. The pipe entrance is sharp-edged. Losses associated with the connection...
Water is flowing through a 10-cm diameter water pipe at a rate
of 0.2 m^3/s. Now a diffuser with an outlet diameter of 20 cm is
bolted to the pipe in order to slow down water that exits into the
atmosphere, as shown. Disregarding frictional effects, determine
the force exerted on the flange due to the water flow. Density of
water = 1,000 kg/m^3.
+ d = 10 cm D = 20 cm Diffuser
Water is flowing through a 10-cm-diameter water pipe at a rate of 0.1 m/s. Then, a diffuser with an outlet diameter of 20 cm is bolted to the pipe in order to slow down water as it exits the diffuser to atmospheric pressure, as shown in the given figure. Disregarding frictional effects, determine the force exerted on the bolts due to the water flow. Take the density of water to be 1000 kg/m3 -t- d 10 cmm D = 20...
Question 11 Water is flowing through a 10-cm-diameter water pipe at a rate of 0.2 m3/s. Now a diffuser with an outlet diameter of 20 cm is bolted to the pipe in order to slow down water that exits into atmosphere, as shown. Disregarding frictional effects, determine the force exerted on the flange due to the water flow. Density of water = 1000 kg/m3 = 10 cm D = 20 cm Diffuser 357 N 1549 N 6205 N none of...
Question 11 Water is flowing through a 10-cm-diameter water pipe at a rate of 0.2 m3/s. Now a diffuser with an outlet diameter of 20 cm is bolted to the pipe in order to slow down water that exits into atmosphere, as shown. Disregarding frictional effects, determine the force exerted on the flange due to the water flow. Density of water = 1000 kg/m3 -. + d = 10 cm D = 20 cm Diffuser 357 N 1549 N 6205...
1. For water at 20 C flowing through a straight smooth pipe at 0.06 m/h, the pipe diameter for which transition to turbulence will occur is approximately a. 1.0 cm b. 1.5 cm c.2.0 cm d. 2.5 cm e. 3.0 cm 2. Find the Reynold number, the roughness parameter, the friction factor f and the pressure drop for flow of water at 20 C through a 5 cm diameter pipe of roughness height E=0.5 mm if the flow rate is...
20. A cylindrical water tower of diameter 3.0 m supplies water to a house. The level of water in the water tower is 35 m above the point where the water enters the house through a pipe that has an inside diameter 5.0 cm. The pressure at the top of the water tower is I ATM and the water in the cylindrical tank flows slowly at a speed of 0.01 cm/s. At what speed does the water flow in the...
