Blood is carefully fed into two flat plates (which can be considered infinite wrt to the...
Blood is carefully fed into two flat plates (which can be considered infinite wrt to the distance between the two plates) placed closely together.

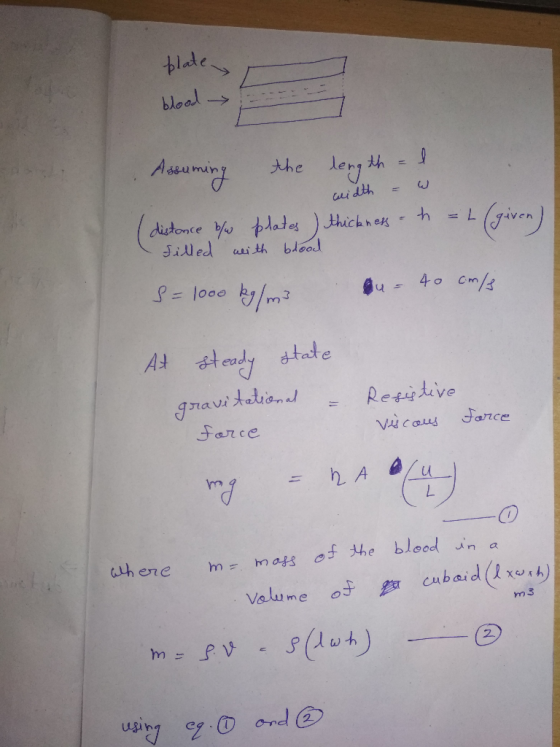

As gravity drives blood flow through the gap between the plates (with thickness ‘L’), we use a microscope to measure the velocity of red blood cells at the location where the flow is at a maximum. Assume that the flow has reached steady state at the point of observation. Based on this setup, derive an equation that will predict the viscosity of blood.

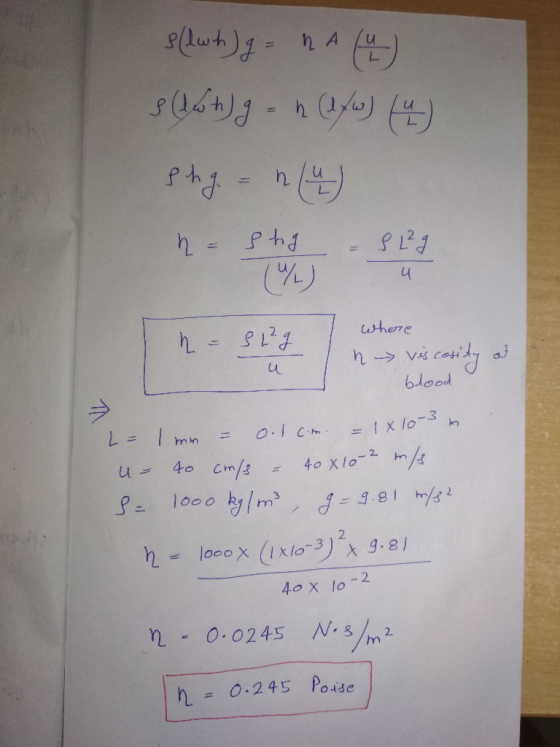

Calculate the viscosity of blood assuming that the distance between the plates is 1 mm, the density of blood is 1000 kg/m3, and the peak velocity of the blood is 40 cm/s.
Homework Answers
