Question

Describe an algorithm to determine if the nodes of some binary tree - T ( n nodes ) can be assigned with ranks s.t. T could be considered a WAVL - TREE.

The algorithm should be as efficient as possible.

Definition of a WAVL tree : https://en.wikipedia.org/wiki/WAVL_tree

Answer 1

Properties of WVAL Trees.

Consist of collection of nodes of two types. External Nodes and Internal Nodes.

• Internal Nodes stores data.
• External Nodes are null.
• Balancing is done on basis of rank difference of nodes.
• Rank of a node is number of nodes in left subtree of that node plus 1.
• Every external node has rank 0 (external node property).
• Rank difference of non-root node is either 1 or 2 (rank difference property.
• An internal node with 2 external children cannot be 2-2 node. That is, an internal node with two external children must have rank exactly 1 (internal node property).

In that way, the final n/2 operations in the AVL tree will take at least (n/2)logn time, while in the WAVL it will take n/2 time (can be proved with potential function).

WAVL (weak AVL trees) are a relaxed variant of an older rank-balanced BST, the AVL tree. Rank-balanced trees are trees in which every node has an integer rank that corresponds roughly to the height of the node (within c log h to be exact, where c is a constant and h is the height of the tree). Given these ranks, different rank rules can be defined to give different BSTs. In a WAVL tree, the rank difference between any two adjacent nodes can only be 1 or 2, where leaves always have rank 0, and leaves have two "dummy nodes" as children with rank -1. They use rotations as a constant-time restructuring primitive and guarantee that during insertion and deletion, at most two rotations will be performed. The rank rule together with the rebalancing algorithms guarantee an upper bound of 2 log n for the height of the tree.

Insertion into WAVL trees is done the same way as insertion in standard BSTs, but a series of rebalancing steps must be done from the newly inserted node, possibly up to the root. Deletion is also done as it is in standard BSTs, with a series of rebalancing steps up to the root. Searches are performed identically to searches in standard BSTs.

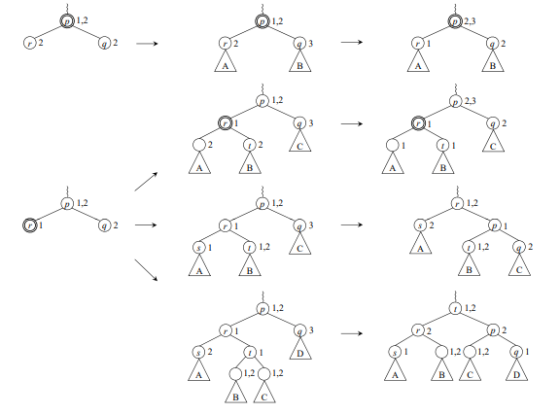

Rank-Balanced Binary Search Trees These notes describe a relaxation of AVL trees. These trees have properties like those of redblack trees but are slightly easier to maintain. In particular, rebalancing after an insertion or a deletion takes one single or double rotation and logarithmic time worst case, O(1) time amortized. Red-black trees require up to three single rotations for a deletion, AVL trees a logarithmic number.

A ranked binary tree is a binary tree whose nodes have integer ranks, with leaves having rank zero and missing nodes having rank minus one. If x is a child, the rank difference of x, ∆x, is the rank of its parent minus the rank of x. The rank of a ranked tree is the rank of its root. An AVL tree is a ranked binary tree such that every child has rank difference one or two and every node has at least one child with rank difference one. We call this the balance condition. In an AVL tree the rank of a node is its height; this will no longer be true when we relax the balance condition.

To represent an AVL tree we store with each node pointers to its children and, if it is a child, a bit that indicates whether its rank difference is one or two; we do not need to store ranks explicitly

*Note that a binary search tree, T, provides almost everything you need in order to implement your system, since it can maintain a sorted set of items so as to perform insertions and removals based on their keys (which in this case are birth dates). It also supports nearest-neighbor queries, in that, for any key k, we can perform a search in T for the smallest key that is greater than or equal to k, or, alternatively, for the largest key that is less than or equal to k. Given either of the nodes in T storing such a key, we can then perform a forward or backward inorder traversal of T starting from that point to list neighboring smaller or larger keys.

Algorithm IterativeTreeSearch(k, T):

Input: A search key k and a binary search tree, T

Output: A node in T that is either an internal node storing key k or the external node where an item with key k would belong in T if it existed

v ← T.root()

while v is not an external node do

if k = key(v) then

return v

else if k < key(v) then

v ← T.leftChild(v)

else v ← T.rightChild(v)

return v

As mentioned above, the worst-case performance of searching in a binary search tree can be as bad as linear time, since the time to perform a search is proportional to the height of the search tree. Such a performance is no better than that of looking through all the elements in a set to find an item of interest. In order to avoid this poor performance, we need ways of maintaining the height of a search tree to be logarithmic in the number of nodes it has.

Balanced Binary Search Trees The primary way to achieve logarithmic running times for search and update operations in a binary search tree, T, is to perform restructuring actions on T based on specific rules that maintain some notion of “balance” between sibling subtrees in T. We refer to a binary search tree that can maintain a height of O(log n) through such balancing rules and actions as a balanced binary search tree. Intuitively, the reason balance is so important is that when a binary search tree T is balanced, the number of nodes in the tree increases exponentially as one moves down the levels of T. Such an exponential increase in size implies that if T stores n items, then it will have height O(log n).

Algorithm restructure(x):

Input: A node x of a binary search tree T that has both a parent y and a grandparent z

Output: Tree T after a trinode restructuring (which corresponds to a single or double rotation) involving nodes x, y, and z

1: Let (a, b, c) be a left-to-right (inorder) listing of the nodes x, y, and z, and let (T0, T1, T2, T3) be a left-to-right (inorder) listing of the four subtrees of x, y, and z that are not rooted at x, y, or z.

2: Replace the subtree rooted at z with a new subtree rooted at b.

3: Let a be the left child of b and let T0 and T1 be the left and right subtrees of a, respectively.

4: Let c be the right child of b and let T2 and T3 be the left and right subtrees of c, respectively.

5: Recalculate the heights of a, b, and c, (or a “standin” function for height), from the corresponding values stored at their children, and return b.
