The mass attenuation coefficient of lead is 10 cm2/g at 100 KeV, and its density is...
-

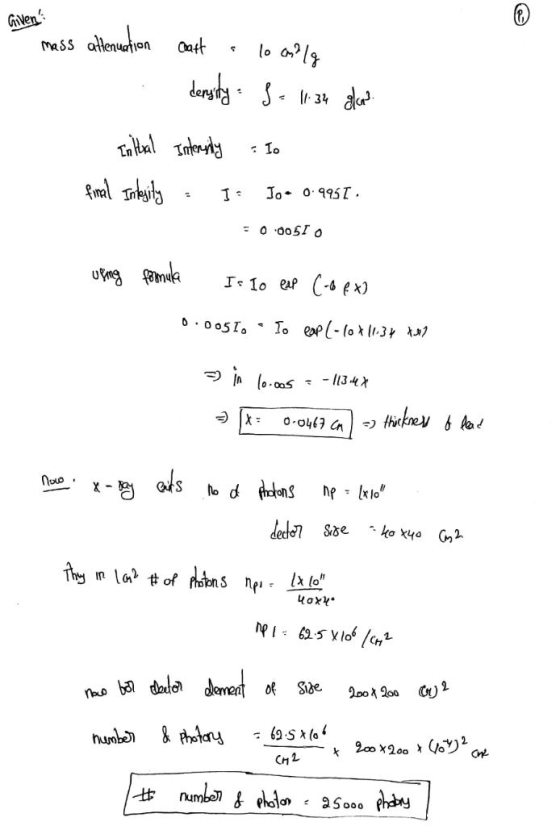

The mass attenuation coefficient of lead is 10 cm2/g at 100 KeV, and its density is 11.34 g/cm3. Compute the thickness of lead X-ray tube shield needed to attenuate 99.5% of x-rays at 100 KeV.
Homework Answers
Add Answer to:
The mass attenuation coefficient of lead is 10 cm2/g at 100 KeV,
and its density is...
The mass attenuation coefficient for 200 keV x-rays in iron is .1460cm2/g. The density of iron...
The mass attenuation coefficient for 200 keV x-rays in iron is .1460cm2/g. The density of iron is 7.874 g/cm3. If 104200 keV x-ray photons are incident on an iron plate 1.50 cm thick, how many x-ray photons will pass through the plate
Photon Interactions 137Cs is a common gamma-ray source with photon energy of 662 keV. [3 Marks]...
Photon Interactions 137Cs is a common gamma-ray source with photon energy of 662 keV. [3 Marks] Calculate the energy of Compton scattered photon at an angle of 120o. [3 Marks] Calculate the energy difference between the photo-peak and the Compton edge in the response of a scintillator detector in 137Cs spectroscopy. [4 Marks] What thickness of a lead target is needed to reduce the radiation intensity of 100 keV photons down to 10% of its original intensity? The mass attenuation...
a) Define the terms linear ottenuation coefficient and mass attenuation coefficient and state the 6. units of measu...
a) Define the terms linear ottenuation coefficient and mass attenuation coefficient and state the 6. units of measurement of each quantity. b) A layer of homogeneous material with physical density p and linear attenuation coefficient μ has uniform thickness t.A narrow beam of monoenergetic x-radiation is incident on this layer at right angles. State the relationship between the transmitted intensity Ivan and the incident e. Hence obtain an expression for the attenuation A defined as A = 1 intensity c)...
Why is the attenuation coefficient of lead greater at 0.143 MeV (lead attenuation coefficient 2.2 cm2/g)...
Why is the attenuation coefficient of lead greater at 0.143 MeV (lead attenuation coefficient 2.2 cm2/g) than it is at 0.08 MeV (lead attenuation coefficient 1.2 cm2/g)?
a ) If a lead screen of thickness 2 mm is used to protect personnel from...
a ) If a lead screen of thickness 2 mm is used to protect personnel from X-ray exposure, calculate the transmission factor when Mo K-a X-ray is used. Given the mass absorption coefficient of lead for Mo K-a radiation is 122.8 cm2/g and the density of lead is 11.34 g/cm3. Note - Please show calculations
Estimate the thickness of Copper, Tin and Lead absorber needed to attenuate a 100 keV photon...
Estimate the thickness of Copper, Tin and Lead absorber needed to attenuate a 100 keV photon beam by a factor of 10^6.Which absorber material would be ideal for building a wall to shield you from the photons?.
Beta rays incident on a specific material of mass thickness attenuation factor t = 0.33 g/cm2,...
Beta rays incident on a specific material of mass thickness attenuation factor t = 0.33 g/cm2, and a mass thickness T = 0.18 g/cm2 . The percentage of radiation passes through the material (i.e., I(T)/I0 % ) is (two significant figures). Use equation 1 in the manual.
Beta rays incident on a specific material of mass thickness attenuation factor t = 0.25 g/cm2,...
Beta rays incident on a specific material of mass thickness attenuation factor t = 0.25 g/cm2, and a mass thickness T = 0.13 g/cm2 . The percentage of radiation passes through the material (i.e., I(T)/I0 % ) is (two significant figures). Use equation 1 in the manual. I got 97% apparently thats wrong.
The mass absorption coefficient for chromium measured using the copper Ka1 line is 39.8 cm2/g. Calculate...
The mass absorption coefficient for chromium measured using the copper Ka1 line is 39.8 cm2/g. Calculate the thickness of a chromium foil that was found to transmit 36.8 % of the incident power of a beam of copper Ka1 radiation. The density of chromium is 7.15 g/cm3. (Hint: Use the mass absorption coefficient relationship.)
Given the following information, what is the mass attenuation coefficient of this material? What is material?...
Given the following information, what is the mass attenuation coefficient of this material? What is material? Mean density = 2.33 g/cm3 Io = 2 Mev Thickness (cm) Measured gamma emitted (Mev) 2.0 1.65 2.3 1.53 3.0 1.40 3.1 1.42 4.2 1.29 4.2 1.31 5.0 1.16
a) Define the terms linear ottenuation coefficient and mass attenuation coefficient and state the 6. units of measurement of each quantity. b) A layer of homogeneous material with physical density p and linear attenuation coefficient μ has uniform thickness t.A narrow beam of monoenergetic x-radiation is incident on this layer at right angles. State the relationship between the transmitted intensity Ivan and the incident e. Hence obtain an expression for the attenuation A defined as A = 1 intensity c)...
Why is the attenuation coefficient of lead greater at 0.143 MeV (lead attenuation coefficient 2.2 cm2/g) than it is at 0.08 MeV (lead attenuation coefficient 1.2 cm2/g)?
