We are given a graph G = (V,E) where V represents a set of locations and...
-

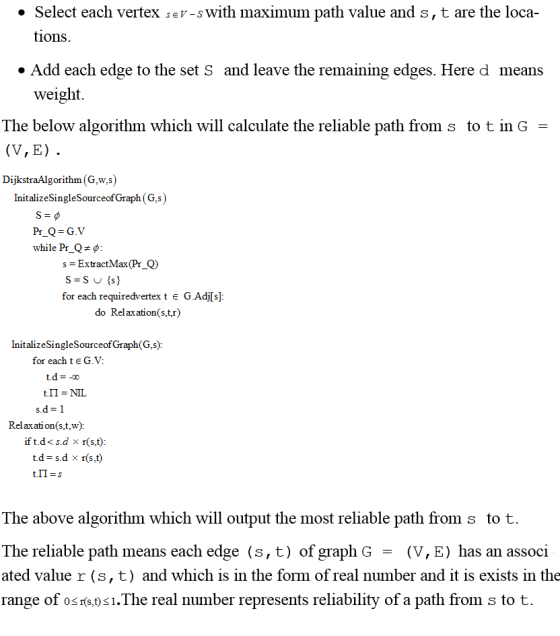

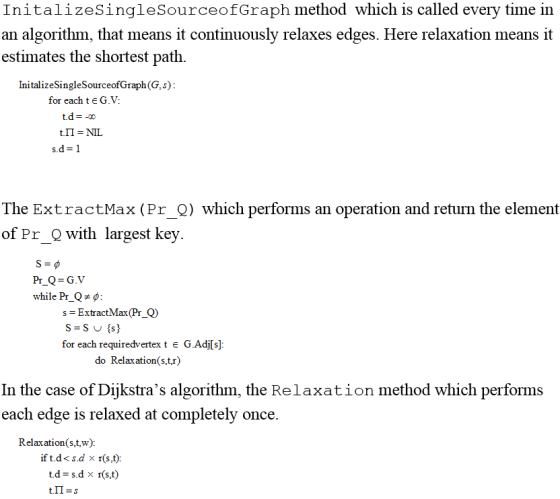

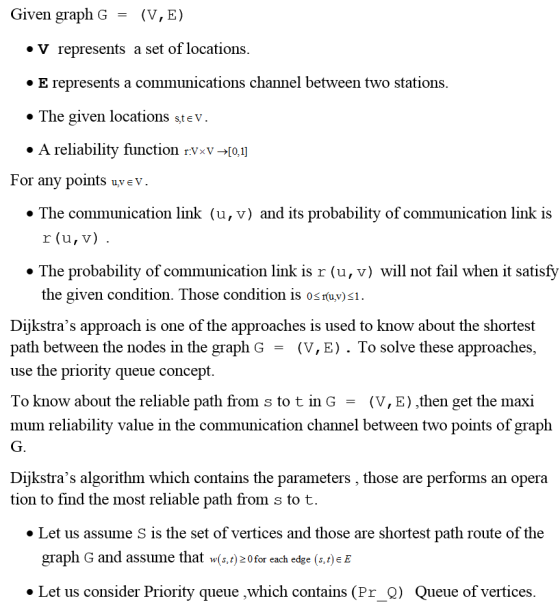

We are given a graph G = (V,E) where V represents a set of locations and E represents a communications channel between two points. We are also given locations s, t ∈ V , and a reliability function r : V × V → [0, 1]. You need to give an efficient algorithm which will output the reliability of the most reliable path from s to t in G.
For any points u, v ∈ V , r(u, v) is the probability that the communication link (u, v) will not fail: 0 ≤ r(u, v) ≤ 1. Note that if there is a path with two edges, for example, from u to v tow, then the reliability of that path is r(u, v) · r(v, w).
Homework Answers
