Steam enters an adiabatic turbine steadily at 6 MPa, 500oC and 45 m/s and exits at...

Steam enters an adiabatic turbine steadily at 6 MPa, 500oC and 45 m/s and exits at 100 kPa, 100oC, and 75 m/s. The power output from the turbine is 5 MW. Calculate:

  1. the mass flow rate of steam through the turbine,
  2. the rate of exergy destroyed during this process, and
  3. the second law efficiency of the turbine.
engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

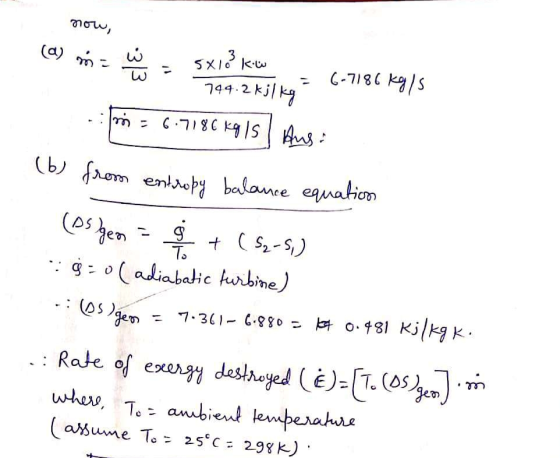

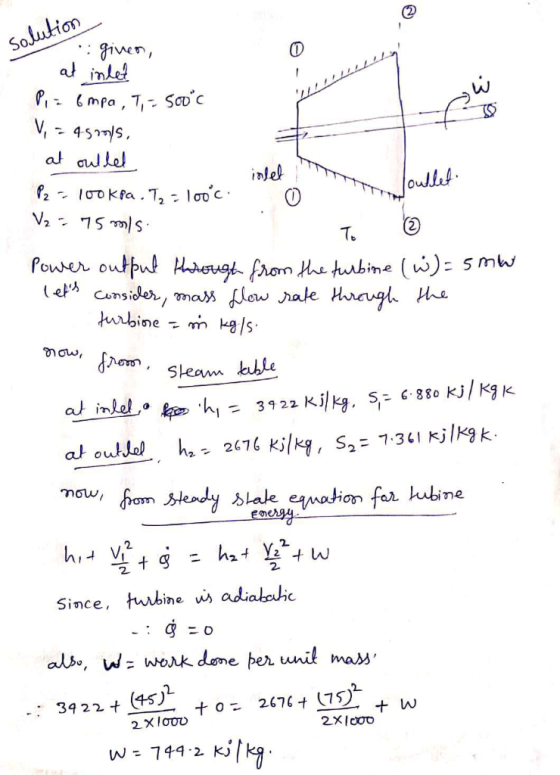

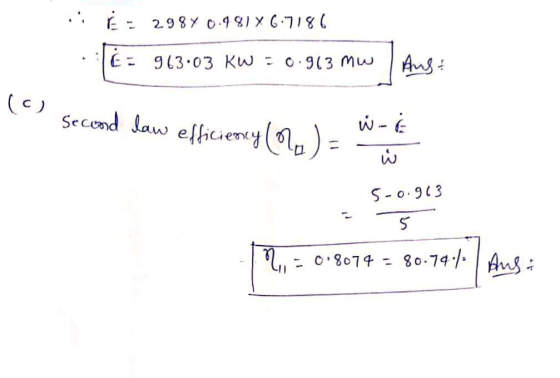

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
Steam enters an adiabatic turbine steadily at 6 MPa, 500oC and 45 m/s and exits at...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Steam enters an adiabatic turbine steadily at 7 MPa, 500 °C, and 45 m/s

    Steam enters an adiabatic turbine steadily at 7 MPa, 500 °C, and 45 m/s, and leaves at 100 kPa and 75 m/s. If the power output of the turbine is 5 MW and the isentropic efficiency is 77 percent, determine: A. the mass flow rate of steam through the turbine, B. the temperature at the turbine exit, and C. the rate of entropy generation during this process.

  • Steam enters an adiabatic turbine steadily at 3 MPa and 450°C at a rate of 8...

    Steam enters an adiabatic turbine steadily at 3 MPa and 450°C at a rate of 8 kg/s and exits at 0.2 MPa and 150*C. If the surrounding air is at 25°C and 100 kPa, determine: a. The specific flow exergy of steam at turbine entrance b. The specific flow exergy of steam at turbine exit c. The rate of flow exergy change in the process.

  • Steam with the mass flow rate of 0.75 kg/s enters an adiabatic turbine steadily at 19 MPa, 600°C and 150 m/s

    Steam with the mass flow rate of 0.75 kg/s enters an adiabatic turbine steadily at 19 MPa, 600°C and 150 m/s, and leaves at 150 kPa and 350 m/s. The isentropic efficiency of the turbine is 85%. Neglect potential energy. (I) Determine the exit temperature of the steam, and its quality (if saturated mixture)  (ii) Calculate the actual power output of the turbine, in kW (iii)  Illustrate a T-s diagram with respect to saturation lines for the isentropic process by clearly indicating all pressure, temperature,...

  • Steam flows steadily through an adiabatic turbine. The inlet conditions of the steam are 6 MPa,...

    Steam flows steadily through an adiabatic turbine. The inlet conditions of the steam are 6 MPa, 400°C, and 80 m/s, and the exit conditions are 40 kPa, 92 percent quality, and 50 m/s. The mass flow rate of the steam is 20 kg/s. Determine (a ) the change in kinetic energy, (b) the power output, and (c) the turbine inlet area.

  • Steam flows steadily through an adiabatic turbine

    Steam flows steadily through an adiabatic turbine. The inlet conditions of the steam are 4 MPa, 500°C, and 80 m/s, and the exit conditions are 30 kPa, 92 percent quality, and 50 m/s. The mass flow rate of the steam is 12 kg/s. Determine a. (3) Change in kinetic energy (-23.4 kJ) b. (4) Power output (12.12 MW) c. (3) Turbine inlet area (0.012966 m2)

  • An adiabatic turbine uses steam as the medium and it operates steadily at pressure of 6...

    An adiabatic turbine uses steam as the medium and it operates steadily at pressure of 6 Mpa, temperature of 600 oC and velocity inlet of 53 m/ The steam expands in the turbine and exits at pressure of 10 kPa and velocity of 82 m/s. During the process, the power produced by the turbine is 5.4 Mw and the isentropic efficiency is 50 % Format: 80.5 Format:73498 Format:4.8577 Format 0.88 Format: 7547.8 Format : 9.5 Format: 34366 Format : 6588...

  • Please show steps. Steam at 0.3 kg/s enters an adiabatic turbine at 2 MPa and 500°C....

    Please show steps. Steam at 0.3 kg/s enters an adiabatic turbine at 2 MPa and 500°C. It exits at 100 kPa. If the isentropic efficiency is 95%, how much power is produced, in units of kW? Correct Answer is 514.1 m/s Thank you.

  • 2(a) Steam enters a turbine at 6 MPa and 500°C at a rate of 1.5 kg/s...

    2(a) Steam enters a turbine at 6 MPa and 500°C at a rate of 1.5 kg/s and leaves at 20 kPa. Assume the turbine is adiabatic and neglect kinetic energy changes. The power output of the turbine is 2.5 MW. What is the phase of the steam entering the turbine? appendix 1-2.pdf

  • 11) An adiabatic compressor is to be powered by a direct-coupled adiabatic turbine that is also...

    11) An adiabatic compressor is to be powered by a direct-coupled adiabatic turbine that is also driving a generator. Steam enters the turbine at 10 MPa and 500 °C at a rate of 15 kgs and exits at 20 kPa. The turbine isentropic efficiency is 85% Air enters the compressor at 98 kPa and 230C at a rate of 10 kg/s, and exits the compressor at 1.2 MPa. The compressor efficiency is 75 %. Determine: a) the power requirement of...

  • 761 Steam enters a turbine operating at steady state at 4 MPa, 500 C with a...

    761 Steam enters a turbine operating at steady state at 4 MPa, 500 C with a mass flow rate of 50 kg/s Saturated vapor exits at 10 kPa and the corresponding power developed is 42 MW The effects of motion and gravity negligible. are (a) For a control volume enclosing the turbine, determine the rale of heat Iransfer, in MW, from the turbine to its surrmundings Asuming 50°C. determine the rate of exergy destruction, in MW (b) If the turbine...
