4. A 3rd-order lowpass filter is described by the difference equation y(n) = 0.01 x(n) + 0.05 x(n − 1) + 0.05 x(n − 2) + 0.01 x(n − 3) + 1.75 y(n − 1) − 1.18 y(n − 2) + 0.28 y(n − 3). Plot the magnitude and the phase responses of this filter and verify that it is a lowpass filter.
how do I code on matlab
clear;
clc;
close all;
syms n z y(n) x(n);
eqn1 = y(n) == 0.01*x(n) + 0.05*x(n-1) + 0.05*x(n-2) +0.01*x(n-3) +
1.75*y(n-1) - 1.18*y(n-2) + 0.28*y(n-3);
z_eqn1 = ztrans(eqn1);
syms Y X;
z_eqn1 = subs(z_eqn1,[ztrans(y(n), n, z) ztrans(x(n), n, z)],[Y
X]);
z_eqn1 = subs(z_eqn1,[y(-1) y(-2) y(-3) x(-1) x(-2) x(-3)],[0 0 0 0
0 0]); %placing the initial conditions as 0
z_eqn1 = subs(z_eqn1,X,1); % to find the mag/phase response
considering X(z) = 1 i.e x(n) = kroneckerDelta.
Y = solve(z_eqn1,Y); %Solving for Y and get the z-domain response
of the kroneckerDelta input
w_range = -pi:0.1:pi;
%for finding the mag/phase plot, we need to substitute z = exp(j*w)
and
%then w varies from 0 to 2*pi.
syms w;
response_w = subs(Y,z,exp(1i*w));
fft_response = subs(response_w,w,w_range);
mag_response = abs(fft_response);
phase_response = angle(fft_response);

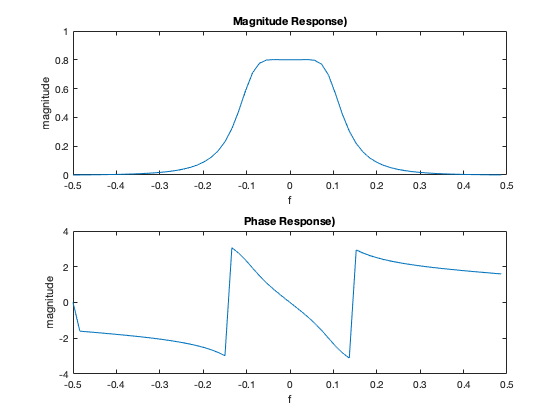

subplot 211
plot(w_range/(2*pi),mag_response);
title("Magnitude Response)");
xlabel("f");
ylabel("magnitude");
subplot 212
plot(w_range/(2*pi),phase_response);
title("Phase Response)");
xlabel("f");
ylabel("magnitude");

Fro the above plot, it is clear that the given filter is a low pass filter, since it allows the lower frequencies and stops higher frequencies.
If you have any doubts, please feel free to ask in the comments.
4. A 3rd-order lowpass filter is described by the difference equation y(n) = 0.01 x(n) +...
For the causal filter below y(n) x(n) -20 eja 1-0.8e10 Write the difference equation(show the equation clearly and define coefficients) Give and plot the frequency response magnitude (show the equation clearly) Compute and plot the impulse response using MATLAB d a. b. c. Use MATLAB to determine steady state response due to x(n)-u(n) Write a MATLAB program to compute and plot the frequency response of the overall system. Give plots in dB and the program e.
For the causal filter...
For the causal filter below y(n) x(n) -20 eja 1-0.8e10 Write the difference equation(show the equation clearly and define coefficients) Give and plot the frequency response magnitude (show the equation clearly) Compute and plot the impulse response using MATLAB d a. b. c. Use MATLAB to determine steady state response due to x(n)-u(n) Write a MATLAB program to compute and plot the frequency response of the overall system. Give plots in dB and the program e.
For the causal filter...
3.21. Given a filter described by the difference equation y[n] = 2x[n] + 3x[n - 1] + 2x[n - 2] where x[n] is the input signal and y[n] is the output signal. (a) Find and plot h[n] the impulse response of the filter. (b) find and plot H(Ω).
Please solve the whole question.
An FIR filter is described by the difference equatio y(n) - x(n) - x(n -6) (a) Compute and sketch its magnitude and phase response. (b) Determine its response to the inputs 310 10 2π π x (n) = 5 + 6 cos-n + 2,
An FIR filter is described by the difference equatio y(n) - x(n) - x(n -6) (a) Compute and sketch its magnitude and phase response. (b) Determine its response to the inputs...
Design lowpass IIR filter with the following specifications: Filter order = 2, Butterworth type Cut-off frequency=800 Hz Sampling rate =8000 Hz Design using the bilinear z-transform design method Print the lowpass IIR filter coefficients and plot the frequency responses using MATLAB. MATLAB>>freqz(bLP,aLP,512,8000); axis([0 4000 –40 1]); Label and print your graph. What is the filter gain at the cut-off frequency 800 Hz? What are the filter gains for the stopband at 2000 Hz and the passband at 50 Hz based...
For the causal filter below x(п) y(n) -2j0 1 -0.8e 2j0 Write the difference equation(show the equation clearly and define coefficients) а. b. Give and plot the frequency response magnitude (show the equation clearly) Compute and plot the impulse response using MATLAB Use MATLAB to determine steady state response due to x(n)=u(n) c. d. Write a MATLAB program to compute and plot the frequency response of the overall system. Give plots in dB and the program e.
For the causal...
(5) For the system described by the following difference equation y(n)= 0.9051y(n 1) 0.598y(n 2) -0.29y(n 3) 0.1958y(n - 4) +0.207r(n)0.413r(n 2)+0.207a(n - 4) (a) Plot the magnitude and phase responses of the above system. What is the type of this filter? (b) (b) Find and plot the response of the system to the input signal given by /6)sin(w2n +T /4) u(n), where w 0.25m and ws 0.45m a(n) 4cos(win -T = (c) Determine the steady-state output and hence find...
Please solve using the Discrete-Time Fourier Transform: Given a filter described by the difference equation y[n] = x[n] + 2x[n - 1] + x[n - 3] where x[n] is the input signal and y[n] is the output signal. a) Find H[n] the impulse response of the filter. b) Plot the impulse response c) Find the value of H( Ω) for the following values of Ω = 0, pi, pi/2, and pi/4
Question 1: A filter is described by the difference equation y(n) = y(n-1)+3x(n) - 4x(n-4). (a) What is its transfer function? (b) Draw the signal-flow diagram of a realization of the filter.
P2.19 A linear and time-invariant system is described by the difference equation y(n) 0.5y(n 10.25y(n 2)-x(n) + 2r(n - 1) + r(n -3) 1. Using the filter function, compute and plot the impulse response of the system over 0n100. 2. Determine the stability of the system from this impulse response. 3. If the input to this system is r(n) 5 3 cos(0.2Tm) 4sin(0.6Tn)] u(n), determine the 200 using the filter function response y(n) over 0 n
