Draw clear Free Body Diagrams (FBD) for each of the following cases, determine whether object is...
Draw clear Free Body Diagrams (FBD) for each of the following cases, determine whether object is in equilibrium or not and write the proper scalar equations for relevant force components.

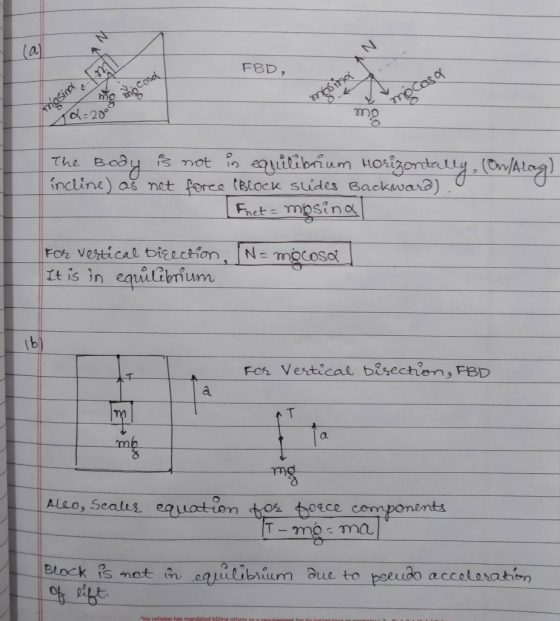

a) object of mass M on the frictionless incline (? = 20°).
b) object of mass m suspended on the single rope from the ceiling of the elevator accelerating up with acceleration a.

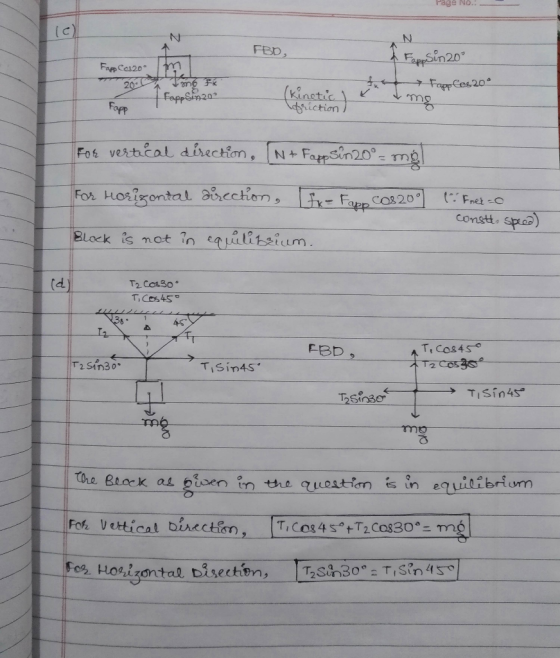

c) object mass m moving with constant speed on the rough horizontal surface pushed by the Fapp at 20o below horizontal.
d) object of mass M is in equilibrium while suspended from a massless knot attached to the two cords making the angles of 30 o and 45 o with horizontal ceiling.
Homework Answers
Add Answer to:
Draw clear Free Body Diagrams (FBD) for each of the following
cases, determine whether object is...
8. Draw freebody diagrams if needed to solve both 8a and 8b. a. A 723 kg...
8. Draw freebody diagrams if needed to solve both 8a and 8b. a. A 723 kg elevator car is supported by two cables. Assume that the tension in each cable is the same. If the elevator is accelerating downward at 0.298 m/s2, find the magnitude of the tension in each cable, in N. 8b. A heavy rope of mass 6.44 kg is tied around a box of mass 10.7 sitting at rest on a horizontal, frictionless surface. If the rope...
a) Draw fully labelled free body and extended free body diagrams for the object. b) Explain what causes the object t...
a) Draw fully labelled free body and extended free body diagrams
for the object.
b) Explain what causes the object to roll instead of
slide.
2. Estimate how far the Earth moves when you jump up
to a height of 10 cm. Hint: The inertia of the earth is about 10^25
kg and its radius is about 10^5 km.
3.
5. A solid cylindrical object of rotational inertia, I, and radius, R, rolls down a angle e with the horizontal...
Identifying and Drawing Force Vectors (No Calculator) FN Surface Force perpendicular to Eill in the table...
Identifying and Drawing Force Vectors (No Calculator) FN Surface Force perpendicular to Eill in the table and draw a FBD for each of the following casesTe the surface. object is in BOLD letter Fr- Friction (Surface force parallel to the surface; opposes motion). We will only consider siding friction FA- Applied force. = Force towards the center of Q1. The surface is rough and the block speeds up. Q2. The crate is held by the rope on a smooth surface...
Need Help ！！！！！！！！ The figures show free-body diagrams (FBD) for an object of mass m. Write...
Need Help ！！！！！！！！
The figures show free-body diagrams (FBD) for an object of mass m. Write the x-y components of Newton's second law. Write your equations in term of the magnitudes of the forces F,F... and any angles defined in the diagram. One equation is shown to illustrate the procedure. 1. F1 民 3 F2 F2 mag max = may = F1-F2 ma, 2. It is good practice to draw an "acceleration diagram" (i.e. a diagram with the acceleration vector)...
Can someone solve these? ill award a thumbs up Force Balance and Free body Diagrams 9....
Can someone solve these? ill award a thumbs up
Force Balance and Free body Diagrams 9. (2) True or false: Dynamic equilibrium involves a net force equal to zero and the object at rest 10. (2) True or false: A hockey puck sliding on a frictionless Ice rink at constant velocity is in dynamic equilibrium. 11. (2) True or False: A stoplight hanging motionless from a wire is in dynamic equilibrium For questions 12, 13 and 14 draw and label...
1. An unknown mass (mı) on a rough horizontal surface is attached by a wire that passes over a massless, frictionless pulley to a 2.50kg mass (m2) as shown below. The bottom of the hanging mass is 1....
1. An unknown mass (mı) on a rough horizontal surface is attached by a wire that passes over a massless, frictionless pulley to a 2.50kg mass (m2) as shown below. The bottom of the hanging mass is 1.50m above the floor. The system is released from rest at t-0s and the 2.50kg mass strikes the floor 0.82s later. The system is now returned to its initial position and a 1.20kg mass is placed on top of the block of mass...
a) Draw fully labelled free body and extended free body diagrams
for the object.
b) Explain what causes the object to roll instead of
slide.
2. Estimate how far the Earth moves when you jump up
to a height of 10 cm. Hint: The inertia of the earth is about 10^25
kg and its radius is about 10^5 km.
3.
5. A solid cylindrical object of rotational inertia, I, and radius, R, rolls down a angle e with the horizontal...
Identifying and Drawing Force Vectors (No Calculator) FN Surface Force perpendicular to Eill in the table and draw a FBD for each of the following casesTe the surface. object is in BOLD letter Fr- Friction (Surface force parallel to the surface; opposes motion). We will only consider siding friction FA- Applied force. = Force towards the center of Q1. The surface is rough and the block speeds up. Q2. The crate is held by the rope on a smooth surface...
Need Help ！！！！！！！！
The figures show free-body diagrams (FBD) for an object of mass m. Write the x-y components of Newton's second law. Write your equations in term of the magnitudes of the forces F,F... and any angles defined in the diagram. One equation is shown to illustrate the procedure. 1. F1 民 3 F2 F2 mag max = may = F1-F2 ma, 2. It is good practice to draw an "acceleration diagram" (i.e. a diagram with the acceleration vector)...
Can someone solve these? ill award a thumbs up
Force Balance and Free body Diagrams 9. (2) True or false: Dynamic equilibrium involves a net force equal to zero and the object at rest 10. (2) True or false: A hockey puck sliding on a frictionless Ice rink at constant velocity is in dynamic equilibrium. 11. (2) True or False: A stoplight hanging motionless from a wire is in dynamic equilibrium For questions 12, 13 and 14 draw and label...
1. An unknown mass (mı) on a rough horizontal surface is attached by a wire that passes over a massless, frictionless pulley to a 2.50kg mass (m2) as shown below. The bottom of the hanging mass is 1.50m above the floor. The system is released from rest at t-0s and the 2.50kg mass strikes the floor 0.82s later. The system is now returned to its initial position and a 1.20kg mass is placed on top of the block of mass...
