Question: Draw the ERD for the following situation. Show all entities, attributes, relationships, cardinalities, and modalities....
Question: Draw the ERD for the following situation. Show all entities, attributes, relationships, cardinalities, and modalities.
Each student (with attributes StudentID, StudentName, and StudentMajor) must be assigned one advisor (with attributes AdvisorID, AdvisorName, and AdvisorDepartment). Advisors may advise no students or may advise many students.
Each student must register for zero or many courses (with attributes CourseID, CourseTitle, and CourseCredits) with the help of one or more advisers. A course may have at least one student registered, and may have many students. Advisors may register zero or many students in courses.
We must keep track of students, courses, advisors, and the registrations for each semester (Hint: create an associative entity—Registration)
Homework Answers

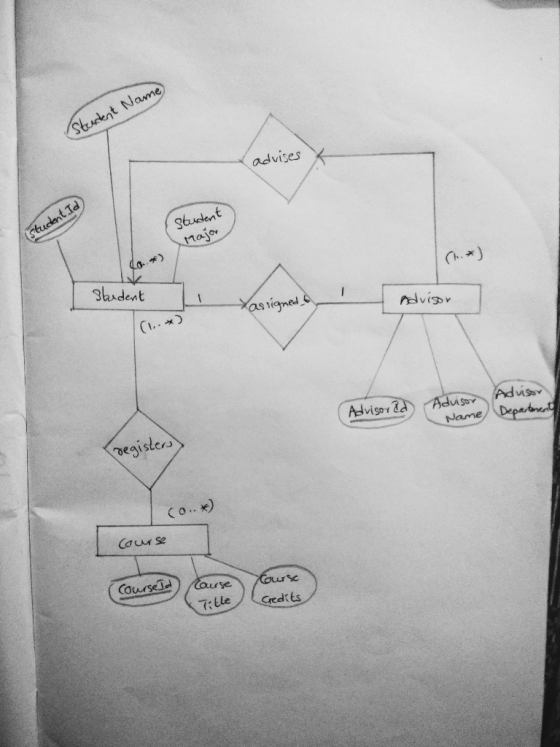

The entity relationship diagram is drawn as shown below.The primary keys,attributes,entities and relationships with cardinalities are drawn below.
ER Diagram:
Add Answer to:
Question: Draw the ERD for the following situation. Show
all entities, attributes, relationships, cardinalities, and
modalities....
For this assignment, you should create an Entity Relationship Diagram (ERD) in Visio that shows a...
For this assignment, you should create an Entity Relationship Diagram (ERD) in Visio that shows a many-to-many relationship between DeVry University students and their classes. Since one student can have many classes and each class can have many students, you will need to create an associative entity to store the specific Student_Class data such as grade and attendance. Create the tables as well as the relationships. Don't forget to indicate the Primary Key and Foreign Key in each table. Tables...
ERD requirements: In your ERD*, you must include: • All entities and the relationships among them;...
ERD requirements: In your ERD*, you must include: • All entities and the relationships among them; • Reasonable attributes for each entity; • Notations of all PKs and FKs • Cardinalities for each relationship. ERD Cases: Draw an ERD for each of the following situations. (If you believe that you need to make additional assumptions, clearly state them for each situation.) Draw the same situation using the tool you have been told to use in the course. A laboratory has...
Create an Entity-Relationship Diagram (ERD). In the ERD include the following:
Create an Entity-Relationship Diagram (ERD).In the ERD include the following: entities primary keys for all entities attributes - use "good" names for attributes, use only single-valued attributes relationships - use Crow's foot or UML notation; name relationships that could be ambiguous cardinality - minimum (optional/mandatory) and maximum (one or many) on both ends of the relationship - use reasonable assumptions if there is insufficient information in the descriptionStudent/Course registration system for a universityStudents have a unique identification number, first name, middle initial, last name, year...
Use the following business rules to create a Crow's Foot ERD. Write all appropriate connectivities and cardinalities in the ERD.
Exercise 1: ERD Use the following business rules to create a Crow's Foot ERD. Write all appropriate connectivities and cardinalities in the ERD. A department employs many employees, but each employee is employed by only one department. Some employees, known as "rovers," are not assigned to any department. A division operates many departments, but each department is operated by only one division. An employee may be assigned many projects, and a project-may have many employees assigned to it. A project must have at least one employee...
In this phase of the project you will create an ERD based upon the following requirements and bus...
In this phase of the project you will create an ERD based upon the following requirements and business rules. Limit your ERD to entities and relationships based on the business rules showed here. In other words, do not add realism to your design by expanding or refining the business rules. However, make sure you include all attributes needed that would permit the model to be successfully implemented, including all primary and foreign keys. 1. Trinity College (TC) is divided into...
Create an ER Diagram showing all entities and relationships that describe the scenario below: You are...
Create an ER Diagram showing all entities and relationships that describe the scenario below: You are commissioned to design a database to keep records of a small college. You talked with various key members of this community and obtained the following information: The college keeps information about students and student performance. Every student is known by her/his first name, initials and last name. They are also identified by a unique StudentID provided by the University. Every student also belongs to...
QUESTION 1 1. Use the following business rules to draw the fully labeled Crow's Foot ERD...
QUESTION 1 1. Use the following business rules to draw the fully labeled Crow's Foot ERD in Visio. The diagram must include all entities, attributes, and relationships. Primary keys and foreign keys must be clearly identified on the diagram. Write all appropriate connectivities and cardinalities on the ERD. a). Each city may have many sport teams. The number of teams is limited to 20 per city. b). Each team belongs to one and only city. c). Each team has at...
QUESTION 1 1. Use the following business rules to draw the fully labeled Crow's Foot ERD...
QUESTION 1 1. Use the following business rules to draw the fully labeled Crow's Foot ERD in Visio. The diagram must include all entities, attributes, and relationships. Primary keys and foreign keys must be clearly identified on the diagram. Write all appropriate connectivities and cardinalities on the ERD. a). Each city may have many sport teams. The number of teams is limited to 20 per city. b). Each team belongs to one and only city. c). Each team has at...
1. Draw an ERD for the following situation. Be sure to show: entity information, attributes, identifier(s),...
1. Draw an ERD for the following situation. Be sure to show: entity information, attributes, identifier(s), relationships and relationship names, and cardinality Each publisher has a unique name; a mailing address and telephone number are also kept on each publisher. A publisher may publish one or more books; a book is published by exactly one publisher. A book is identified by its ISBN, and other attributes are title, price, and number of pages. Each book is written by one or...
DRAW THE ERD(CDM) AND GENERATE THE RELATIONAL TABLE (PDM) USING POWER DESIGNER. PLEASE COMPLETE EACH ENTITY...
DRAW THE ERD(CDM) AND GENERATE THE RELATIONAL TABLE (PDM) USING POWER DESIGNER. PLEASE COMPLETE EACH ENTITY WITH ATTRIBUTES INCLUDING PRIMARY KEY AND FOREIGN KEY CONSTRAINTS PROBLEM 3 - Draw an entity-relationship diagram for the following scenario, stating any assumptions you find it necessary to make, and showing unknown cardinalities and optionalities using question marks on the relationship line. Show also the attributes explicitly mentioned in the scenario and underline any you consider suitable candidates for being primary keys. It is...
In this phase of the project you will create an ERD based upon the following requirements and business rules. Limit your ERD to entities and relationships based on the business rules showed here. In other words, do not add realism to your design by expanding or refining the business rules. However, make sure you include all attributes needed that would permit the model to be successfully implemented, including all primary and foreign keys. 1. Trinity College (TC) is divided into...
1. Draw an ERD for the following situation. Be sure to show: entity information, attributes, identifier(s), relationships and relationship names, and cardinality Each publisher has a unique name; a mailing address and telephone number are also kept on each publisher. A publisher may publish one or more books; a book is published by exactly one publisher. A book is identified by its ISBN, and other attributes are title, price, and number of pages. Each book is written by one or...
