In an ac series RC circuit, if 20 VAC is measured across the resistor and 40...

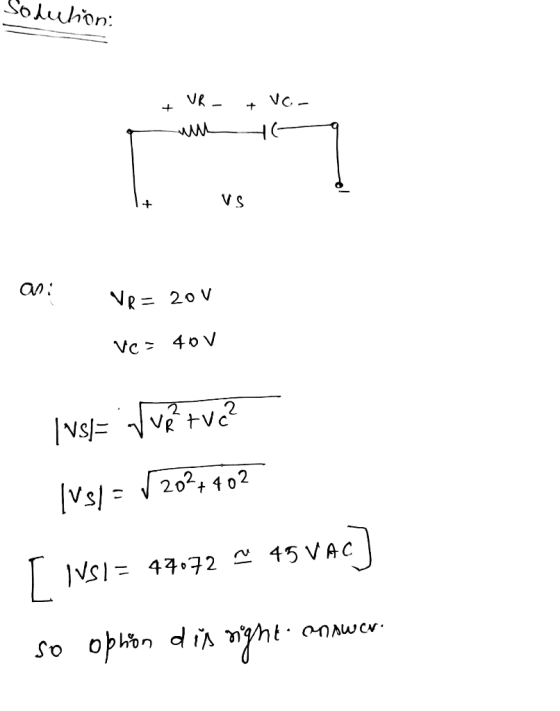

In an ac series RC circuit, if 20 VAC is measured across the resistor and 40 VAC is measured across the capacitor, the magnitude of the applied voltage is which of the following?
(a) ≈ 60 VAC (b) ≈ 55 VAC (c) ≈ 50 VAC (d) ≈ 45 VAC
Draw a circuit diagram and show your calculations
Hint: “VAC” is a common unit that means “ac voltage” and it is implied that the voltage is a sine wave. For this problem it does not matter whether values are rms or peak.
Homework Answers
