Question

Please use python codes thank you so much!!! I really need help!!!

Create a plot showing the monthly average temperature starting in January 2001 (one plot showing all data points from January 2001 through December 2003).

Year   Jan  Feb  Mar  Apr  May  Jun  Jul  Aug  Sep  Oct  Nov  Dec
2001    42   43   55   50   56   54   60   48   53   50   69   55
2002    75   75   89   56   63   55   61   53   62   55   58   43
2003    73   55   57   53   60   47   53   65   64   74   52   73

Answer 1

Code:

#matplotlib is a module that contains ploting functions
import matplotlib.pyplot as plt
#MAT = Monthly Average Temperature
#x1 is the MAT of the year 2001
x1=[42, 43, 55, 50, 56, 54, 60, 48, 53, 50, 69, 55]
#x2 is the MAT of the year 2002
x2=[75, 75, 89, 56, 63, 55, 61, 53, 62, 55, 58, 43]
#x3 is the MAT of the year 2003
x3=[73, 55, 57, 53, 60, 47, 53, 65, 64, 74, 52, 73]
#these are used to add additional properties for the plot
i,j = plt.subplots()
#all the names of months are stored to label them on the X axis
months=['Jan', 'Feb', 'Mar', 'Apr', 'May','Jun','Jul', 'Aug', 'Sep', 'Oct', 'Nov', 'Dec']
#please open the output graph in full screen
#bar function is used to plot bar graph
#1st parameter is the X axis values
#2nd parameter is the Y axis values
#color is used to define the color of the bar
#label is used to define the colors for the resective years
plt.bar(list(range(1,13)),x1,color="green",label="2001")
plt.bar(list(range(13,25)),x2,color="red",label="2002")
plt.bar(list(range(25,37)),x3,color="blue",label="2003")
#set_xticklabels is used to set labels for X axis
#as there are 3 years each year has 12 months so months*3
j.set_xticklabels(months*3)
#xticks is used to define 36 labels
plt.xticks(list(range(1,37)))
plt.xlabel('Months of respective year')
plt.ylabel('Monthly average temperature')
plt.title('Temperature vs Months')
#legend is used to disply the label
plt.legend()
#show is used to display the plot
plt.show()

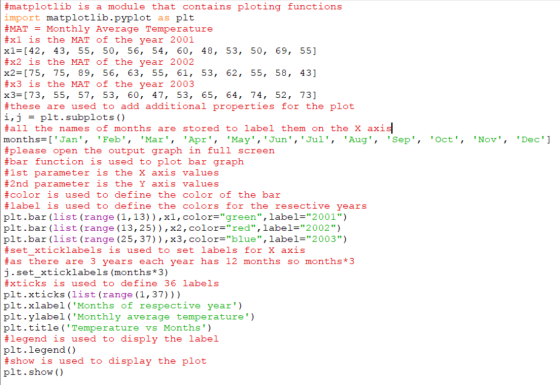

Screenshot:

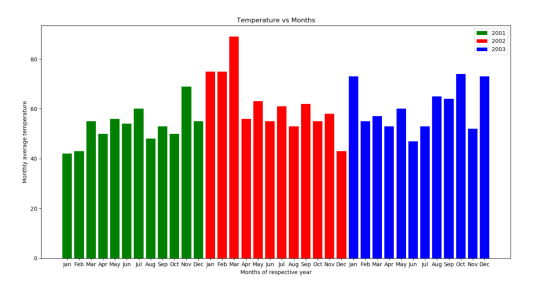

Output:
