At an initial temperature of 25.86 oC, a 50.015 m long, brass wire (α = 19...

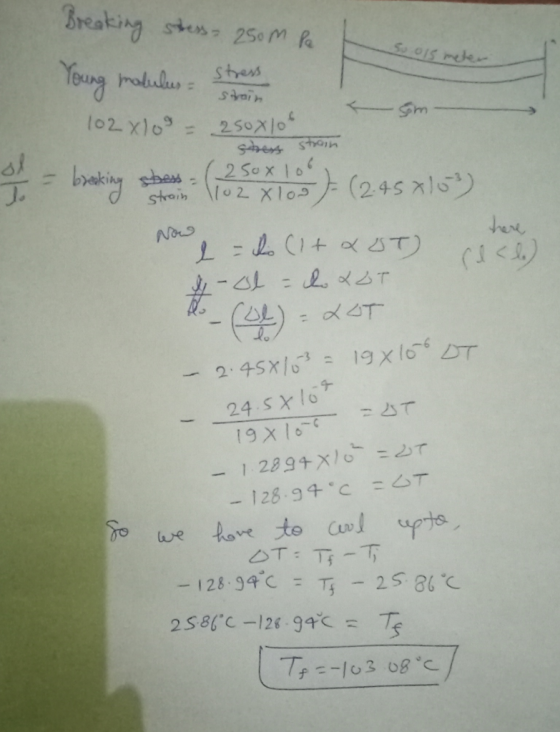

At an initial temperature of 25.86 oC, a 50.015 m long, brass wire (α = 19 x 10-6oC-1 , Y = 102 GPa and US 250 MPa ) has each end fastened to rigid posts that are exactly 50 m apart. The initially loose wire sags, but as its temperature drops it contracts and becomes taut.
a) Calculate the temperature when it breaks from its thermal stress.
Homework Answers
Add Answer to:
At an initial temperature of 25.86 oC, a 50.015 m
long, brass wire (α = 19...
The bronze bar 3-m long with a cross-sectional area of 350 mm2 is placed between two...
The bronze bar 3-m long with a cross-sectional area of 350
mm2 is placed between two rigid walls. At a temperature
of -20 oC, there is a gap Δ = 2.2 mm, as shown in the
figure. Use α = 18 x 10-6/ oC and E = 80 GPa.
(A)What is the increase in temperature in oC at which
the compressive stress in the bar will be 30 MPa? (B) What is the
final temperature in oC at which the...
A steel cable spanning a river is 200,000 m long when the temperature is 20.oC. What...
A steel cable spanning a river is 200,000 m long when the temperature is 20.oC. What will be its length when the temperature drops to 0oC? (The coefficient of thermal expansion of steel is 12.x10-6K-1.)
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the ver...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
The bronze bar 3-m long with a cross-sectional area of 350
mm2 is placed between two rigid walls. At a temperature
of -20 oC, there is a gap Δ = 2.2 mm, as shown in the
figure. Use α = 18 x 10-6/ oC and E = 80 GPa.
(A)What is the increase in temperature in oC at which
the compressive stress in the bar will be 30 MPa? (B) What is the
final temperature in oC at which the...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
