In a gas turbine, gas enters the turbine at a temperature of 600'C and 5 bar...

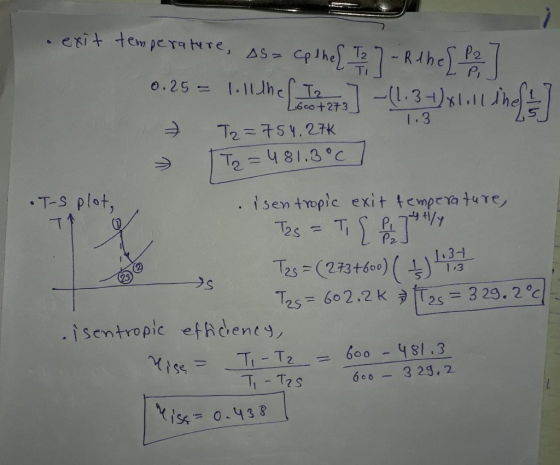

In a gas turbine, gas enters the turbine at a temperature of 600'C and 5 bar of pressure and exit at a pressure of 1 bar. This process is an adiabatic process but the change in entropy is 0.250 kJ/kg K. Determine the temperature of exit gas. Assumed that the gas is an ideal gas and take the value of y=1.3 and cp = 1.11 kJ/kg K. Sketch the process on a T-s diagram. Determine the temperature of the exit gas and the isentropic efficiency of the turbine.
Homework Answers
Add Answer to:
In a gas turbine, gas enters the turbine at a temperature of
600'C and 5 bar...
An adiabatic turbine operates at steady state. Air enters the turbine at a pressure and temperature...
An adiabatic turbine operates at steady state. Air enters the turbine at a pressure and temperature of 800 kPa and 1100 K, respectively, and exits at 100 kPa. A temperature sensor at the turbine exit indicates that the exit air temperature is 700 K. Kinetic and potential energy effects are negligible, and the air can be treated as an ideal gas. Determine if the exit temperature reading can be correct. If yes, determine the turbine isentropic efficiency.
Steam with the mass flow rate of 0.75 kg/s enters an adiabatic turbine steadily at 19 MPa, 600°C and 150 m/s
Steam with the mass flow rate of 0.75 kg/s enters an adiabatic turbine steadily at 19 MPa, 600°C and 150 m/s, and leaves at 150 kPa and 350 m/s. The isentropic efficiency of the turbine is 85%. Neglect potential energy. (I) Determine the exit temperature of the steam, and its quality (if saturated mixture) (ii) Calculate the actual power output of the turbine, in kW (iii) Illustrate a T-s diagram with respect to saturation lines for the isentropic process by clearly indicating all pressure, temperature,...
In a combustion turbine using natural gas as the fuel, air enters the compressor at 98...
In a combustion turbine using natural gas as the fuel, air enters the compressor at 98 kPa and 300 "K. The pressure ratio in the compressor is 8 and the isentropic efficiency of the compressor is 85%. The outlet temperature of the combustion chamber is 1200 K. The pressure drops by 4 percent in the combustion chamber. The exit pressure of the turbine is 102 kPa and the isentropic efficiency of the turbine is 90%. Find: a) The exit temperature...
A steam turbine operates with P1 = 5 MPa and T1 = 600 °C at the...
A steam turbine operates with P1 = 5 MPa and T1 = 600 °C at the
inlet, an exit pressure of P2 = 100 kPa, a mass flow rate of ?̇ =
100 kg/s, and an isentropic efficiency of η = 85%. Complete a
thermodynamic analysis of the turbine, using the appropriate data
for water, by finding: (A) The temperature at the exit, T2, (B) the
work produced by the turbine, ?̇ ?, and (C) the rate of entropy
production...
Repeat Problem 3, but this time, treat the steam as an ideal gas with cp = 2.083 kJ/kg-K, which is its value at about 70...
Repeat Problem 3, but this time, treat the steam as an ideal gas
with cp = 2.083 kJ/kg-K, which is its value at about 700 K. (You
will need to determine Rg = Ru/MWwater, with MWwater = 18.0
kJ/kg-K, as well as k = cp/cv). You’ll find that the ideal gas
model is not too bad for water vapor under these conditions.
Solve the second one plz
Steam enters an adiabatic turbine at 8 MPa and 700 C with a...
Combustion gases enter an adiabatic gas turbine at 800oC and 900 kPa and leave at 100...
Combustion gases enter an adiabatic gas turbine at 800oC and 900 kPa and leave at 100 kPa with a low velocity. Treating the combustion gases as air (R = 0.2870 kPa*m3/kg, cp = 1.005 kJ/kg*K, k = 1.4) and assuming an isentropic efficiency of 82 percent, determine the work output of the turbine and the exit temperature.
NO INTERPOLATION REQUIRED Air enters an adiabatic turbine at 1000 kPa and 1625 degrees C (state...
NO INTERPOLATION REQUIRED Air enters an adiabatic turbine at 1000 kPa and 1625 degrees C (state 1) with a mass flow rate of 5 kg/s and leaves at 100 kPa the isentropic efficiency of the turbine is 85%. Neglecting the kinetic energy change of the steam, and considering variable specific heats, determine: a. the isentropic power of the turbine Isentropic power in kW b. the temperature at the turbine exit temperature at exit in degrees C c. the actual power...
Problem 4 – Entropy transfer in a control volume (18 pts) An adiabatic reversible steam turbine...
Problem 4 – Entropy transfer in a control volume (18 pts) An
adiabatic reversible steam turbine steadily processes 2 kg/s of
steam at 5 MPa and 450°C, which is exhausted at 100 kPa and 100°C.
The turbine exhibits an isentropic efficiency of 0.85. a) Draw a
schematic representation of the system with all the energy
interactions involved. (2pts) b) Determine the h (kJ/kg) and s
(kJ/kg-K) at the inlet. (2 pts) c) Determine the actual h (kJ/kg)
and s (kJ/kg-K)...
Argon enters an insulated nozzle at 280 kPa, 1300 K, 10 m/s and exits at 645...
Argon enters an insulated nozzle at 280 kPa, 1300 K, 10 m/s and exits at 645 m/s. Assume argon is an ideal gas and has a constant specific heat. Determine a) The exit temperature of the argon under the actual process (K). b) The ideal exit temperature of the argon (K) under the isentropic process if the isentropic efficiency of the nozzle is 90 percent. c) The exit pressure of the argon (kPa). d) The amount of specific entropy generation...
Question A.1 A schematic of a gas turbine combined cycle generating plant is shown in Figure...
Question A.1 A schematic of a gas turbine combined cycle generating plant is shown in Figure A1.1 on the next page. Exhaust gas from the gas turbine generator pass througha heat recovery steam generator (HRSG) which generates steam to drive a steam turbine generator. The following data is provided for the plant: Gas turbine 18.9:1 Pressure ratio Compressor air inlet temperature Turbine inlet temperature 15°C t 273 288 1350°C +273- 1623 588 kg/s T, T3 Exhaust gas mass flow Isentropic...
In a combustion turbine using natural gas as the fuel, air enters the compressor at 98 kPa and 300 "K. The pressure ratio in the compressor is 8 and the isentropic efficiency of the compressor is 85%. The outlet temperature of the combustion chamber is 1200 K. The pressure drops by 4 percent in the combustion chamber. The exit pressure of the turbine is 102 kPa and the isentropic efficiency of the turbine is 90%. Find: a) The exit temperature...
A steam turbine operates with P1 = 5 MPa and T1 = 600 °C at the
inlet, an exit pressure of P2 = 100 kPa, a mass flow rate of ?̇ =
100 kg/s, and an isentropic efficiency of η = 85%. Complete a
thermodynamic analysis of the turbine, using the appropriate data
for water, by finding: (A) The temperature at the exit, T2, (B) the
work produced by the turbine, ?̇ ?, and (C) the rate of entropy
production...
Repeat Problem 3, but this time, treat the steam as an ideal gas
with cp = 2.083 kJ/kg-K, which is its value at about 700 K. (You
will need to determine Rg = Ru/MWwater, with MWwater = 18.0
kJ/kg-K, as well as k = cp/cv). You’ll find that the ideal gas
model is not too bad for water vapor under these conditions.
Solve the second one plz
Steam enters an adiabatic turbine at 8 MPa and 700 C with a...
Problem 4 – Entropy transfer in a control volume (18 pts) An
adiabatic reversible steam turbine steadily processes 2 kg/s of
steam at 5 MPa and 450°C, which is exhausted at 100 kPa and 100°C.
The turbine exhibits an isentropic efficiency of 0.85. a) Draw a
schematic representation of the system with all the energy
interactions involved. (2pts) b) Determine the h (kJ/kg) and s
(kJ/kg-K) at the inlet. (2 pts) c) Determine the actual h (kJ/kg)
and s (kJ/kg-K)...
Question A.1 A schematic of a gas turbine combined cycle generating plant is shown in Figure A1.1 on the next page. Exhaust gas from the gas turbine generator pass througha heat recovery steam generator (HRSG) which generates steam to drive a steam turbine generator. The following data is provided for the plant: Gas turbine 18.9:1 Pressure ratio Compressor air inlet temperature Turbine inlet temperature 15°C t 273 288 1350°C +273- 1623 588 kg/s T, T3 Exhaust gas mass flow Isentropic...
