Design a logic circuit that will allow the passage of an input signal only when control...

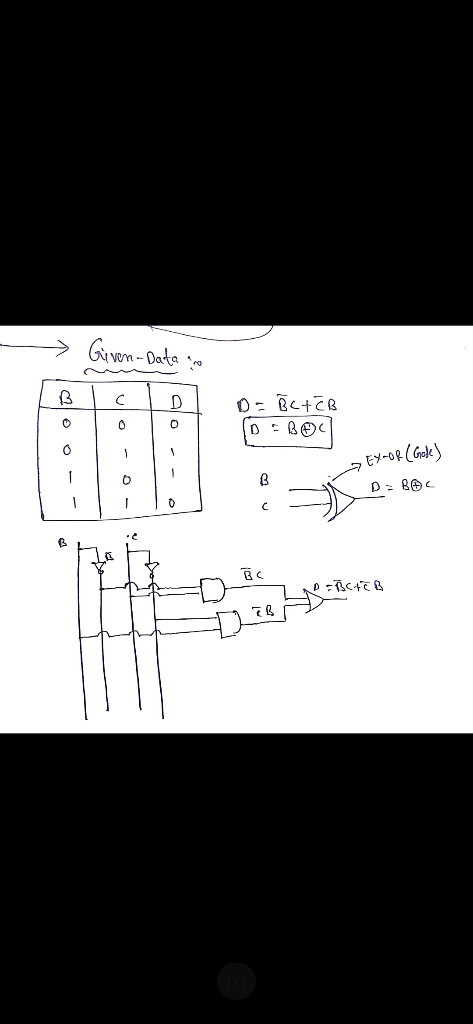

- Design a logic circuit that will allow the passage of an input signal only when control inputs B or C is LOW (use either B or C but not both are low) at the same time that D is HIGH. Otherwise, the output is LOW. Show the truth table and reduced expression for the output.
Homework Answers
Add Answer to:
Design a logic circuit that will allow the
passage of an input signal only when control...
(b) (i)Design a logic circuit that will allow a signal to pass to the output only...
(b) (i)Design a logic circuit that will allow a signal to pass to the output only when control inputs B and C are both HIGH; otherwise, the output will stay LOW. (4marks)CR (ii) Design a logic circuit that allows a signal to pass to the output only when one, but not both, of the control inputs are HIGH; otherwise, the output will stay HIGH. (4marks)CR (c) What is a universal gate? Give examples. Realize the basic gates with any one...
Title: Combinational Circuit Design and Simulation Objectives: a. b. c. Design combinational circuit Verify design with...
Title: Combinational Circuit Design and Simulation Objectives: a. b. c. Design combinational circuit Verify design with simulation Verify design with laboratory test data Materials Needed IBM Compatible computer, PSpice software, IC Chips (as needed), Data Switches, 4702 (1), LED (1). Pre-Lab: Problem Statement The four parameters in a chemical process control system to be monitored are temperature (T), pressure (P), flow (F), and level (L) of the fluid. The parameters are monitored by sensor circuits that produce a High logic...
For this problem, you are to design a simple combinational logic circuit The circuit is a...
For this problem, you are to design a simple combinational logic circuit The circuit is a 2- bit priority encoder with inputs I2 and I1 and outputs Z1 and Z0. The circuit behaves as follows: • If I2I1 = 00, then Z1Z0 = 00 (no active input) • If I2I1 = 01, then Z1Z0 = 01 (low-priority input, X1, is active) • If I2I1 = 1-, then Z1Z0 = 10 (high-priority input, X2, is active) Note that...
EE 210 Digital Logic Experiment 3 - Basic Combinational Logic: Adjacency Tester- Simulation only. In this...
EE 210 Digital Logic Experiment 3 - Basic Combinational Logic: Adjacency Tester- Simulation only. In this experiment, the student will design and simulate a minimal AND, OR and INVERTER circuit, with 4 input variables A, B, C, and D, and output F, that will produce a logic 1 output whenever two adjacent input variables are 1s. In this context, the A and D variables are also treated as being adjacent variables. See the partially filled-in Truth Table below, for more...
A multiplexer (MUX) is a logic function that combines several inputs and a control input
A multiplexer (MUX) is a logic function that combines several inputs and a control input, the output of which is one of the inputs selected by the control input. A2-1 MUX is shown below: Where X and Y are inputs and S is the control input. The Truth Table of the 2-1 MUX is given by: Show that the 2-1 MUX forms a complete set of logic functions by realizing a NOR gate using only 2-1 MUXes.
Part 1: Using PSPICE, simulate a CMOS logic circuit that produces the complement of function A+BC....
Part 1: Using PSPICE, simulate a CMOS logic circuit that produces the complement of function A+BC. (a) In a truth table, provide the voltage levels for high and low inputs and outputs (b) Using a DC sweep on one of the logic inputs, produce the voltage transfer curve of the circuit when switching from input high to input low. Determine the noise margins of the circuit. part 2: Modify the circuit from Part 1 to be a clocked CMOS circuit...
8. For this problem, you are to design a simple combinational logic circuit and then use...
8. For this problem, you are to design a simple combinational logic circuit and then use Logisim to simulate and test the circuit. The circuit is a 2- bit priority encoder with inputs X2 and X1 and outputs Y1 and Yo. The circuit behaves as follows: oIf X2X1 00, then Y1Yo 00 (no active input) If X2X1 01, then Y1Yo = 01 (low-priority input, X1, is active) If X2X1 1-, then Y1Y0 10 (high-priority input, X2, is active) Note that...
Acer Question Three Design a circuit with t wo inputs x & y representing the bits in a binary num...
acer Question Three Design a circuit with t wo inputs x & y representing the bits in a binary number and outputs a& b also representing bits in a binary number. When t output is reversed. When the input is 1 and 3, the output s O and 2, the Any carry forward is discarded a) Show your truth table b) Find and simplify the Boolean expression for the o utputs a & b. c) Draw one logic circuit to...
A logic circuit uses the inputs from three sensors (temperature, pressure, and humidity) to signal a...
A logic circuit uses the inputs from three sensors (temperature, pressure, and humidity) to signal a warning. The conditions under which a warning (logic 1) should be triggered are: 1. All three sensors' inputs are HIGH; 2. Temperature is LOW and Pressure is HIGH. 3. Pressure is LOW and Humidity is HIGH 4. Both Temperature and Pressure are HIGH, and Humidity is LOW. Let T, P, and H to indicate the three sensor inputs, respectively. What's the simplest logic design...
Design a circuit with three inputs (A, B, C) and two outputs (F1, F2). The first...
Design a circuit with three inputs (A, B, C) and two outputs (F1, F2). The first output F1 is logic 1 if the number of l’s in the binary number is less than the number of O's, otherwise F1 is logic 0. The second output F2 is 1 if the binary input is 2, 4, 5, 6,7 otherwise the second output F2 is logic 0. a. Derive the truth-table for F1 and F2 as a function of the 3 inputs....
Title: Combinational Circuit Design and Simulation Objectives: a. b. c. Design combinational circuit Verify design with simulation Verify design with laboratory test data Materials Needed IBM Compatible computer, PSpice software, IC Chips (as needed), Data Switches, 4702 (1), LED (1). Pre-Lab: Problem Statement The four parameters in a chemical process control system to be monitored are temperature (T), pressure (P), flow (F), and level (L) of the fluid. The parameters are monitored by sensor circuits that produce a High logic...
EE 210 Digital Logic Experiment 3 - Basic Combinational Logic: Adjacency Tester- Simulation only. In this experiment, the student will design and simulate a minimal AND, OR and INVERTER circuit, with 4 input variables A, B, C, and D, and output F, that will produce a logic 1 output whenever two adjacent input variables are 1s. In this context, the A and D variables are also treated as being adjacent variables. See the partially filled-in Truth Table below, for more...
8. For this problem, you are to design a simple combinational logic circuit and then use Logisim to simulate and test the circuit. The circuit is a 2- bit priority encoder with inputs X2 and X1 and outputs Y1 and Yo. The circuit behaves as follows: oIf X2X1 00, then Y1Yo 00 (no active input) If X2X1 01, then Y1Yo = 01 (low-priority input, X1, is active) If X2X1 1-, then Y1Y0 10 (high-priority input, X2, is active) Note that...
acer Question Three Design a circuit with t wo inputs x & y representing the bits in a binary number and outputs a& b also representing bits in a binary number. When t output is reversed. When the input is 1 and 3, the output s O and 2, the Any carry forward is discarded a) Show your truth table b) Find and simplify the Boolean expression for the o utputs a & b. c) Draw one logic circuit to...
A logic circuit uses the inputs from three sensors (temperature, pressure, and humidity) to signal a warning. The conditions under which a warning (logic 1) should be triggered are: 1. All three sensors' inputs are HIGH; 2. Temperature is LOW and Pressure is HIGH. 3. Pressure is LOW and Humidity is HIGH 4. Both Temperature and Pressure are HIGH, and Humidity is LOW. Let T, P, and H to indicate the three sensor inputs, respectively. What's the simplest logic design...
Design a circuit with three inputs (A, B, C) and two outputs (F1, F2). The first output F1 is logic 1 if the number of l’s in the binary number is less than the number of O's, otherwise F1 is logic 0. The second output F2 is 1 if the binary input is 2, 4, 5, 6,7 otherwise the second output F2 is logic 0. a. Derive the truth-table for F1 and F2 as a function of the 3 inputs....
