Is the following setup safe or unsafe according to the Banker's algorithm? Show your work and...

 Is the following setup safe or unsafe according to the Banker's algorithm?
   Show your work and explain your result.


        R1  R2  R3          R1  R2  R3

    P1  3   2   1       P1  2   1   0
    P2  2   3   1       P2  0   1   1
    P3  1   2   3       P3  0   0   1

    Claim matrix        Allocation matrix


       R1  R2  R3        R1  R2  R3
       3   3   3         1   1   1

    Resource vector     Available vector
engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

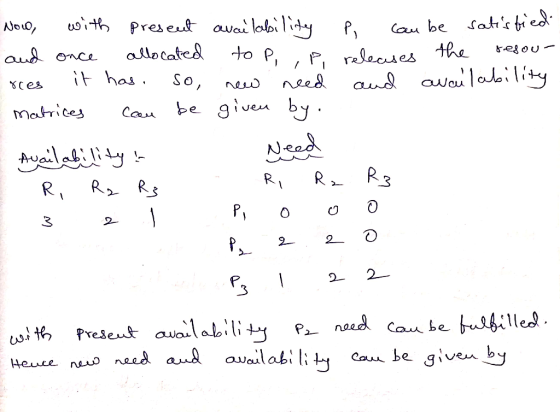

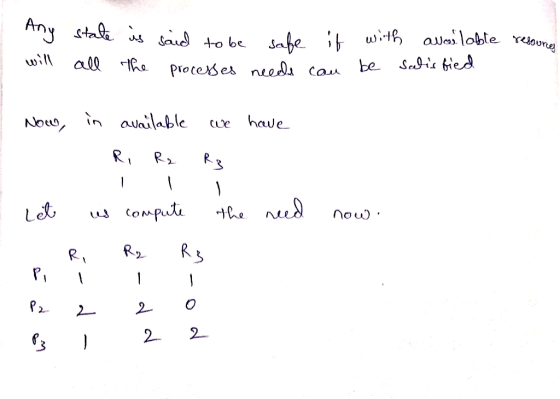

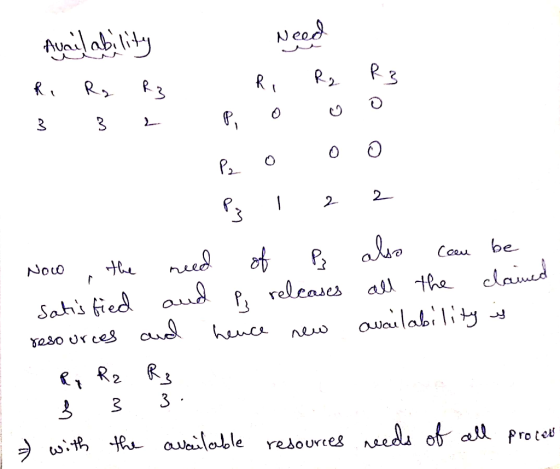

Answer #1

0 0
Add a comment
