I need a flow chart for my ITP 100 class soft ware design. Design a program...

I need a flow chart for my ITP 100 class soft ware design. Design a program that allows the user to enter 200 characters in an array of one dimension. Program should print a count for each one of the vowels (a, e, i, o, u.) user entered in the array.

engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

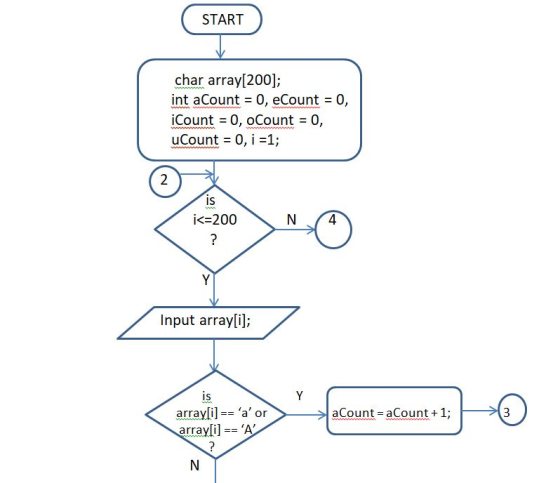

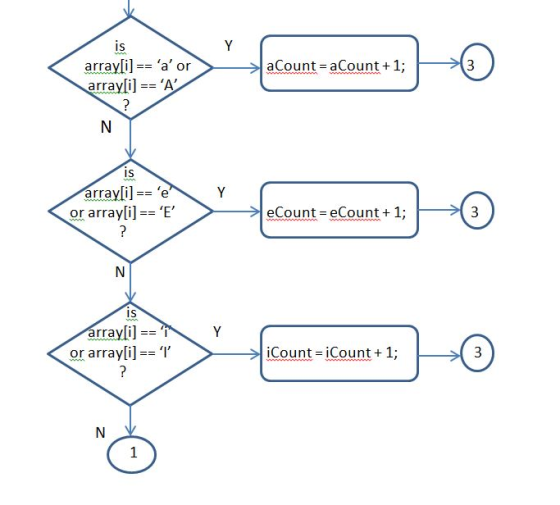

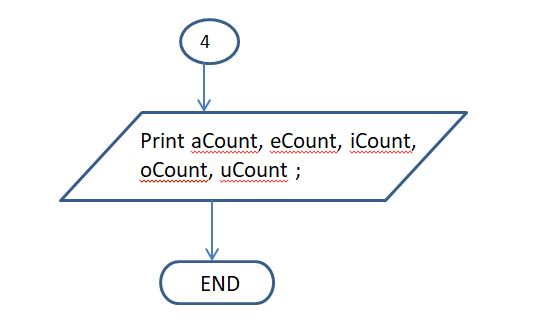

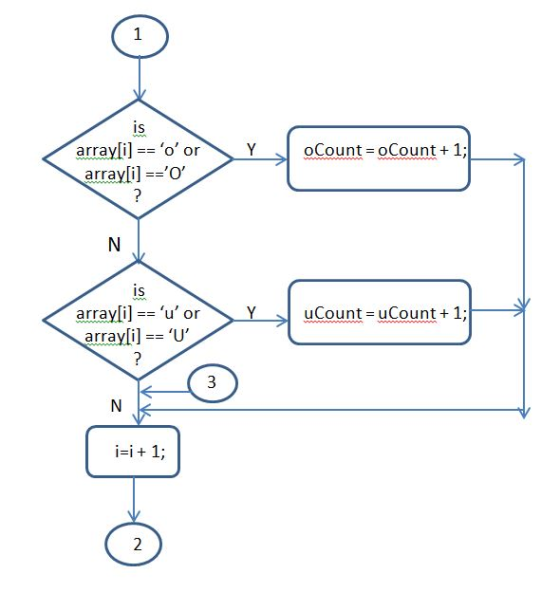

Flowchart to count and print the count for each of the vowels (a,e,i,o,u) in the user entered array of 200 characters:

0 0
Add a comment
