An extremely thin sheet of glass is being inspected at the camera store. Illuminated by white...

An extremely thin sheet of glass is being inspected at the camera store. Illuminated by white light at near-normal incidence, the film-like sheet is 0.395 µm thick and has air on both sides. If the glass has a refractive index of 1.66, what wavelength of visible light (in nm) does it reflect most strongly? (The wavelengths of visible light range from 400 to 700 nm.)

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

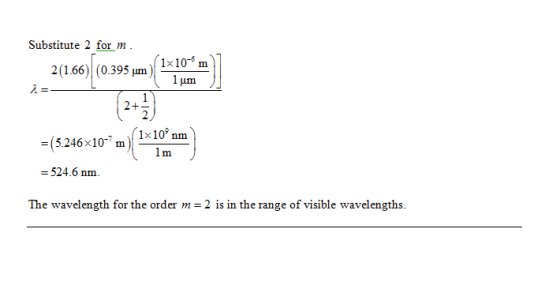

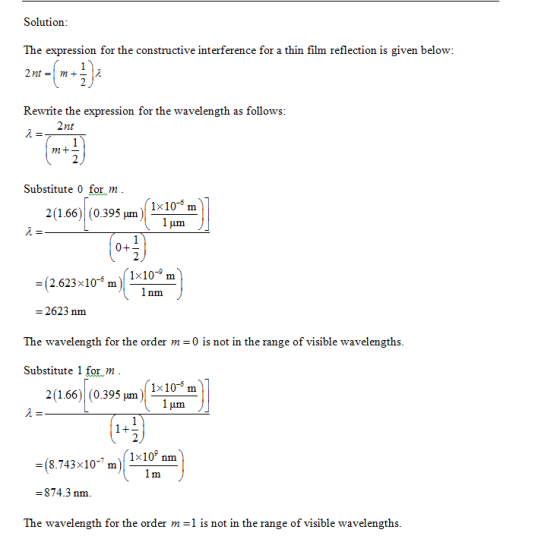

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
An extremely thin sheet of glass is being inspected at the camera store. Illuminated by white...
