Consider the signal x(t)=sinc(2000t) a. Find X(w), which is the fourier transform of x(t). b. Find...
Homework Answers
Add Answer to:

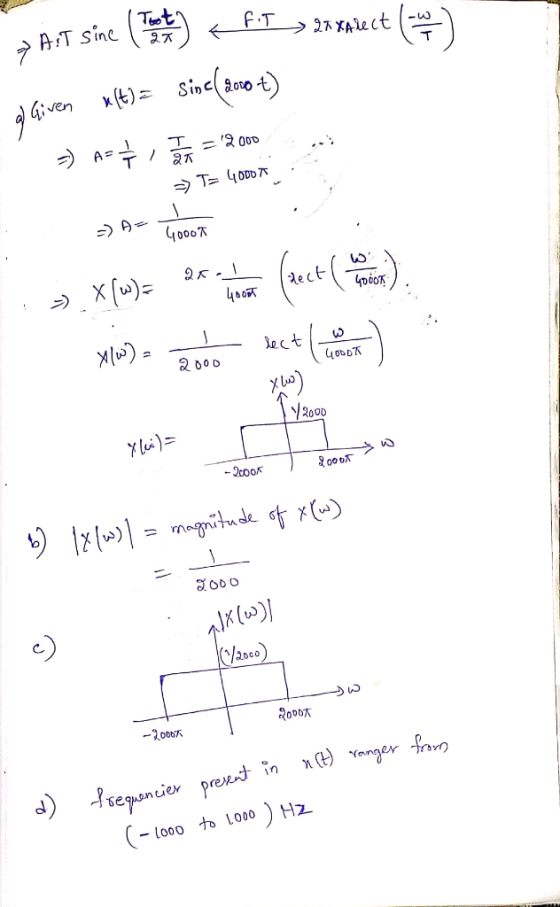

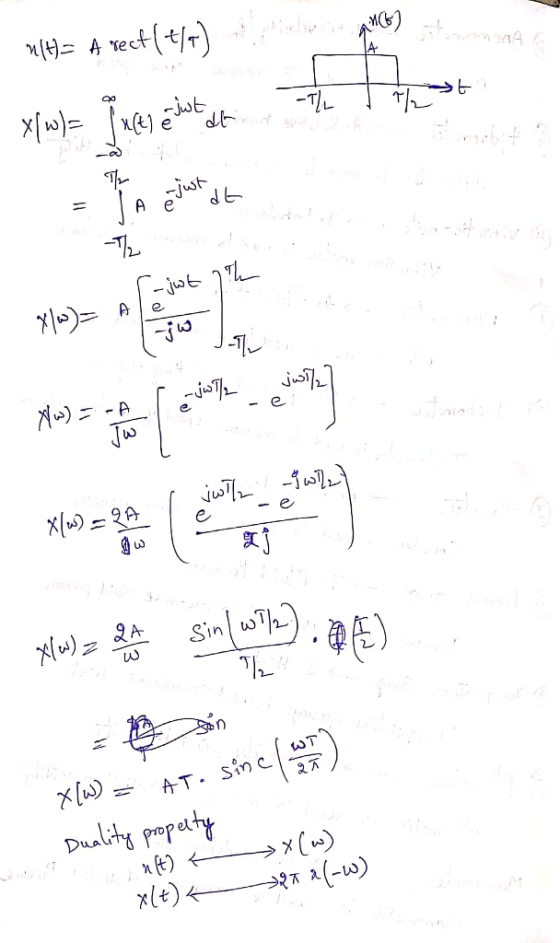

Consider the signal x(t)=sinc(2000t)
a. Find X(w), which is the fourier transform of x(t).
b. Find...
2) (Fourier Transforms Using Properties) - Given that the Fourier Transform of x(t) e Find the Fourier Transform of the following signals (using properties of the Fourier Transform). Sketch each sign...
2) (Fourier Transforms Using Properties) - Given that the Fourier Transform of x(t) e Find the Fourier Transform of the following signals (using properties of the Fourier Transform). Sketch each signal, and sketch its Fourier Transform magnitude and phase spectra, in addition to finding and expression for X(f): (a) x(t) = e-21,-I ! (b) x(t)-t e 21 1 (c) x(t)-sinc(rt ) * sinc(2π1) (convolution) [NOTE: X(f) is noLI i (1 + ㎡fy for part (c)]
2) (Fourier Transforms Using Properties)...
Please finish these questions. Thank you Given find the Fourier transform of the following: (a) e dt 2T(2 1) 4 cos (2t) (Using properties of Fourier Transform to find) a) Suppose a signal m(t) is giv...
Please finish these questions. Thank you
Given find the Fourier transform of the following: (a) e dt 2T(2 1) 4 cos (2t) (Using properties of Fourier Transform to find) a) Suppose a signal m(t) is given by m()-1+sin(2 fm) where fm-10 Hz. Sketch the signal m(t) in time domain b) Find the Fourier transform M(jo) of m(t) and sketch the magnitude of M(jo) c) If m(t) is amplitude modulated with a carrier signal by x(t)-m(t)cos(27r f,1) (where fe-1000 Hz), sketch...
7. The signal x(t) shown below is modulated (multiplied) by cos(10nt). Find the Fourier transform of...
7. The signal x(t) shown below is modulated (multiplied) by cos(10nt). Find the Fourier transform of x(t)cos(10nt) and neatly sketch the magnitude? Useful transform pairs. rect (9) = t sinc (); «(t)cos (Wgt) }(x(w+wo) + X(w – wo)); «(t – to) ~X(w)e-juto (10 points) x(+) 1 t
Let x(t) denote a signal and X(f) denote the corresponding Fourier transform which is given in th...
Let x(t) denote a signal and X(f) denote the corresponding Fourier transform which is given in the graph below. Given this graph, sketch the Fourier transforms of the following signals: -2 2 a, x b.x) Cos(8m) c. x(t) sinc (t) 2/
Let x(t) denote a signal and X(f) denote the corresponding Fourier transform which is given in the graph below. Given this graph, sketch the Fourier transforms of the following signals: -2 2 a, x b.x) Cos(8m) c. x(t) sinc...
Consider the complex-valued signal c(t) with Fourier transform as shown in the figure. Keep in mind...
Consider the complex-valued signal c(t) with Fourier transform as shown in the figure. Keep in mind that there are no symmetry properties this signal satisfies in the fre- quency domain. In particular, the Fourier transform is zero for negative frequencies. Suppose we impulse-train sample o(t) at the rate of 500 samples/second. FOURIER TRANSFORM 200 600 800 1000 400 FREQUENCY (Hz.) (a) Sketch the Fourier transform of the impulse-train sampled signal in the range of frequencies from -1000 Hz. to 1000...
1.12. The Fourier transform of a signal x(t) is defined by X(f) = sincf, where the sinc func- tion is as defined in Equ...
1.12. The Fourier transform of a signal x(t) is defined by X(f) = sincf, where the sinc func- tion is as defined in Equation (1.39). Find the autocorrelation function, R.(T), of the signal x(t).
1.12. The Fourier transform of a signal x(t) is defined by X(f) = sincf, where the sinc func- tion is as defined in Equation (1.39). Find the autocorrelation function, R.(T), of the signal x(t).
1. Consider the complex-valued signal r(t) with Fourier transform as shown in the figure. Keep in...
1. Consider the complex-valued signal r(t) with Fourier transform as shown in the figure. Keep in mind that there are no symmetry properties this signal satisfies in the fre- quency domain. In particular, the Fourier transform is zero for negative frequencies Suppose we impulse-train sample x(t) at the rate of 500 samples/second. 200 400 600 800 1000 FREQUENCY (Hz.) (a) Sketch the Fourier transform of the impulse-train sampled signal in the range of frequencies from -1000 Hz. to 1000 Hz....
(a) Find the Fourier transform X(w) for the following signal: (10 points) a(t) = ostsi 0,...
(a) Find the Fourier transform X(w) for the following signal: (10 points) a(t) = ostsi 0, otherwise (b) Determine the magnitude spectrum and phase spectrum for X(w). (10 points)
NB: In this Webwork problem, take sinc(t) = sin(t)/t (in contrast, in Signal Processing literature, sinc(t)...
NB: In this Webwork problem, take sinc(t) = sin(t)/t (in contrast, in Signal Processing literature, sinc(t) = sin(mt)/at). Find the Fourier transform Xı(w), X2(w), and X3(W) of the signals xi(t), x2(t), and x3(t), using the Fourier transform pair X(t) = u(t + 1) – ult – 1) + X(W) = 2 sinc(w). Then select the Fourier transform property you used for each signal, from the corresponding drop-down menu. In your answers, enter “w” for omega. a) x1(t) = -3u(t +...
Using the convolution property of Fourier Transform to find the following convolution: sinc (t) * sinc...
Using the convolution property of Fourier Transform to find the following convolution: sinc (t) * sinc (4t): [Hint: sinc (t) ön rect(w/2)] sinc(t)sinc(2t) 8 TT 2 sinc(t) п sinc (2t) п sinc (4t) 4
2) (Fourier Transforms Using Properties) - Given that the Fourier Transform of x(t) e Find the Fourier Transform of the following signals (using properties of the Fourier Transform). Sketch each signal, and sketch its Fourier Transform magnitude and phase spectra, in addition to finding and expression for X(f): (a) x(t) = e-21,-I ! (b) x(t)-t e 21 1 (c) x(t)-sinc(rt ) * sinc(2π1) (convolution) [NOTE: X(f) is noLI i (1 + ㎡fy for part (c)]
2) (Fourier Transforms Using Properties)...
Please finish these questions. Thank you
Given find the Fourier transform of the following: (a) e dt 2T(2 1) 4 cos (2t) (Using properties of Fourier Transform to find) a) Suppose a signal m(t) is given by m()-1+sin(2 fm) where fm-10 Hz. Sketch the signal m(t) in time domain b) Find the Fourier transform M(jo) of m(t) and sketch the magnitude of M(jo) c) If m(t) is amplitude modulated with a carrier signal by x(t)-m(t)cos(27r f,1) (where fe-1000 Hz), sketch...
7. The signal x(t) shown below is modulated (multiplied) by cos(10nt). Find the Fourier transform of x(t)cos(10nt) and neatly sketch the magnitude? Useful transform pairs. rect (9) = t sinc (); «(t)cos (Wgt) }(x(w+wo) + X(w – wo)); «(t – to) ~X(w)e-juto (10 points) x(+) 1 t
Let x(t) denote a signal and X(f) denote the corresponding Fourier transform which is given in the graph below. Given this graph, sketch the Fourier transforms of the following signals: -2 2 a, x b.x) Cos(8m) c. x(t) sinc (t) 2/
Let x(t) denote a signal and X(f) denote the corresponding Fourier transform which is given in the graph below. Given this graph, sketch the Fourier transforms of the following signals: -2 2 a, x b.x) Cos(8m) c. x(t) sinc...
Consider the complex-valued signal c(t) with Fourier transform as shown in the figure. Keep in mind that there are no symmetry properties this signal satisfies in the fre- quency domain. In particular, the Fourier transform is zero for negative frequencies. Suppose we impulse-train sample o(t) at the rate of 500 samples/second. FOURIER TRANSFORM 200 600 800 1000 400 FREQUENCY (Hz.) (a) Sketch the Fourier transform of the impulse-train sampled signal in the range of frequencies from -1000 Hz. to 1000...
1.12. The Fourier transform of a signal x(t) is defined by X(f) = sincf, where the sinc func- tion is as defined in Equation (1.39). Find the autocorrelation function, R.(T), of the signal x(t).
1.12. The Fourier transform of a signal x(t) is defined by X(f) = sincf, where the sinc func- tion is as defined in Equation (1.39). Find the autocorrelation function, R.(T), of the signal x(t).
1. Consider the complex-valued signal r(t) with Fourier transform as shown in the figure. Keep in mind that there are no symmetry properties this signal satisfies in the fre- quency domain. In particular, the Fourier transform is zero for negative frequencies Suppose we impulse-train sample x(t) at the rate of 500 samples/second. 200 400 600 800 1000 FREQUENCY (Hz.) (a) Sketch the Fourier transform of the impulse-train sampled signal in the range of frequencies from -1000 Hz. to 1000 Hz....
(a) Find the Fourier transform X(w) for the following signal: (10 points) a(t) = ostsi 0, otherwise (b) Determine the magnitude spectrum and phase spectrum for X(w). (10 points)
NB: In this Webwork problem, take sinc(t) = sin(t)/t (in contrast, in Signal Processing literature, sinc(t) = sin(mt)/at). Find the Fourier transform Xı(w), X2(w), and X3(W) of the signals xi(t), x2(t), and x3(t), using the Fourier transform pair X(t) = u(t + 1) – ult – 1) + X(W) = 2 sinc(w). Then select the Fourier transform property you used for each signal, from the corresponding drop-down menu. In your answers, enter “w” for omega. a) x1(t) = -3u(t +...
Using the convolution property of Fourier Transform to find the following convolution: sinc (t) * sinc (4t): [Hint: sinc (t) ön rect(w/2)] sinc(t)sinc(2t) 8 TT 2 sinc(t) п sinc (2t) п sinc (4t) 4
