6. A particle, starting from rest, falls from the top of a fixed smooth vertical ring...

Question

Question

6. A particle, starting from rest, falls from the top of a fixed smooth vertical ring of radius R. At what point does the particle leave the ring?

science physics

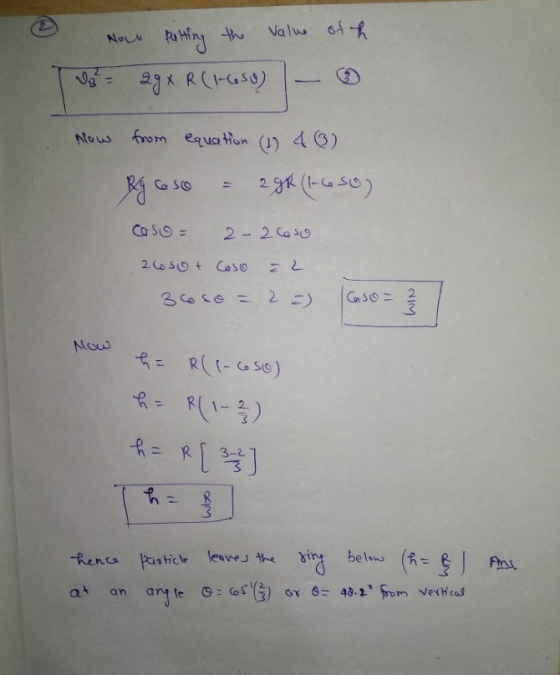

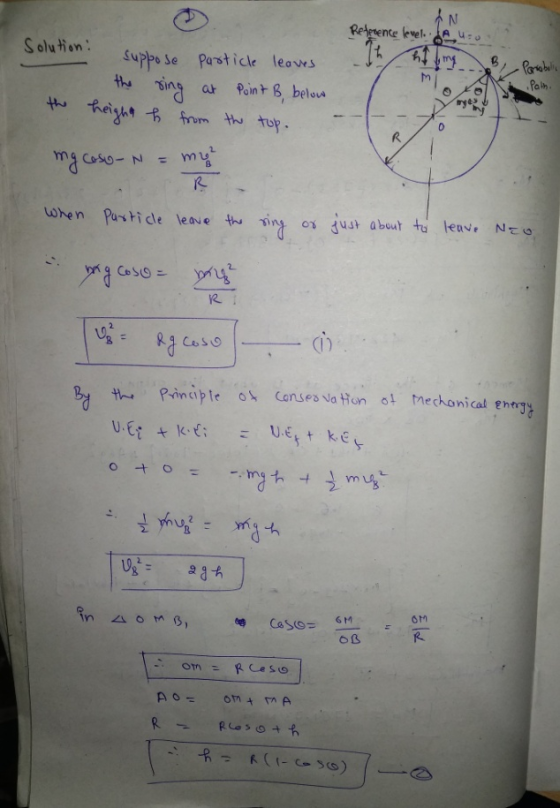

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

A particle of mass m starts at rest on top of a smooth fixed hemisphere of...

A particle of mass m starts at rest on top of a smooth fixed hemisphere of radius R. Find the force of constant, and determine the angle at which the particle leaves the hemisphere.
2. A small box of mass m is kept on a fixed, smooth sphere of radius...

2. A small box of mass m is kept on a fixed, smooth sphere of radius R at a position where the radius through the box makes an angle of 30° with the vertical. The box is released from the position. (a) What is the force exerted by the sphere on the box just after the release? (b) Find the distance travelled by the box before it leaves contact with the sphere. 3. A particle is suspended from a fixed...
A particle of mass m slides down a fixed, frictionless sphere of radius R. starting from...

A particle of mass m slides down a fixed, frictionless sphere of radius R. starting from rest at the top . The centripetal acceleration of the mass ii. The tangential acceleration of the mass degrees b. Determine the value of 8 at which the particle leaves the sphere.

5. A small mass m starts from rest and slides from the top of a fixed...

5. A small mass m starts from rest and slides from the top of a fixed sphere of radius r. (a) If the sphere is frictionless, at what angle θ from the vertical does the mass leave the surface? (b) Suppose there is friction between the mass and the sphere with friction coefficient =0.1. What is the minimum angle θmin at which the mass will start to slide along the sphere? (c) The mass is now placed just past this...
3. An object freely falls down starting at rest from a vertical eliff and gains the...

3. An object freely falls down starting at rest from a vertical eliff and gains the final speed 30 m/s. Find time of free fall of this object. Find height of the cliff.
C. Bar magnets are attached to rings that encircle and slide down two very smooth vertical...

C. Bar magnets are attached to rings that encircle and slide down two very smooth vertical rods. One rod is why? copper; the other is glass. When released from the top of the rods, which (ring + magnet) falls slower and Ring Magnet Glass rod Copper rod

The axis of a smooth fixed ciular cylinder of radius R is horizontal. A particle of mass m is att...

The axis of a smooth fixed ciular cylinder of radius R is horizontal. A particle of mass m is attached to a model string and is initially at rest level with the cre of the cylinder with the string draped over the top, whee t slids without frictian as if on a model pulley, s shown in the diagram below. A constant force P of magnitude P pulls the model string downwards. Let 0 denote the angle subtended at the...
A ball of mass m = 2.50 kg, starting from rest, falls a vertical distance h...

A ball of mass m = 2.50 kg, starting from rest, falls a vertical distance h = 55.0 cm before striking a vertically mounted spring, which is then compressed a distance y = 16.0 cm. a) Using conservation of energy, derive the algebraic expression (using symbols) for the spring constant using the provided information. Clearly indicate your chosen initial and final states either on the diagram or in words. b) Determine the spring constant using your algebraic expression from part...
A particle slides down a fixed rough plane of coefficient of friction u. If the plane...

A particle slides down a fixed rough plane of coefficient of friction u. If the plane is inclined at angle a to the horizontal and the body falls from rest at a vertical height h at the top of the plane to acquire a speed V at the base of the plane find u.
