A force of 14 N can be applied to one end of a 30.1 cm length...

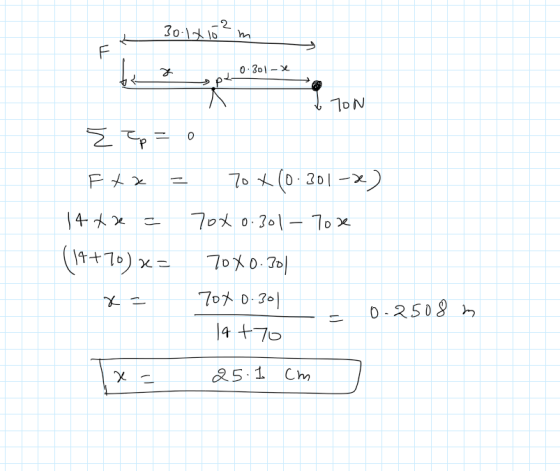

A force of 14 N can be applied to one end of a 30.1 cm length pry-bar. The operator is required to lift 70 N of load. Where should the pivot be located to lift with this weight, in centimeters, as measured from the operator's end?
Homework Answers
Good Luck !! for exam
let me know in a comment if there is any problem or doubts please
wait for me to respond.
