what is length of copper wire 1/16 in . in a diameter is required to construct...

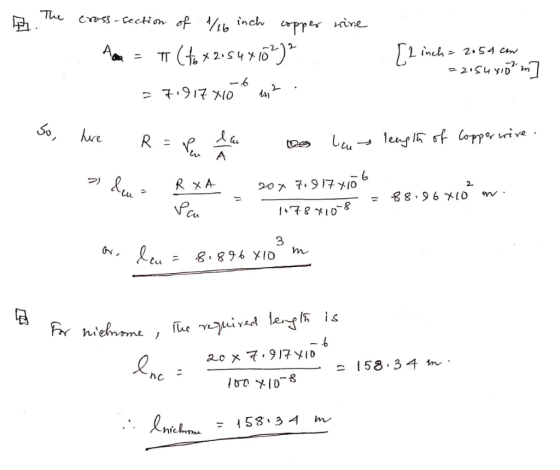

what is length of copper wire 1/16 in . in a diameter is required to construct a 20-omego resistor at 20 degree C? What length of nichrome wire is needed?
Copper: p=1.78x10^-8 omega/m
nichrome: p=100x10^-8 omega/m
