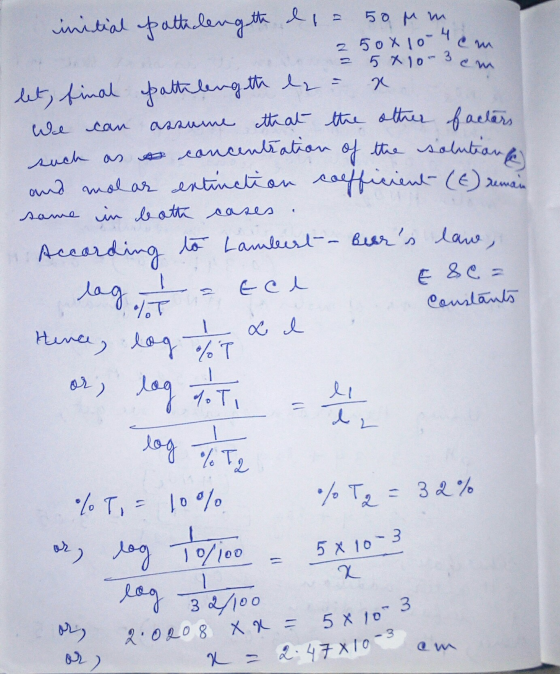

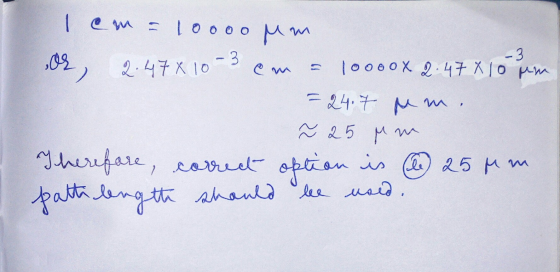

An IR transmittance spectrum is measured using a sample cell with a path length of 50...
An IR transmittance spectrum is measured using a sample cell with a path length of 50 μm. For a sample
measured at 1700 cm-1 the %T = 10%. If the %T at 1700 cm-1 needs to be increased to 32%, what path length
should be used?
a. 16 μm
b. 25 μm
c. 100 μm
d. 160 μm
Homework Answers
Add Answer to:
An IR transmittance spectrum is measured using a sample cell
with a path length of 50...
