Diesel engines with the following specifications; 8 cylinder, 400 x 600 mm, four stroke cycle, fuel...

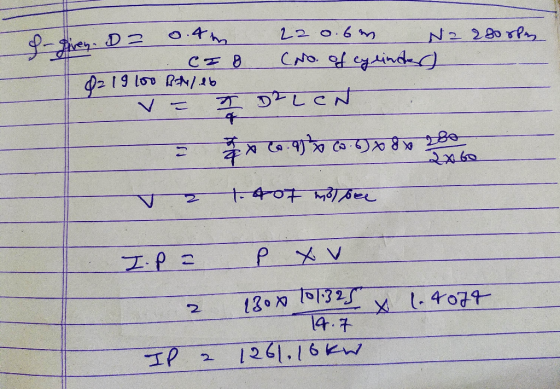

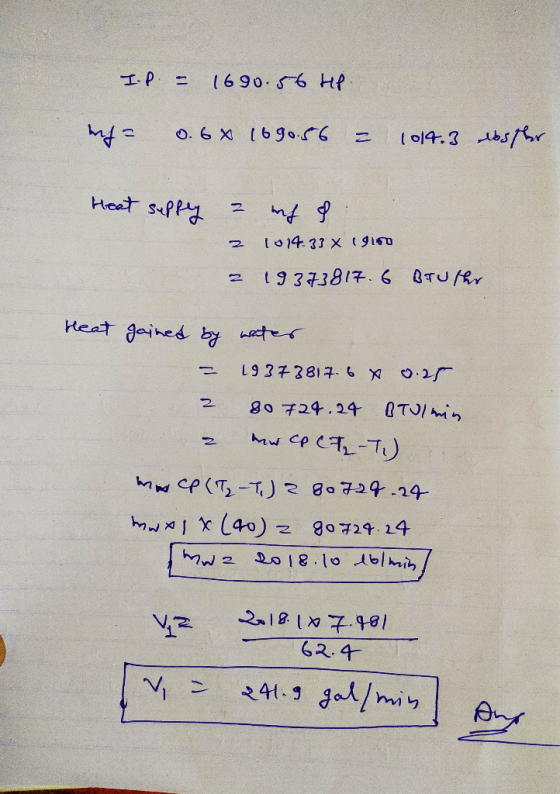

Diesel engines with the following specifications; 8 cylinder, 400 x 600 mm, four stroke cycle, fuel
consumption is 0.6 lbs / HP-Hr based on 19,000 BTU/Lb. Engine Speed is 280 rpm with an indicated
MEP of 130 psi. If the jacket water carries away of an estimated 25% of the heat supplied, Calculate
the capacity in GPM required if the allowable rise is 40oF.

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
Diesel engines with the following specifications; 8 cylinder, 400 x 600 mm, four stroke cycle, fuel...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Air at 14.7 psia, 40 oF enters an ideal four-stroke Diesel cycle with a compression ratio...

    Air at 14.7 psia, 40 oF enters an ideal four-stroke Diesel cycle with a compression ratio of 20 and a displacement of 300 in3. It runs at 2100 RPM and the maximum temperature is 3300 oF. The fuel has an energy content of 19,360 Btu/lbm. a. The power output of the engine in Hp b. The cycle thermal efficiency c. The fuel consumption rate in lbm/hr

  • Please answer all PROBLEM 1 A three-litre four-stroke diesel engine develops 12 kW per m3 of...

    Please answer all PROBLEM 1 A three-litre four-stroke diesel engine develops 12 kW per m3 of free air inducted per minute. The volumetric efficiency is 82 % at 3600 rpm referred to atmospheric condition of 1 bar and 27 oC. A rotary compressor which is mechanically coupled to the engine is used to supercharge the engine. The pressure ratio and the isentropic efficiency of the compressor are 1.6 and 75 % respectively. Calculate the percentage increase in brake power due...
