At a certain location, Earth has a magnetic field of 0.60 ✕ 10−4 T, pointing 75°...
At a certain location, Earth has a magnetic field of 0.60 ✕ 10−4 T, pointing 75° below the horizontal in a north-south plane. A 13.4 m long straight wire carries a 14 A current.
(a) If the current is directed horizontally toward the east, what are the magnitude and direction of the magnetic force on the wire?
(b) What are the magnitude and direction of the force if the current is directed vertically upward?
Homework Answers
Answers: a) Magnitude = 11.25 x 10^-3 N Direction: North-South (15 degrees above horizontal)
b) Magnitude = 2.91 x 10^-3 N Direction: West-East

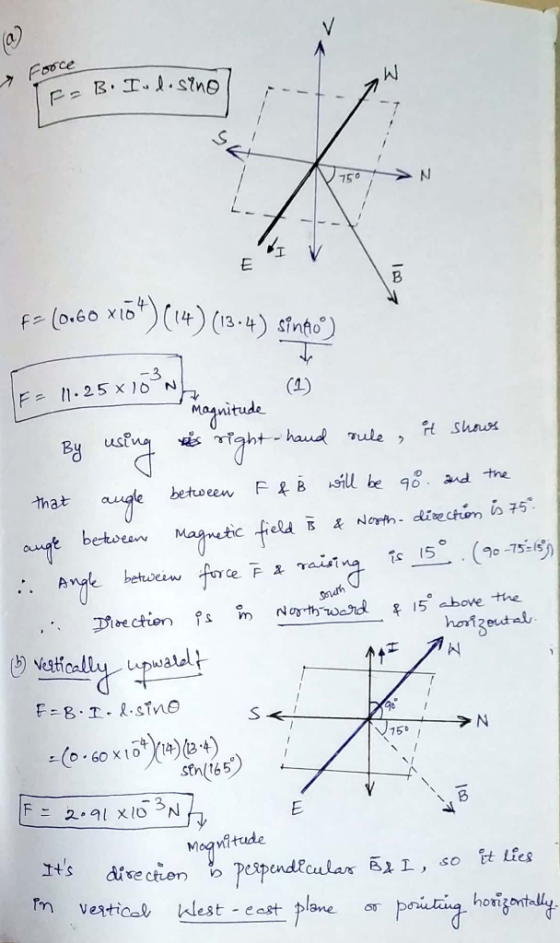

Explanation:
Hope this helps.!
Please rate or Upvote.
Thank you.
