1- Develop a simulink model for a square-wave inverter connected to a dc source of 96...

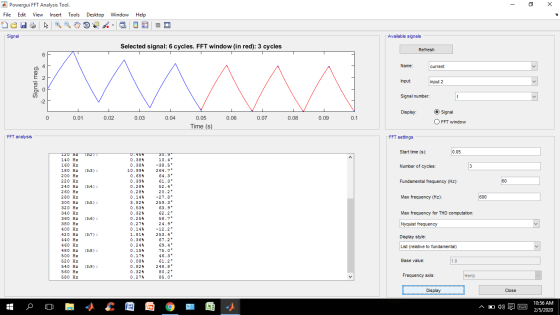

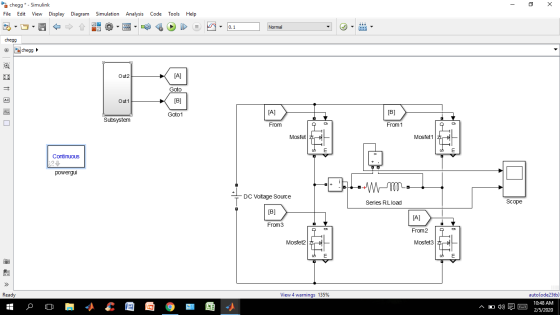

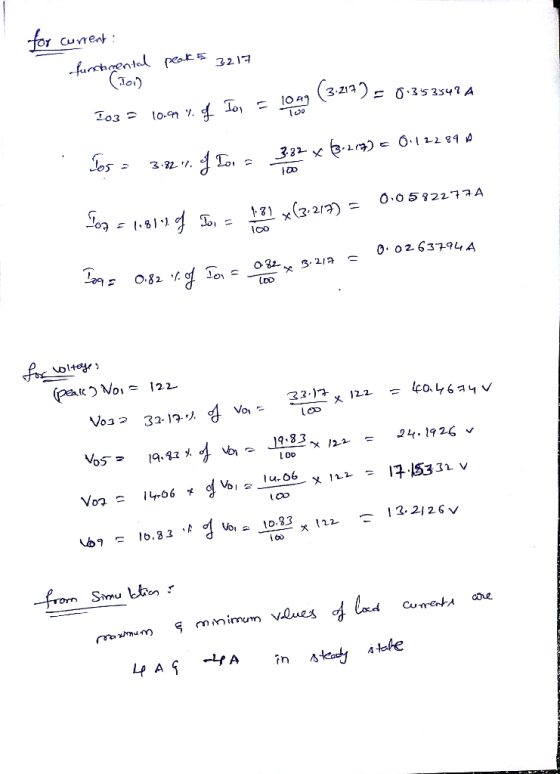

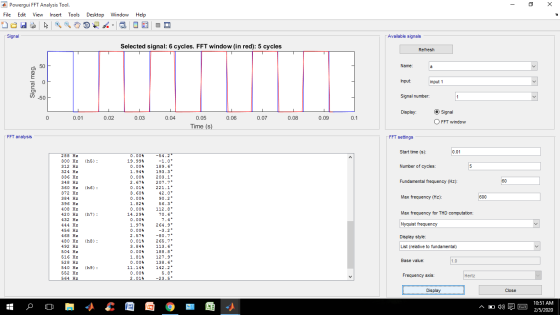

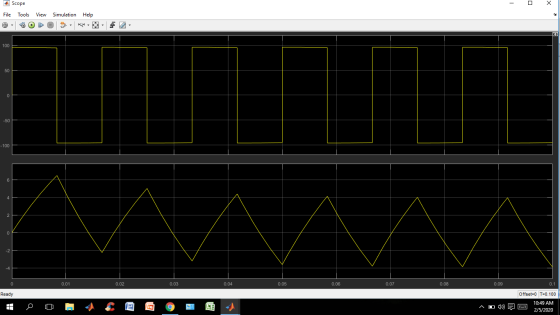

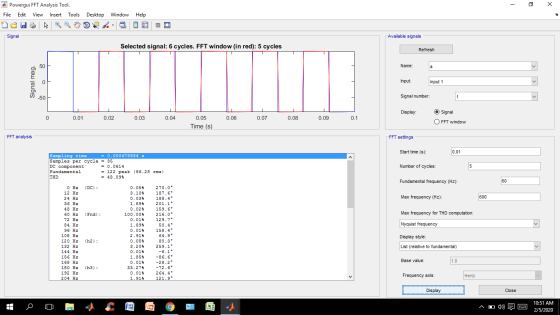

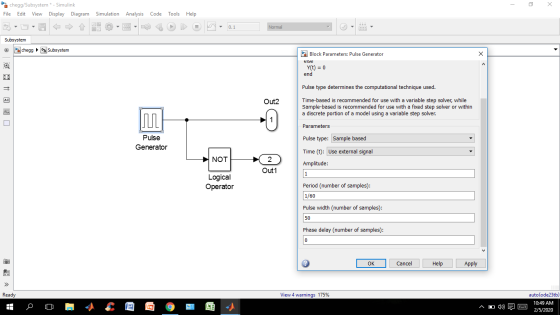

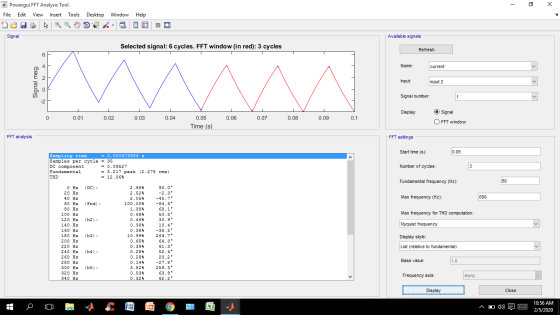

1- Develop a simulink model for a square-wave inverter connected to a dc source of 96 V and an output frequency of 60 Hz. The load is a series RL load with R = 5 Ohm and L = 100 mH. use the simulation model to Determine (a) Minimum and maximum Current (c) Amplitudes of the Fourier series terms (1,3,5,7,9) for the square wave load voltage (d) Amplitudes of the Fourier series terms (1,3,5,7,9) for the load current.
Your report must include screen capture of the Simulink model, scopes, displays in addition to solver and step time configuration.
Homework Answers
Add Answer to:
1- Develop a simulink model for a square-wave inverter connected
to a dc source of 96...
Q1‐ A single‐phase half‐bridge inverter is used to power a purely inductive load of 100mH. The inverter is supplied from a dc source of 300V, and is operated at a frequency of 50Hz using square‐wave m...
Q1‐ A single‐phase half‐bridge inverter is used to power a
purely inductive load of 100mH. The inverter is supplied from a dc
source of 300V, and is operated at a frequency of 50Hz using
square‐wave modulation.
a) Determine the values of the fundamental, 3rd, 5th and 7th
harmonic load current components
b) Determine the load current THD value.
Q1- A single-phase half-bridge inverter is used to power a purely inductive load of 100mH. The inverter is supplied from a de...
D Question 2 10 pts A three phase full-bridge rectifier draws 12-kW from a power supply that has 150-V phase-to-phase voltage. The power factor is 0.77. What is the maximum (peak) value of the cur...
D Question 2 10 pts A three phase full-bridge rectifier draws 12-kW from a power supply that has 150-V phase-to-phase voltage. The power factor is 0.77. What is the maximum (peak) value of the current delivered by the supply? 10 pts DI Question 3 A full bridge, square wave inverter supplies an RL load with R-7-Ohm and L-58-mH. The DC voltage is 90-V and the output waveform frequency is 60-Hz. What is the magnitude of the third harmonic of the...
Single phase square to supply an ac load from dc power supply with source voltage VS...
Single phase square to supply an ac load from dc power supply with source voltage VS = 20 volts wave full bridge inverter will be designed. The load resistance is R = 24 ohms and L = 240 milliHenry. Exit the frequency of its voltage will be 25 Hz. With the minimum value of the load current at t = 12ms and t = 30ms Calculate the values.
Prelab Preparation: For the RC circuit shown in Figure 1, derive the modeling equation relating the output volta ge...
Prelab Preparation: For the RC circuit shown in Figure 1, derive the modeling equation relating the output volta ge Vout to the input voltage vin. What is the transfer function? What is the time constant of the system? Vout Figure 1: RC Circuit What is the analytical step response solution in terms of vin, Rand C? For assumed values of R 1 K, and C 6.8 uF, perform a simulation using Matlab/Simulink assuming an input square wave signal of 5Vpp,...
A purely inductive, balanced, Y-connected load having an inductance L per phase, is fed by the three-phase half-bridge inverter shown below in Figure Q5. The inverter is operated in the square-wave mo...
A purely inductive, balanced, Y-connected load having an
inductance L per phase, is fed by the three-phase half-bridge
inverter shown below in Figure Q5. The inverter is operated in the
square-wave mode (meaning that the pole voltages are square waves)
with a frequency fs.
A purely inductive, balanced, Y-connected load having an inductance L per phase, is fed biy the three-phase half-bridge inverter shown below in Figure Q5. The inverter is operated in the square-wave mode (meaning that the pole...
1. Consider the single-phase VSI inverter shown below dc VR(t) iz(t) a) If your input voltage Vdc...
1. Consider the single-phase VSI inverter shown below dc VR(t) iz(t) a) If your input voltage Vdc - 100V2 V and switching frequency is 60 Hz with zero delay angle. Then, sketch the square wave output. Mark the peak values [10 marks] b) Sketch the fundamental output on the top of the above waveform. Mark the peak value По marksl c) The above A VSI is used to create a square wave output with 100v2 V at 60 Hz. This...
1. A half wave rectifier is supplied from a 100Vms source. For a load consisting of a 60V battery fed through a 2Ω resistor as shown in Fig. I 2Ω D+ + VR() bat Fig. 1 For the rectifier shown in Fig....
1. A half wave rectifier is supplied from a 100Vms source. For a load consisting of a 60V battery fed through a 2Ω resistor as shown in Fig. I 2Ω D+ + VR() bat Fig. 1 For the rectifier shown in Fig. 1, determine (a) a time varying expression for the current flowing into the battery 70.7sine -30 25.1 154.9) (b) (c) the average power flow into the battery (574W) the average power dissipation in the resistor (617W) A half...
You can use any software of your choice Begin by connecting the waveform generator to the...
You can use any software of your choice
Begin by connecting the waveform generator to the series combination of a 0.2uF capacitor (use a decade capacitor box) and a 1 ks resistor (use a decade resistor box). Generate a 500 Hz, 8 Vp- p square wave with a 4 Volt offset and observe this waveform on the oscilloscope's Channel 1. Monitor the voltage drop across the capacitor on Channel 2. Figure 1 shows the schematic for the RC circuit 1k...
Q1‐ A single‐phase half‐bridge inverter is used to power a
purely inductive load of 100mH. The inverter is supplied from a dc
source of 300V, and is operated at a frequency of 50Hz using
square‐wave modulation.
a) Determine the values of the fundamental, 3rd, 5th and 7th
harmonic load current components
b) Determine the load current THD value.
Q1- A single-phase half-bridge inverter is used to power a purely inductive load of 100mH. The inverter is supplied from a de...
D Question 2 10 pts A three phase full-bridge rectifier draws 12-kW from a power supply that has 150-V phase-to-phase voltage. The power factor is 0.77. What is the maximum (peak) value of the current delivered by the supply? 10 pts DI Question 3 A full bridge, square wave inverter supplies an RL load with R-7-Ohm and L-58-mH. The DC voltage is 90-V and the output waveform frequency is 60-Hz. What is the magnitude of the third harmonic of the...
Prelab Preparation: For the RC circuit shown in Figure 1, derive the modeling equation relating the output volta ge Vout to the input voltage vin. What is the transfer function? What is the time constant of the system? Vout Figure 1: RC Circuit What is the analytical step response solution in terms of vin, Rand C? For assumed values of R 1 K, and C 6.8 uF, perform a simulation using Matlab/Simulink assuming an input square wave signal of 5Vpp,...
A purely inductive, balanced, Y-connected load having an
inductance L per phase, is fed by the three-phase half-bridge
inverter shown below in Figure Q5. The inverter is operated in the
square-wave mode (meaning that the pole voltages are square waves)
with a frequency fs.
A purely inductive, balanced, Y-connected load having an inductance L per phase, is fed biy the three-phase half-bridge inverter shown below in Figure Q5. The inverter is operated in the square-wave mode (meaning that the pole...
1. Consider the single-phase VSI inverter shown below dc VR(t) iz(t) a) If your input voltage Vdc - 100V2 V and switching frequency is 60 Hz with zero delay angle. Then, sketch the square wave output. Mark the peak values [10 marks] b) Sketch the fundamental output on the top of the above waveform. Mark the peak value По marksl c) The above A VSI is used to create a square wave output with 100v2 V at 60 Hz. This...
1. A half wave rectifier is supplied from a 100Vms source. For a load consisting of a 60V battery fed through a 2Ω resistor as shown in Fig. I 2Ω D+ + VR() bat Fig. 1 For the rectifier shown in Fig. 1, determine (a) a time varying expression for the current flowing into the battery 70.7sine -30 25.1 154.9) (b) (c) the average power flow into the battery (574W) the average power dissipation in the resistor (617W) A half...
You can use any software of your choice
Begin by connecting the waveform generator to the series combination of a 0.2uF capacitor (use a decade capacitor box) and a 1 ks resistor (use a decade resistor box). Generate a 500 Hz, 8 Vp- p square wave with a 4 Volt offset and observe this waveform on the oscilloscope's Channel 1. Monitor the voltage drop across the capacitor on Channel 2. Figure 1 shows the schematic for the RC circuit 1k...
