A wire coil of 25 turns has a cross-sectional area of 10 cm2. The coil is...

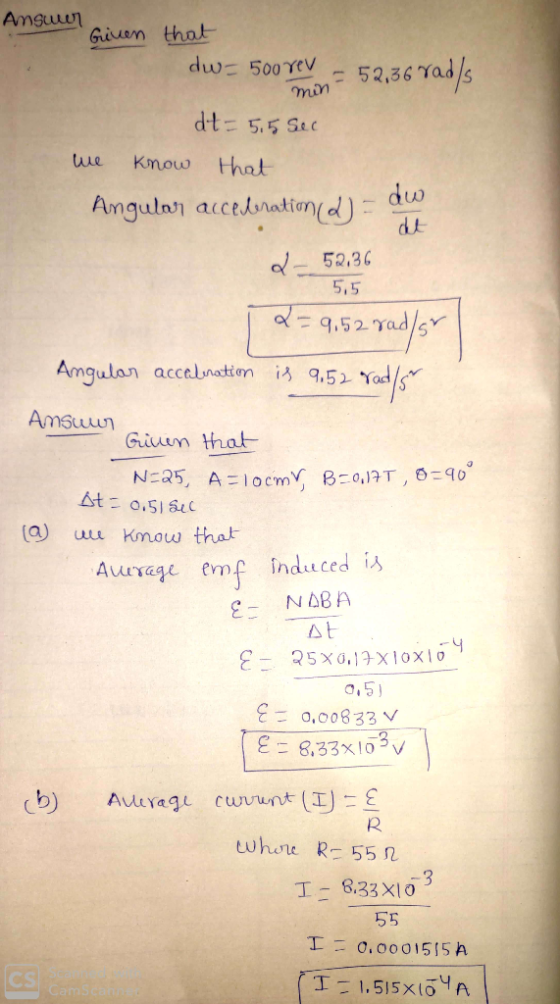

A wire coil of 25 turns has a cross-sectional area of 10 cm2. The coil is placed in a uniform field of a large magnet with B = 0.17 T. The coil is suddenly rotated 90 o from an orientation parallel to the field to one perpendicular to the field. The time to flip the coil is 0.51 s. What is the magnitude of the average emf produced? What will be the average current produced if the circuit of the coil is closed and the resistance is 55 ohm?
Homework Answers
Add Answer to:
A wire coil of 25 turns has a cross-sectional area of 10 cm2.
The coil is...
coil with 22 turns sits in a magnetic field. The cross-sectional area of the coil is...
coil with 22 turns sits in a magnetic field. The cross-sectional area of the coil is 9.6 cm2. If the magnetic field uniformly reduces from 11 T to 3.0 T in 6.0 seconds, what is the magnitude of the induced emf in that coil?
In a physics laboratory experiment, a coil with 150 turns enclosing an area of 13.8 cm2...
In a physics laboratory experiment, a coil with 150 turns enclosing an area of 13.8 cm2 is rotated in a time interval of 4.30×10−2 s from a position where its plane is perpendicular to the earth's magnetic field to one where its plane is parallel to the field. The earth's magnetic field at the lab location is 6.4×10−5 T . Part A What is the total magnetic flux through the coil before it is rotated? Part B What is the...
In a physics laboratory experiment, a coil with 250 turns enclosing an area of 14.0 cm2...
In a physics laboratory experiment, a coil with 250 turns enclosing an area of 14.0 cm2 is rotated during the time interval 4.50×10−2 s from a position in which its plane is perpendicular to Earth's magnetic field to one in which its plane is parallel to the field. The magnitude of Earth's magnetic field at the lab location is 5.90×10−5 T . What is the magnitude of the magnetic flux (Φinitial) through the coil before it is rotated? What is...
A circular coil enclosing an area of 97 cm2 is made of 201 turns of copper wire. The wire making up the coil has resistance of 6.0Ω
A circular coil enclosing an area of 97 cm2 is made of 201 turns of copper wire. The wire making up the coil has resistance of 6.0Ω, and the ends of the wire are connected to form a closed circuit. Initially, a 1.7 T uniform magnetic field points perpendicularly upward through the plane of the coil. The direction of the field then reverses so that the final magnetic field has a magnitude of 1.7 T and points downward through the...
In a physics laboratory experiment, a coil with 180 turns enclosing an area of 13.2 cm2...
In a physics laboratory experiment, a coil with 180 turns enclosing an area of 13.2 cm2 is rotated during the time interval 5.00×10−2 s from a position in which its plane is perpendicular to Earth's magnetic field to one in which its plane is parallel to the field. The magnitude of Earth's magnetic field at the lab location is 5.00×10−5 T . A. What is the magnitude of the magnetic flux (Φinitial) through the coil before it is rotated? B....
In a physics laboratory experiment, a coil with 250 turns enclosing an area of 12.1 cm2...
In a physics laboratory experiment, a coil with 250 turns enclosing an area of 12.1 cm2 is rotated in a time interval of 4.40×10−2 s from a position where its plane is perpendicular to the earth's magnetic field to one where its plane is parallel to the field. The earth's magnetic field at the lab location is 5.3×10−5 T . Part A What is the total magnetic flux through the coil before it is rotated? Φ1= Part B What is...
a. A coil of wire with 209 circular turns of radius 3.10 cm is in a...
a. A coil of wire with 209 circular turns of radius 3.10 cm is in a uniform magnetic field along the axis of the coil. The coil has R = 41.5 Ω . At what rate, in teslas per second, must the magnetic field be changing to induce a current of 0.149 A in the coil? b. A closely wound rectangular coil of 90.0 turns has dimensions of 30.0 cm by 47.0 cm . The plane of the coil is...
In a physics laboratory experiment, a coil with 150 turns enclosing an area of 11.4 cm2...
In a physics laboratory experiment, a coil with 150 turns enclosing an area of 11.4 cm2 is rotated in a time interval of 3.50×10−2 s from a position where its plane is perpendicular to the earth's magnetic field to one where its plane is parallel to the field. The earth's magnetic field at the lab location is 6.2×10−5 T. What is the magnetic flux through each turn of the coil before it is rotated? Express your answer using two significant...
A generator is constructed by rotating a coil of N turns in a magnetic field B...
A generator is constructed by rotating a coil of N turns in a magnetic field B at a frequency f. The internal resistance of the coil is R and the cross sectional area of the coil is A. The average induced EMF doubles if the magnetic field B is doubled. The average induced EMF doubles if the area A is doubled. The average induced EMF doubles if the frequency f is doubled. The average induced EMF doubles if the resistance...
In a physics laboratory experiment, a coil with 240 turns enclosing an area of 10.8 cm2...
In a physics laboratory experiment, a coil with 240 turns enclosing an area of 10.8 cm2 is rotated in a time interval of 4.10×10−2 s from a position where its plane is perpendicular to the earth's magnetic field to one where its plane is parallel to the field. The earth's magnetic field at the lab location is 5.9×10−5 T . 1) What is the total magnetic flux through the coil before it is rotated? Express your answer using two significant...
