Two thin rods of length L are rotating with the same angular speed ω (in rad/s)...
Two thin rods of length L are rotating with the same
angular speed ω (in rad/s) about axes that pass
perpendicularly through one end. Rod A is massless but has a
particle of mass 0.68 kg attached to its free end. Rod B has a mass
of 0.68 kg, which is distributed uniformly along its length. The
length of each rod is 0.87 m, and the angular speed is 4.4 rad/s.

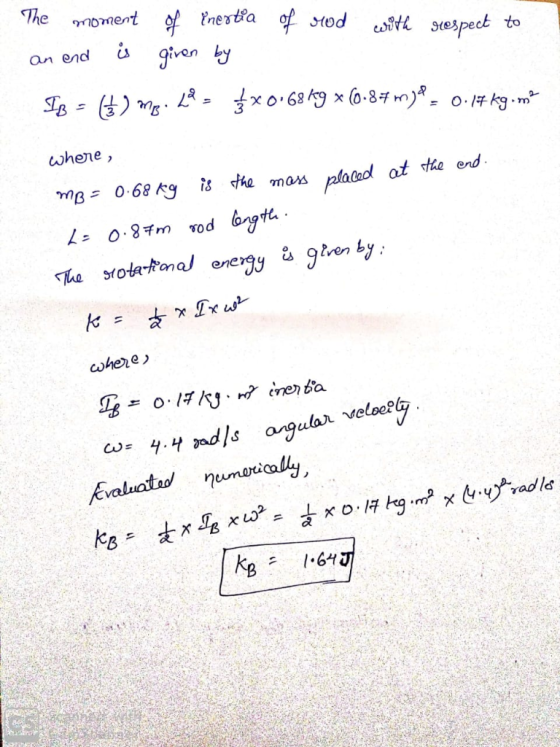

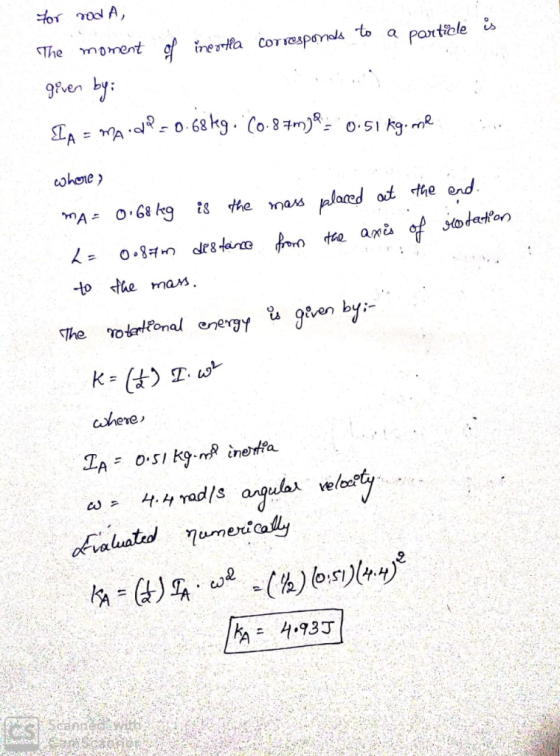

Find the kinetic energies of rod A with its attached particle and
of rod B.
(a) KEA =
(b) KEB =
Homework Answers
Add Answer to:
Two thin rods of length L are rotating with the same
angular speed ω (in rad/s)...
Two thin rods of length L are rotating with the same angular speed ω (in rad/s)...
Two thin rods of length L are rotating with the same angular speed ω (in rad/s) about axes that pass perpendicularly through one end. Rod A is massless but has a particle of mass 0.64 kg attached to its free end. Rod B has a mass of 0.64 kg, which is distributed uniformly along its length. The length of each rod is 0.89 m, and the angular speed is 4.9 rad/s. Find the kinetic energies of rod A with its...
Two thin rods of length L are rotating with the same angular speed ω (in rad/s)...
Two thin rods of length L are rotating with the same angular speed ω (in rad/s) about axes that pass perpendicularly through one end. Rod A is massless but has a particle of mass 0.64 kg attached to its free end. Rod B has a mass of 0.64 kg, which is distributed uniformly along its length. The length of each rod is 0.89 m, and the angular speed is 4.9 rad/s. Find the kinetic energies of rod A with its...
Two thin rods of length L are rotating with the sameangular speed ω (in rad/s) about...
Two thin rods of length L are rotating with the sameangular speed ω (in rad/s) about axes that passperpendicularly through one end. Rod A is massless but has aparticle of mass 0.66 kg attached to its free end. Rod B has a massof 0.66 kg, which is distributed uniformly along its length. Thelength of each rod is 0.77 m, and the angular speed is 5.7 rad/s.Find the kinetic energies of rod A with its attached particle andof rod B.
A thin uniform rod has a length of 0.530 m and is rotating in a circle...
A thin uniform rod has a length of 0.530 m and is rotating in a circle on a frictionless table. The axis of rotation is perpendicular to the length of the rod at one end and is stationary. The rod has an angular velocity of 0.41 rad/s and a moment of inertia about the axis of 3.10×10−3 kg⋅m2 . A bug initially standing on the rod at the axis of rotation decides to crawl out to the other end of...
A thin uniform rod has a length of 0.520 m and is rotating in a circle...
A thin uniform rod has a length of 0.520 m and is rotating in a circle on a frictionless table. The axis of rotation is perpendicular to the length of the rod at one end and is stationary. The rod has an angular velocity of 0.37 rad/s and a moment of inertia about the axis of 2.70×10−3 kg⋅m2 . A bug initially standing on the rod at the axis of rotation decides to crawl out to the other end of...
A thin uniform rod has a length of 0.520 m and is rotating in a circle...
A thin uniform rod has a length of 0.520 m and is rotating in a circle on a frictionless table. The axis of rotation is perpendicular to the length of the rod at one end and is stationary. The rod has an angular velocity of 0.31 rad/s and a moment of inertia about the axis of 3.10×10^(−3) kg⋅m2 . A bug initially standing on the rod at the axis of rotation decides to crawl out to the other end of...
1. What is the angular momentum of a 0.240-kg ball rotating on the end of a...
1. What is the angular momentum of a 0.240-kg ball rotating on the end of a thin string in a circle of radius 1.35 m at an angular speed of 15.0 rad/s ? 2. A diver can reduce her moment of inertia by a factor of about 4.0 when changing from the straight position to the tuck position. If she makes 2.0 rotations in 1.5 s when in the tuck position, what is her angular speed (rev/s) when in the...
Two identical thin rods of mass M and length d are attached together in the form...
Two identical thin rods of mass M and length d are attached
together in the form of a plus sign “+” (see figure 9). The whole
structure is rotating counterclockwise with angular velocity of ω
about the z axis (which is at the point of attachment). The angular
momentum about the z axis is:
Figure 9
Two spheres are each rotating at an angular speed of 24.6 rad/s about axes that pass...
Two spheres are each rotating
at an angular speed of 24.6 rad/s about axes that pass through
their centers. Each has a radius of 0.400 m and a mass of 1.68 kg.
However, as the figure shows, one is solid and the other is a
thin-walled spherical shell. Suddenly, a net external torque due to
friction (magnitude = 0.330 N · m) begins to act on each sphere and
slows the motion down. How long does it take (a) the...
Two spheres are each rotating at an angular speed of 22.0 rad/s about axes that pass...
Two spheres are each rotating at an angular speed of 22.0 rad/s about axes that pass through their centers. Each has a radius of 0.430 m and a mass of 1.64 kg. However, as the figure shows, one is solid and the other is a thin-walled spherical shell. Suddenly, a net external torque due to friction (magnitude = 0.150 N·m) begins to act on each sphere and slows the motion down. How long does it take (a) the solid sphere...
Two identical thin rods of mass M and length d are attached
together in the form of a plus sign “+” (see figure 9). The whole
structure is rotating counterclockwise with angular velocity of ω
about the z axis (which is at the point of attachment). The angular
momentum about the z axis is:
Figure 9
Two spheres are each rotating
at an angular speed of 24.6 rad/s about axes that pass through
their centers. Each has a radius of 0.400 m and a mass of 1.68 kg.
However, as the figure shows, one is solid and the other is a
thin-walled spherical shell. Suddenly, a net external torque due to
friction (magnitude = 0.330 N · m) begins to act on each sphere and
slows the motion down. How long does it take (a) the...
Two spheres are each rotating at an angular speed of 22.0 rad/s about axes that pass through their centers. Each has a radius of 0.430 m and a mass of 1.64 kg. However, as the figure shows, one is solid and the other is a thin-walled spherical shell. Suddenly, a net external torque due to friction (magnitude = 0.150 N·m) begins to act on each sphere and slows the motion down. How long does it take (a) the solid sphere...
