Two copper wires are labeled A and B. B is twice as long and has twice the diameter of A. Which is true?

A has 4 times the resistance of B.

A and B have the same resistance.

A has 1/2 the resistance of B.

A has twice the resistance of B.

science physics

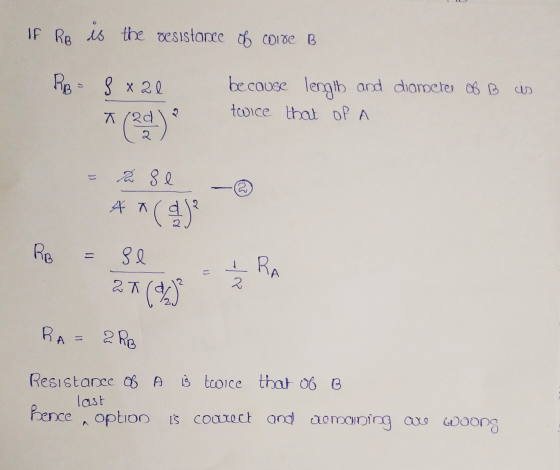

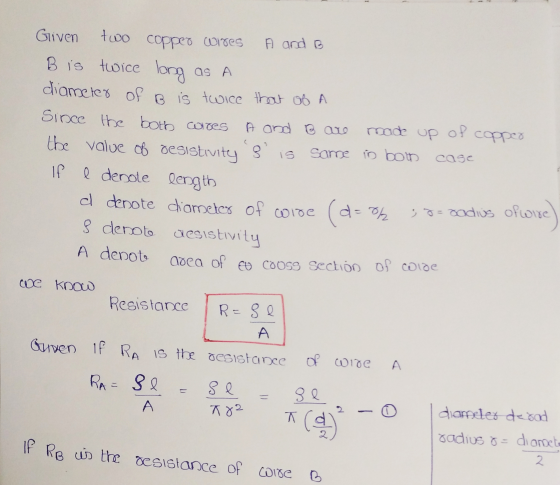

Answer 1

Answer #1

Answer 2
