A string 2.0 m long is driven by a 240 Hz vibrator at its end. The...

A string 2.0 m long is driven by a 240 Hz vibrator at its end. The string resonates in four segments forming a standing wave pattern. What would be the speed of a transverse wave on such a string? (Please show work and explanation).

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

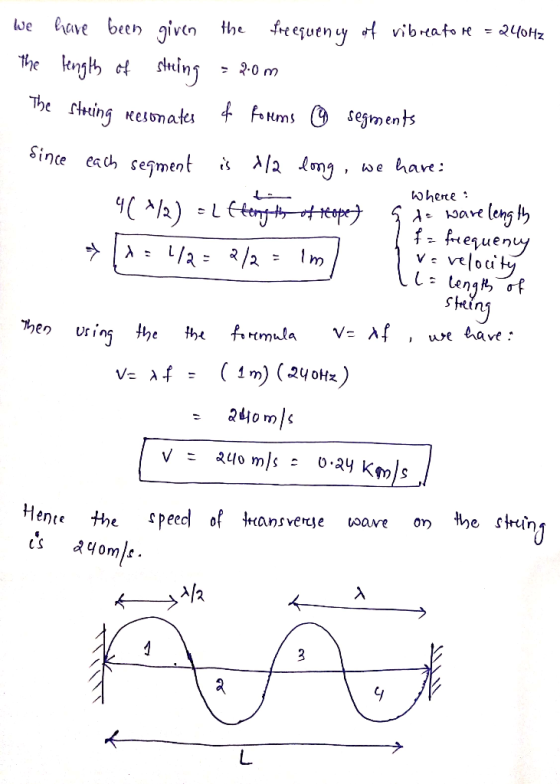

ANSWER: 240 m/s

It was a pleasure answering your question. Hope this helps...

Good luck!
