Using the equation, calculate a value for absolute zero and a percent error (use C) using the accepted value.
Regression equation: y=0.0155x+0.2782
R = 0.8541
Accepted value: -273.5 C
The equation was found from the following data:
| No. | Temperature (C) | Temperature (K) | Pressure (atm) |
| 1 | 44 | 317 | 1.0184 |
| 2 | 57 | 330 | 1.0576 |
| 3 | 4 | 277 | 0.1963 |
| 4 | 30 | 303 | 0.9863 |
| 5 | 65 | 338 | 1.2413 |

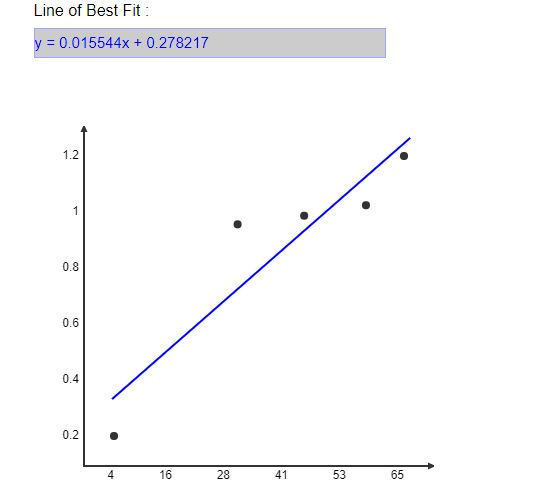

If you plot the above points, you will get the following graph-

Here, x-axis is the temperature (in oC) and y-axis is the pressure.
The equation you have calculate is correct i.e.
y= 0.0155x+0.2782
Putting y= Pressure (P) and x= Temperature (T), we have,

At absolute temperature, pressure is 0 atm. Thus, we have,

Therefore according to your estimation, the value of absolute temperature is -17.94 oC. Unfortunately, this is way off the accepted value of -273.5 oC.
% Error = |(Experimental Temperature - Actual Temperature)|/|(Actual Temperature)| x 100
Thus, we have,
% Error = |(-17.94 oC - (-273.5 oC))/(-273.5 oC)|*100 = 93.4%.
Thus, the error is 93.4% and since your value is more than the actual value, you have overestimated the absolute zero by approximately 93.4%. It should have been -273.5 oC but you have it as -17.94 oC.
Note- The accepted value given in the question is -273.5 oC but check once if it is -273.5 oC or -273.15 oC. In any case, your answer won't differ by much.
