An aircraft engine operates on a simple ideal Brayton cycle with a pressure ratio of 10.9....
An aircraft engine operates on a simple ideal Brayton cycle with a pressure ratio of 10.9. Heat is added to the cycle at a rate of 748 kW; air passes through the engine at a rate of 2 kg/s; and the air at the beginning of the compression is at 70 kPa and 321 K. Determine assuming constant specific heats at room temperature.

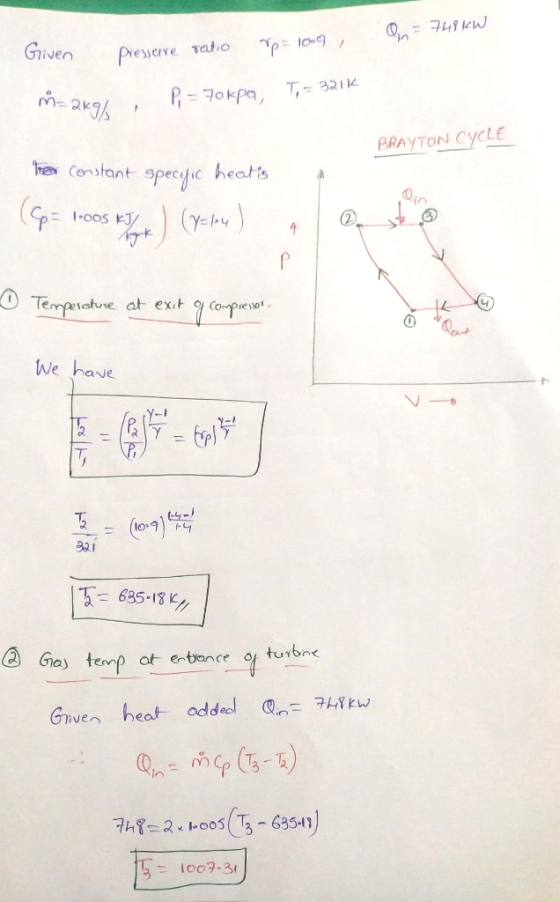

(1) The gas temperature at the exit of the compressor
(2) The gas temperature at the entrance of the turbine

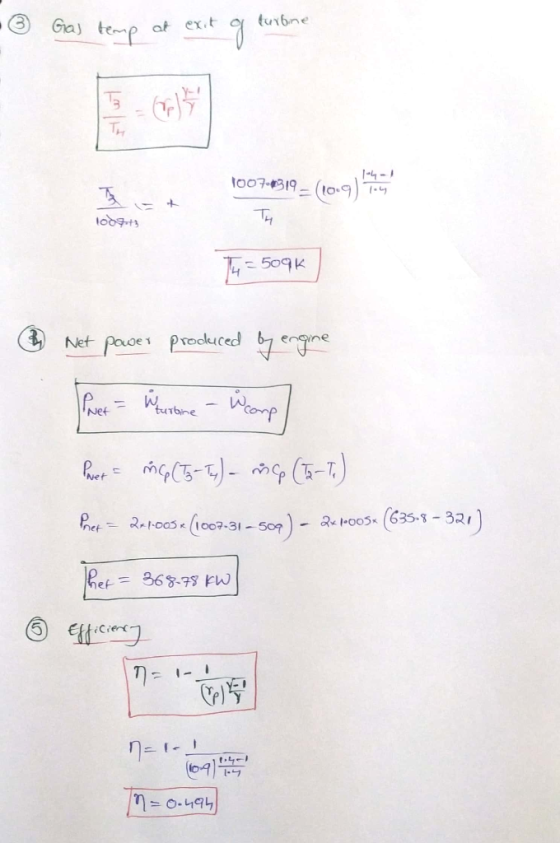

(3) The gas temperature at the exit of the turbine
(4) The net power produced by the engine
(5) Thermal efficiency
Homework Answers
