Design an inverting amplifier to have a gain of 20 using the LMV358 and a single...

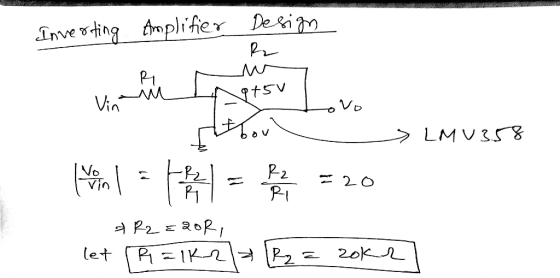

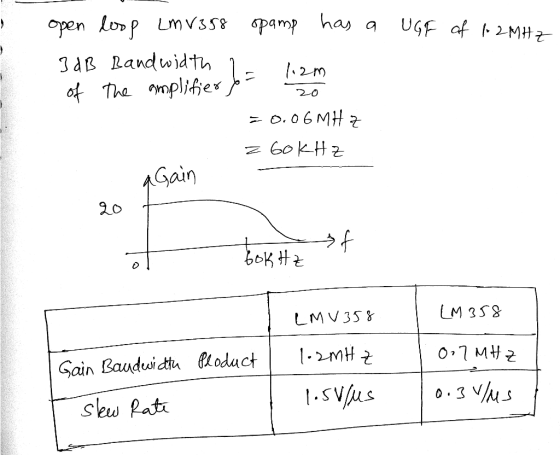

Design an inverting amplifier to have a gain of 20 using the LMV358 and a single +5 V supply. What will be the typical 3-dB bandwidth of the amplifier?

AND Compare the typical (a) gain bandwidth product and (b) slew rate of the LMV358 and the LM358?

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
