A diverging mirror has a focal length of f = 900 mm .

a) Calculate the image distance for an object located halfway between the focal point and the mirror.

b) Calculate the magnification for an object located halfway between the focal point and the mirror.

c) Calculate the image distance for an object located at the focal point.

d) Calculate the magnification for an object located at the focal point.

e) Calculate the image distance for an object located halfway between the focal point and the center of curvature.

f) Calculate the magnification for an object located halfway between the focal point and the center of curvature.

g) Calculate the image distance for an object located at the center of curvature.

h) Calculate the magnification for an object located at the center of curvature.

i) Calculate the image distance for an object located a distance f beyond the center of curvature.

j) Calculate the magnification for an object located a distance f beyond the center of curvature.

k) Calculate the image distance for an object located at infinity.

l) Calculate the magnification for an object located at infinity.

science physics

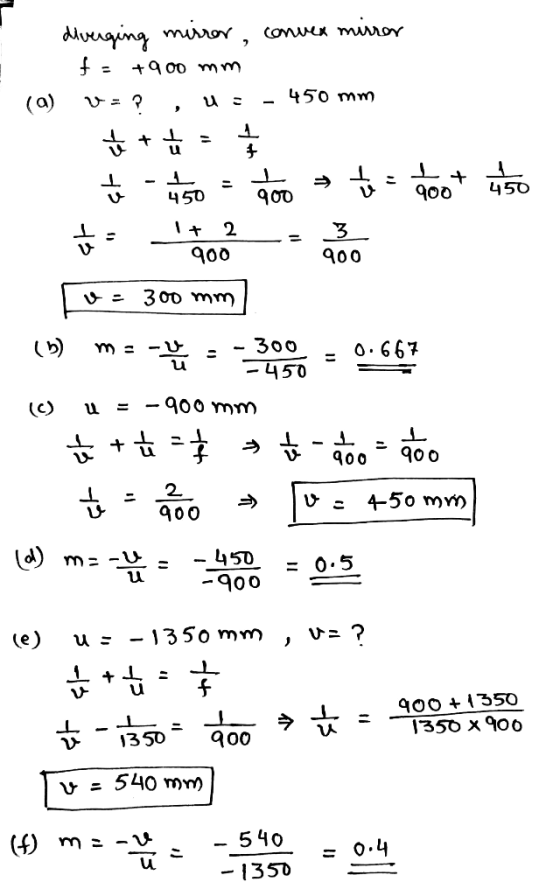

Answer 1

Answer #1

Answer 2
