A piston-cylinder apparatus contains 5 kg of saturated water at 55˚C. The piston’s cross sectional area...

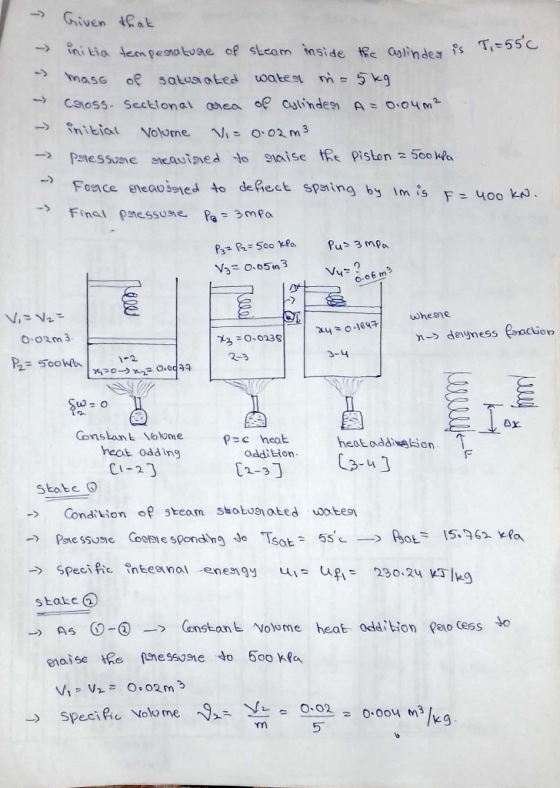

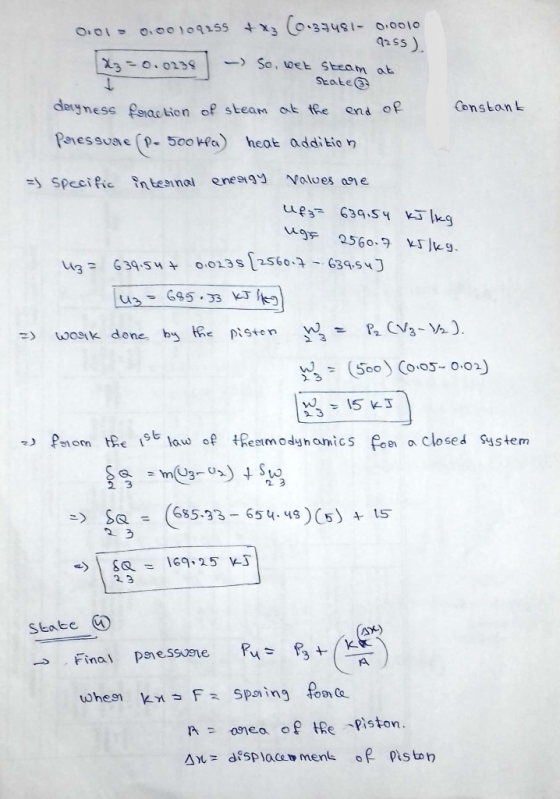

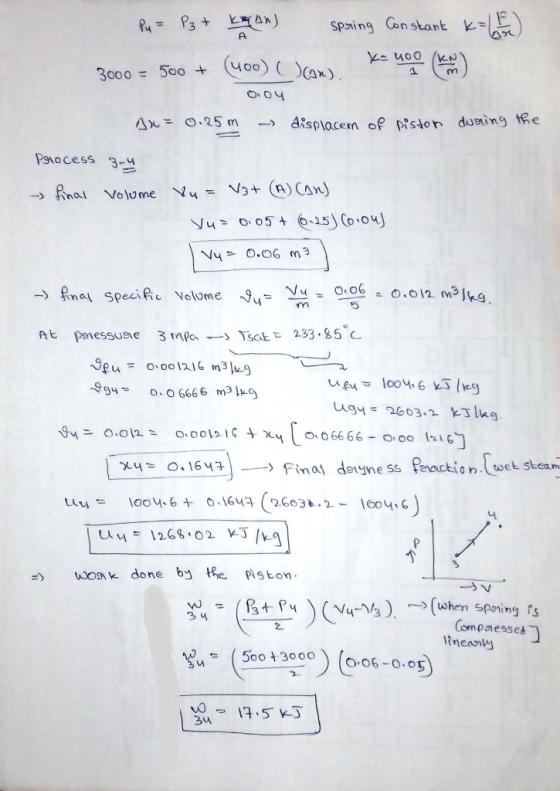

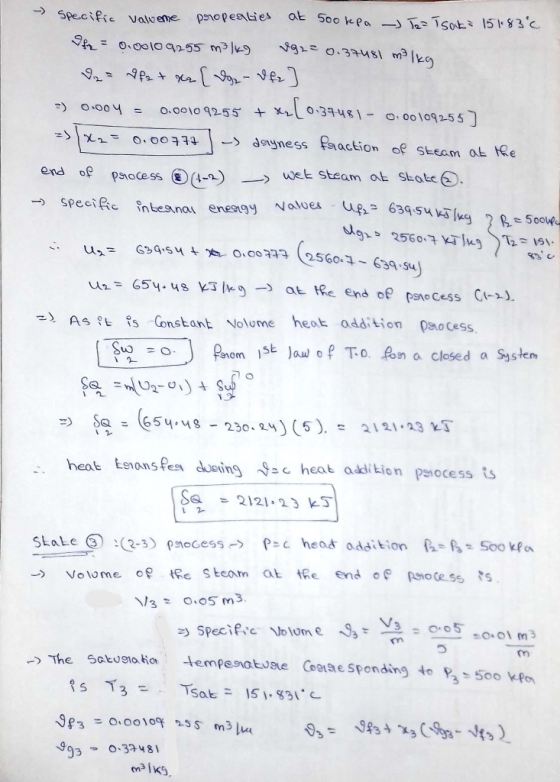

A piston-cylinder apparatus contains 5 kg of saturated water at 55˚C. The piston’s cross sectional area is 0.04 m2, and initially is resting on stops, enclosing a volume of 0.02 m3. To raise the piston, a pressure of 500 kPa has to be applied. When the volume is 0.05 m3, the piston encounters a linear spring. To deflect the spring 1 m, a force of 400 kN is required. More heat is transferred until the final pressure is 3 MPa. How much heat is required through this process?

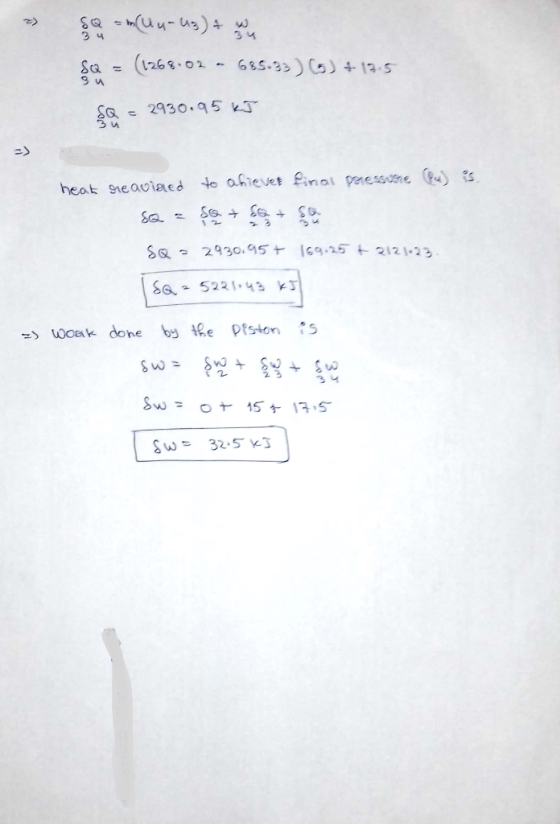

Answers are 32.5 kJ=w and Q=5219.3kJ. but how do i do it?
Homework Answers
Add Answer to:
A piston-cylinder apparatus contains 5 kg of saturated water at
55˚C. The piston’s cross sectional area...
A piston–cylinder device initially contains 0.6 m3 of saturated water vapor at 250 kPa. At this...
A piston–cylinder device initially contains 0.6 m3 of saturated water vapor at 250 kPa. At this state, the piston is resting on a set of stops, and the mass of the piston is such that a pressure of 300 kPa is required to move it. Heat is now slowly transferred to the steam until the volume becomes 1.5 m3. Use the data from the steam tables. a) Determine the final temperature. b) Determine the work done during this process. c)...
Required information A piston-cylinder device initially contains 0.6 m3 of saturated water vapor at 250 kPa....
Required information A piston-cylinder device initially contains 0.6 m3 of saturated water vapor at 250 kPa. At this state, the piston is resting on a set of stops, and the mass of the piston is such that a pressure of 300 kPa is required to move it. Heat is now slowly transferred to the steam until the volume becomes 1.3 m3. Use the data from the steam tables. Determine the final temperature. (You must provide an answer before moving on...
Patm 100 kPa 1 kg of water is contained in a frictionless piston cylinder device fitted...
Patm 100 kPa 1 kg of water is contained in a frictionless piston cylinder device fitted with two stops. The mass of the piston is 50 kg and the system is open to the atmosphere with Ptm - 100 kPa. The initial temperature of the system Ti Tantal 105 'C and the initial volume V1 Vinitial 1 m3 When the piston reaches the second stop, the volume of the water is doubled (V4Vinal2 Vinitial). Heat is EE transferred between the...
A spring loaded piston-cylinder device with a cross sectional area of 0.2 m2 contains 0.6 kg...
A spring loaded piston-cylinder device with a cross sectional area of 0.2 m2 contains 0.6 kg of air, as shown in the figure. The air initially at 100 kPa and 20°C, is heated to 450 kPa at which the piston begins to move. The process continues until the final volume is 12 times the initial volume. Calculate (a) the final temperature in kb) the work done in kJ. (the total heat transfer in this process Use the following properties for...
A piston/cylinder with a cross- sectional area of .01 m^2 has a piston mass of 100...
A piston/cylinder with a cross- sectional area of .01 m^2 has a piston mass of 100 kg resting on stops. With an outside atmospheric pressure of 120 kPa , what should the water pressure be to lift the piston?
QUESTION 24 A piston-cylinder device contains 50 kg of water at 250 kPa and 25 degree...
QUESTION 24
A piston-cylinder device contains 50 kg of water at 250 kPa and 25 degree C. The cross-sectional area of the piston is 0.1 m2. Heat is now transferred to the water, causing part of it to evaporate and expand. When the volume reaches 0.2 m3 the piston reaches a linear spring whose spring constant is 100 kN/m. More heat is transferred to the water until the piston rises 20 cm more. Determine (a) the final pressure and temperature...
A mass of 5.5 kg of saturated liquid-vapor mixture of water is contained in a piston-cylinder...
A mass of 5.5 kg of saturated liquid-vapor mixture of water is contained in a piston-cylinder at 101.325 kPa. Initially, 2.3 kg of the water is in the liquid phase and the rest is in the vapor phase. Heat is now transferred to the water, and the piston, which is resting on a set of stops, starts moving when the pressure inside reaches 300 kPa. Heat transfer continues until the total volume increases by 21 percent. Determine: a) the initial...
1 A piston-cylinder device initially contain 0.4 m3 of 1.8- kg saturated liquid water and steam...
1 A piston-cylinder device initially contain 0.4 m3 of 1.8- kg saturated liquid water and steam mixture at 110 kPa. A electric heater in the device is turned on and passes a current of 1.7 A from a 120-V source. Only transfer of electrical work and boundary work exist. The piston initially rests on a set of stops, and a pressure of 200 kPa is required to move the piston. Afterwards the system continues to raise the piston and eventually...
A piston-cylinder device initially contain 0.4 m3 of 1.8-kg saturated liquid water and steam mixture at...
A piston-cylinder device initially contain 0.4 m3 of 1.8-kg saturated liquid water and steam mixture at 110 kPa. A electric heater in the device is turned on and passes a current of 1.7 A from a 120-V source. Only transfer of electrical work and boundary work exist. The piston initially rests on a set of stops, and a pressure of 200 kPa is required to move the piston. Afterwards the system continues to raise the piston and eventually reaches the...
A piston-cylinder device initially contain 0.4 m3 of 1.8-kg saturated liquid water and steam mixture at...
A piston-cylinder device initially contain 0.4 m3 of 1.8-kg saturated liquid water and steam mixture at 110 kPa. A electric heater in the device is turned on and passes a current of 1.7 A from a 120-V source. Only transfer of electrical work and boundary work exist. The piston initially rests on a set of stops, and a pressure of 200 kPa is required to move the piston. Afterwards the system continues to raise the piston and eventually reaches the...
Required information A piston-cylinder device initially contains 0.6 m3 of saturated water vapor at 250 kPa. At this state, the piston is resting on a set of stops, and the mass of the piston is such that a pressure of 300 kPa is required to move it. Heat is now slowly transferred to the steam until the volume becomes 1.3 m3. Use the data from the steam tables. Determine the final temperature. (You must provide an answer before moving on...
Patm 100 kPa 1 kg of water is contained in a frictionless piston cylinder device fitted with two stops. The mass of the piston is 50 kg and the system is open to the atmosphere with Ptm - 100 kPa. The initial temperature of the system Ti Tantal 105 'C and the initial volume V1 Vinitial 1 m3 When the piston reaches the second stop, the volume of the water is doubled (V4Vinal2 Vinitial). Heat is EE transferred between the...
A spring loaded piston-cylinder device with a cross sectional area of 0.2 m2 contains 0.6 kg of air, as shown in the figure. The air initially at 100 kPa and 20°C, is heated to 450 kPa at which the piston begins to move. The process continues until the final volume is 12 times the initial volume. Calculate (a) the final temperature in kb) the work done in kJ. (the total heat transfer in this process Use the following properties for...
QUESTION 24
A piston-cylinder device contains 50 kg of water at 250 kPa and 25 degree C. The cross-sectional area of the piston is 0.1 m2. Heat is now transferred to the water, causing part of it to evaporate and expand. When the volume reaches 0.2 m3 the piston reaches a linear spring whose spring constant is 100 kN/m. More heat is transferred to the water until the piston rises 20 cm more. Determine (a) the final pressure and temperature...
1 A piston-cylinder device initially contain 0.4 m3 of 1.8- kg saturated liquid water and steam mixture at 110 kPa. A electric heater in the device is turned on and passes a current of 1.7 A from a 120-V source. Only transfer of electrical work and boundary work exist. The piston initially rests on a set of stops, and a pressure of 200 kPa is required to move the piston. Afterwards the system continues to raise the piston and eventually...
