Match the following circumstances with the principal heat transfer mechanism(s) that apply to the statement: Sunlight...

Question

Question

Match the following circumstances with the principal heat transfer mechanism(s) that apply to the statement:

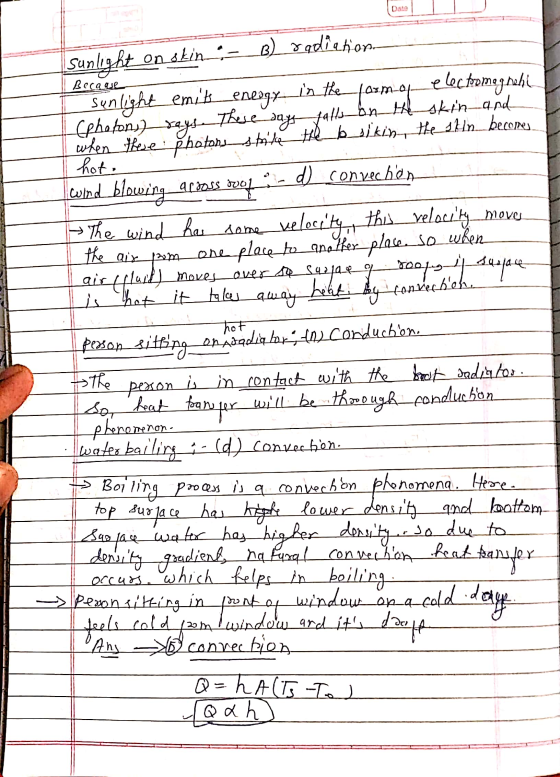

	Sunlight on your skin
	Wind blowing across a roof
	Person sitting on a hot radiator
	Water boiling
	Person indoors standing in front of a window on a cold day ... and feels cold from the window and it's draft!

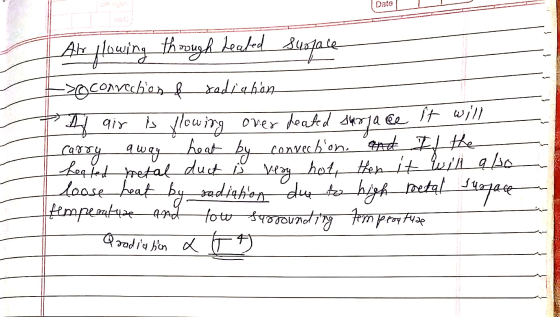

	Air flowing through a heated metal duct

Choose from:
A. Conduction
B. Radiation
C. Convection and Radiation
D. Convection

engineering Mechanical-Engineering

Answer 1

Answer #1

Answer 2
