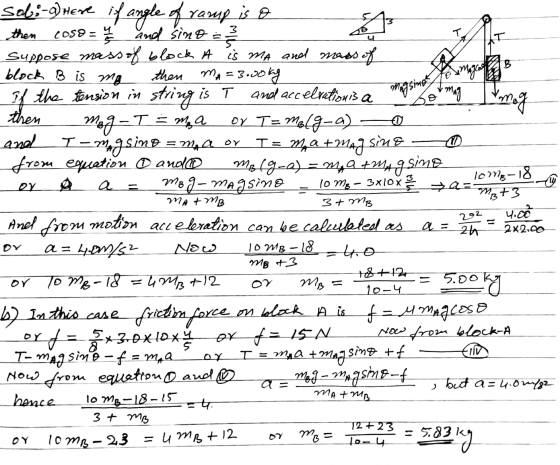

Two blocks are connected by a string that passes over a pulley, as shown in the figure. The pulley rotates without friction and its mass can be neglected. Block A rests on a ramp measuring 3.0 m vertically and 4.0 m horizontally. Block B hangs vertically below the pulley. Note that you can solve this exercise entirely using forces and the constant-acceleration equations, but see if you can apply energy ideas instead. Use g = 10 \; m/s^2g=10m/s2. When the system is released from rest, block A accelerates up the slope and block B accelerates straight down.
a)
Block A has a mass of 3.00 kg. When block B has fallen through a height h = 2.00 m, its speed is v = 4.00 m/s.
Assuming that no friction is acting on block A, what is the mass
of block B?
_______ kg
b)
Block A has a mass of 3.00 kg. When block B has fallen through a height h = 2.00 m, its speed is v = 4.00 m/s.
If, instead, there is friction acting on block A, with a
coefficient of kinetic friction of 5/8, what is the mass of block
B?
_______ kg
