Design a square tied column to support an axial dead load of (170) k and an...
Design a square tied column to support an axial dead load of (170) k and an axial live load of (210) k. Begin using approximately (2.5) percent longitudinal steel, a concrete strength of 4,000 psi and Grade 60 steel. Draw the details of reinforcement and check all ACI recommendation.
Homework Answers

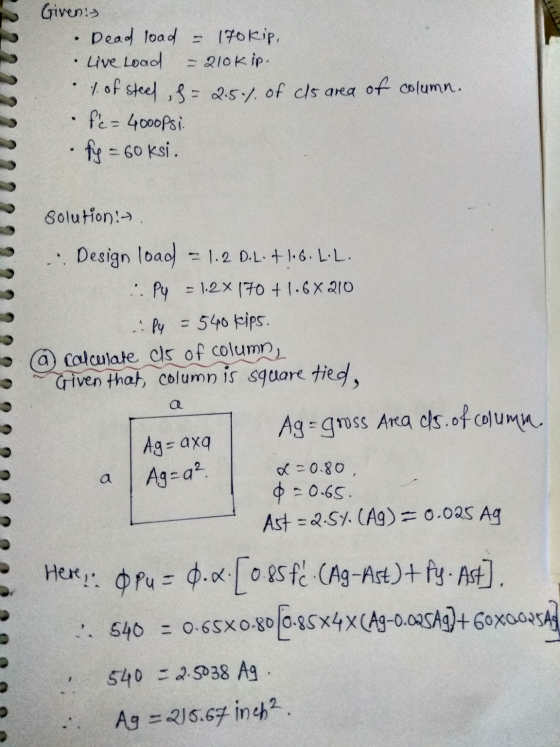

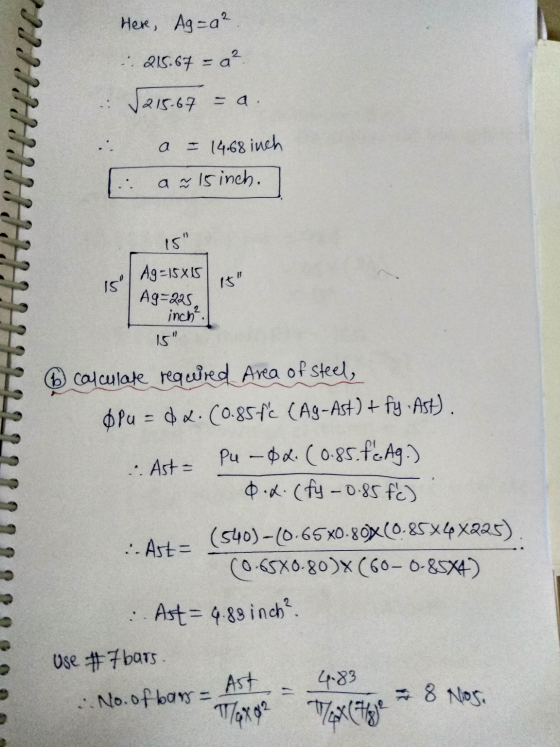

Solution:

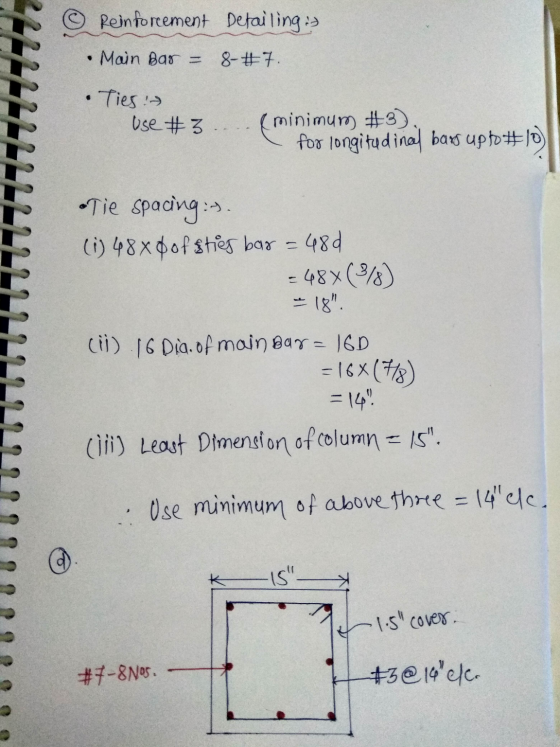

Provided percentage of steel ,
%
> minimum requirement of 1%. Hence, OK.
Add Answer to:
