A cannon shell is launched with an initial velocity of 387 m/s at an angle of...

A cannon shell is launched with an initial velocity of 387 m/s at an angle of 15 º above the horizontal. Neglecting air resistance, determine the maximum horizontal displacement (Range) of the projectile in kilometers. Take the acceleration due to gravity as 9.8 m/s2. Please round your answer to one decimal place.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

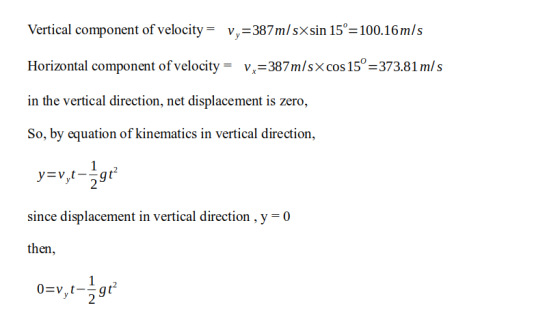

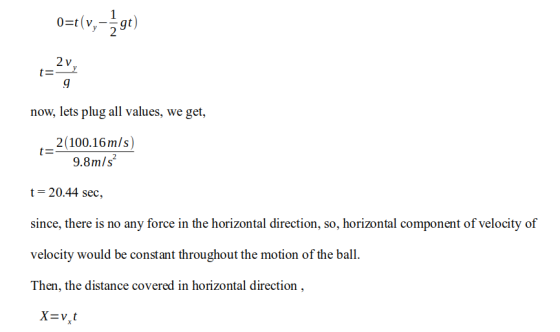

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A cannon shell is launched with an initial velocity of 387 m/s at an angle of...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • 019 10.0 points A cannon fires a 0.579 kg shell with initial velocity Vi-11 m/s in...

    019 10.0 points A cannon fires a 0.579 kg shell with initial velocity Vi-11 m/s in the direction θ 43° above the horizontal. The shell's trajectory curves downward be- cause of gravity, so at the timet 0.55 s the shell is below the straight line by some vertical distance ΔΙι Find this distance Ah in the absence of air resistance. The acceleration of gravity is 9.8 m/s2. Answer in units of m

  • A projectile is launched with an initial velocity of 40 m/s at 60° above the horizontal....

    A projectile is launched with an initial velocity of 40 m/s at 60° above the horizontal. Neglecting air resistance, what is horizontal component of the projectile's acceleration?

  • d) A projectile is launched with an initial velocity w at an angle 0 above the...

    d) A projectile is launched with an initial velocity w at an angle 0 above the horizontal In terms of V, 0 and acceleration due to gravity g, determine for the projectile i) the time to reach its maximum height and ii) its maximum height (7 marks)

  • 2. A projectile is fired from a cannon with initial velocity of 1000 m/s and at...

    2. A projectile is fired from a cannon with initial velocity of 1000 m/s and at an angle of 30° from the horizontal. The point of impact is 1500 m below the point of release. (a) How long does it take for the projectile to hit the ground? (b) Find the projectile's speed at impact. (c) Find the horizontal range of the projectile. (d) Find the maximum height. Neglect air resistance. 1000 m/s 1500 m PREPARED BY: REVIEWED BY: NOTED...

  • Somewhere in the vast flat tundra of planet Tehar, a projectile is launched from the ground...

    Somewhere in the vast flat tundra of planet Tehar, a projectile is launched from the ground at an angle of 60 degrees. It reaches the maximum height of 15 m. The acceleration due to gravity is 30 m/s2. Find the time in seconds the projectile spends in the air. Find the initial speed of the projectile in m/s. Find the minimum speed of the projectile in m/s. Find the horizontal range of the projectile in meters.

  • 2/94 An experimental fireworks shell is launched verti- cally from point A with an initial velocity...

    2/94 An experimental fireworks shell is launched verti- cally from point A with an initial velocity of magni- tude u-100 ft/sec. In addition to the acceleration due to gravity, an internal thrusting mechanism causes a constant acceleration component of 2g in the 60" direction shown for the first 2 seconds of Aight, after which the thruster ceases to function. Determine the maximum height h achieved, the total flight time, the net horizontal displacement from point A, and plot the entire...

  • 1. If a projectile is fired with an initial velocity of vo meters per second at...

    If a projectile is fired with an initial velocity of v0 meters per second at an angle α above the horizontal, and air resistance is assumed to be negligible, then its position after t seconds is given by the parametric equationsx=(v0 cos α) t   y=(v0 sin α) t-1/2 g t2where g is the acceleration due to gravity (9.8 m / s2)(a) If a projectile is fired with α=45° and v0=900 m / s, when will it hit the ground? How...

  • A cannon fires a shell straight upward 1.8s after it is launched the shell is moving...

    A cannon fires a shell straight upward 1.8s after it is launched the shell is moving upward with a speed of 20 m/s assuming air resistance is negligible find the speed of the shell at launch and 4.9 s after launch 10. 6 27 WA 032 A cannon fires a shell straight upward; 1.8 s after it is launched, the shell is moving upward with a speed of 20 m/s. Assuming air resistance is negligible, find the speed (magnitude of...

  • On level ground a shell is fired with an initial velocity of 83.7 m/s at 50.8...

    On level ground a shell is fired with an initial velocity of 83.7 m/s at 50.8 ∘ above the horizontal and feels no appreciable air resistance. A) Find the horizontal and vertical components of the shell's initial velocity. B) How long does it take the shell to reach its highest point? C) Find its maximum height above the ground. D) How far from its firing point does the shell land? E) At its highest point, find the horizontal and vertical...

  • A projectile is launched with an initial velocity v , at an angle θ' above the...

    A projectile is launched with an initial velocity v , at an angle θ' above the horizontal. At a certain pont A in its motion, its velocity angle is 0, above the horizontal. At another point B, later in its motion, its velocity angle is θ8 below the horizontal. What is the horizontal distance from A to B? 2. (Model the projectile as a particle. Assume a constant standard earth-surface g value. Ignore all air resistance.) You may assume that...
