Using the graphical method, show how two vectors of equal magnitudes must be added to get...

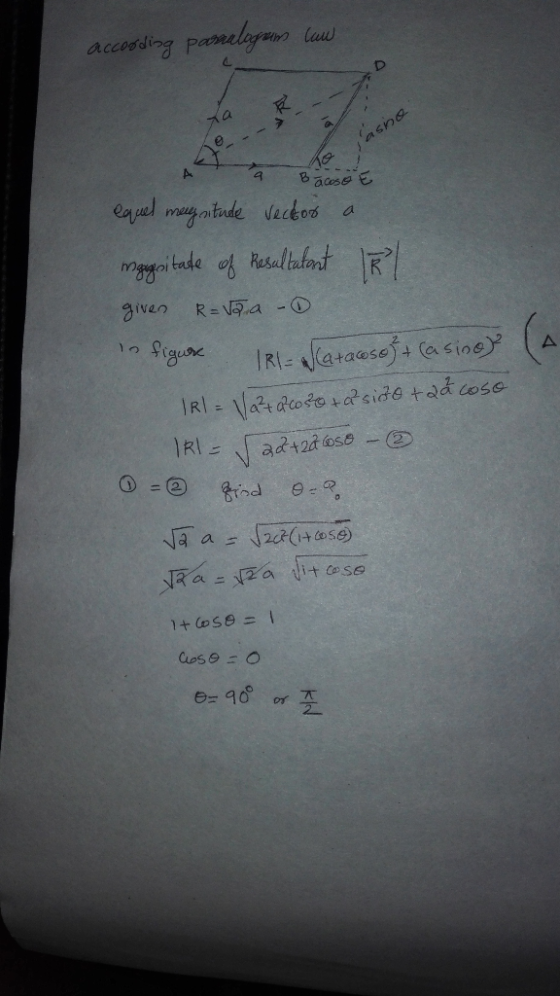

Using the graphical method, show how two vectors of equal magnitudes must be added to get a resultant vector with (2)^1/2 the original magnitude
Homework Answers
Add Answer to:
Using the graphical method, show how two vectors of equal
magnitudes must be added to get...
3. (Point 32) Using the Graphical Method (Head-Tail), Try the Resultant Vector and Equivalent Vector. Vectors,...
3. (Point 32) Using the Graphical Method (Head-Tail), Try the Resultant Vector and Equivalent Vector. Vectors, A-(3.00 N, 1809), B-(3.00 N, 30%), and C-(8.00 N, 330%) are given. a) Starting from Vector A, draw the Resultant Vector and Equivalent Vector by using H-T method. R-A +B+C, R+E-0. Vector, A is given. From starting point A, draw B, C, R, and E vector. 0 T b) Find the magnitude of Rusing graphical method. c) Find the angle of R using protractor....
4-5 2. Graphical Addition Using the graph paper and starting points provided, add the vectors for...
4-5 2. Graphical Addition Using the graph paper and starting points provided, add the vectors for each trial. Use the scale: 1.00 cm = 20.0 g Using a protractor and a ruler, carefully draw each vector with the proper length (magnitude) and orientation (direction) in a nose-to-tail arrangement. Note: If you don't have a protractor, you may use trigonometry. However, it is important to realize that graphical vector addition can be performed without the use of trigonometry. Each subsequent vector...
PHY105 - Vectors - Graphical vs. Calculated Instructions Will a graphical analysis of a vector sum...
PHY105 - Vectors - Graphical vs. Calculated Instructions Will a graphical analysis of a vector sum yield the same results as a trigonometric analysis? For each of the following four vector combinations first calculate the magnitude and direction of the resultant using trigonometry and then... compare the calculated values to those you get from a carefully drawn vector diagram on graph paper. - For the graphical analysis, use the 'head to tail' method. - Do each clearly and on separate...
Q4. Two vectors, A and B, are added by means of vector addition to give a...
Q4. Two vectors, A and B, are added by means of vector addition to give a resultant vector R R A+ B. The magnitudes of Ä and B are 2.0 m and 7.0 m, respectively; and they can have any orientation. What are the maximum and minimum possible values for the magnitude of R?
The two vectors a→ and b→ in the figure have equal magnitudes of 11.6 m and...
The two vectors a→ and b→ in the figure have equal magnitudes of
11.6 m and the angles are θ1 = 28° and θ2 =
103°. Find (a) the x component and
(b) the y component of their vector sum
r→, (c) the magnitude of r→,
Parts A,B, C Show formula and all work The magnitudes of 3 displacement vectors shown in...
Parts A,B, C
Show formula and all work
The magnitudes of 3 displacement vectors shown in the figure are A = 5 m, B = 6 m and C = 4 m a) Find the X and Y components of each Vector b) Determine the magnitude of the resultant vector c) Determine the direction of the resultant vector
following The two vectors α and b in the figure below have equal magnitudes of 13.1...
following
The two vectors α and b in the figure below have equal magnitudes of 13.1 m and their angles are a = 30° and θ2-1039 0 (a) Find the x and y components of their vector sum r. (Express your answer in vector form.) (b) Find the magnitude of (c) Find the angle r makes with the positive x axis
The two vectors a and b in the figure have equal magnitudes of 10.6 m and...
The two vectors a and b in the figure have equal magnitudes of 10.6 m and the angles are ei-34° and 82-10%. Find (a) the x component and (b) the y component of their vector sum ,(e) the magnitude of , and (d) the angle r makes with the positive direction of the x axis. 8, (a) Number Units (b) NumberUnts (c) Number Units (d) Number Units
6 ture Supplement 4: Intro Vectors Worksheet B a vector (graphical, verbal, or mathematical) that is...
6
ture Supplement 4: Intro Vectors Worksheet B a vector (graphical, verbal, or mathematical) that is in: Provide an example of a) ID b) 2D c) 3D (graphi Outline the main vector operations we will use in class: a) Vector Addition b) Vector Subtraction c) Scalar Multiplication d) Vector Dot Product e) Vector Cross Product What is a resultant vector? 4 What is the component of a vector? 3,Define a unit vector. Give an example of a unit vector in...
Two vectors ~a and ~b have equal magnitudes of 28.4 units. They are oriented as shown...
Two vectors ~a and ~b have
equal magnitudes of 28.4 units. They are oriented as shown in the
figure below and their vector sum is ~r. Find
(a) the x and y components of ~r,
(b) the magnitude of ~r, and
(c) the angle ~r makes with the positive x-axis
ude of F, and ) the angle F makes with the positive x-axis. 105
3. (Point 32) Using the Graphical Method (Head-Tail), Try the Resultant Vector and Equivalent Vector. Vectors, A-(3.00 N, 1809), B-(3.00 N, 30%), and C-(8.00 N, 330%) are given. a) Starting from Vector A, draw the Resultant Vector and Equivalent Vector by using H-T method. R-A +B+C, R+E-0. Vector, A is given. From starting point A, draw B, C, R, and E vector. 0 T b) Find the magnitude of Rusing graphical method. c) Find the angle of R using protractor....
4-5 2. Graphical Addition Using the graph paper and starting points provided, add the vectors for each trial. Use the scale: 1.00 cm = 20.0 g Using a protractor and a ruler, carefully draw each vector with the proper length (magnitude) and orientation (direction) in a nose-to-tail arrangement. Note: If you don't have a protractor, you may use trigonometry. However, it is important to realize that graphical vector addition can be performed without the use of trigonometry. Each subsequent vector...
PHY105 - Vectors - Graphical vs. Calculated Instructions Will a graphical analysis of a vector sum yield the same results as a trigonometric analysis? For each of the following four vector combinations first calculate the magnitude and direction of the resultant using trigonometry and then... compare the calculated values to those you get from a carefully drawn vector diagram on graph paper. - For the graphical analysis, use the 'head to tail' method. - Do each clearly and on separate...
Q4. Two vectors, A and B, are added by means of vector addition to give a resultant vector R R A+ B. The magnitudes of Ä and B are 2.0 m and 7.0 m, respectively; and they can have any orientation. What are the maximum and minimum possible values for the magnitude of R?
The two vectors a→ and b→ in the figure have equal magnitudes of
11.6 m and the angles are θ1 = 28° and θ2 =
103°. Find (a) the x component and
(b) the y component of their vector sum
r→, (c) the magnitude of r→,
Parts A,B, C
Show formula and all work
The magnitudes of 3 displacement vectors shown in the figure are A = 5 m, B = 6 m and C = 4 m a) Find the X and Y components of each Vector b) Determine the magnitude of the resultant vector c) Determine the direction of the resultant vector
following
The two vectors α and b in the figure below have equal magnitudes of 13.1 m and their angles are a = 30° and θ2-1039 0 (a) Find the x and y components of their vector sum r. (Express your answer in vector form.) (b) Find the magnitude of (c) Find the angle r makes with the positive x axis
The two vectors a and b in the figure have equal magnitudes of 10.6 m and the angles are ei-34° and 82-10%. Find (a) the x component and (b) the y component of their vector sum ,(e) the magnitude of , and (d) the angle r makes with the positive direction of the x axis. 8, (a) Number Units (b) NumberUnts (c) Number Units (d) Number Units
6
ture Supplement 4: Intro Vectors Worksheet B a vector (graphical, verbal, or mathematical) that is in: Provide an example of a) ID b) 2D c) 3D (graphi Outline the main vector operations we will use in class: a) Vector Addition b) Vector Subtraction c) Scalar Multiplication d) Vector Dot Product e) Vector Cross Product What is a resultant vector? 4 What is the component of a vector? 3,Define a unit vector. Give an example of a unit vector in...
Two vectors ~a and ~b have
equal magnitudes of 28.4 units. They are oriented as shown in the
figure below and their vector sum is ~r. Find
(a) the x and y components of ~r,
(b) the magnitude of ~r, and
(c) the angle ~r makes with the positive x-axis
ude of F, and ) the angle F makes with the positive x-axis. 105
