Calculate the corrected standard penetration test blow count (N1)60 and estimate the soil density using the...

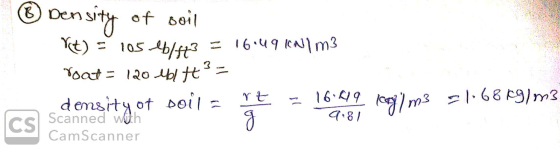

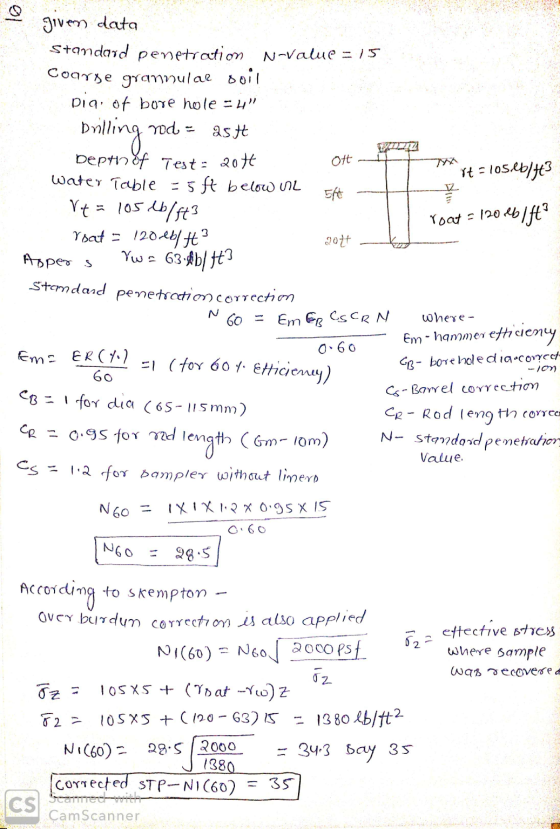

Calculate the corrected standard penetration test blow count (N1)60 and estimate the soil density using the information given below:
Standard Penetration N-value = 15
Test was conducted in coarse granular soil with a safety hammer, 4 inch diameter borehole, standard sampler, and 25 feet of drilling rods. The test was conducted at a depth of 20 feet. The water table was 5 feet below the ground surface. Assume a moist unit weight of 105 pounds per cubic foot above the water table and a saturated unit weight of 120 pounds per cubic foot below the water table.
Homework Answers
Add Answer to:
Calculate the corrected standard penetration test blow count
(N1)60 and estimate the soil density using the...
1. The standard penetration tests were conducted at a depth of 6.5 m in the normally consolidated...
I do not understand other commentary and ask.1. The standard penetration tests were conducted at a depth of 6.5 m in the normally consolidated coarse sand deposit and the blow count was 35. A USA donut hammer was employed in the test. The G.W.Τ. is located at a depth of 4.0m. The unit weight of sand above the G.W.T. is 17.5kN/m3, and the saturated unit weight of sand below the G.W.T. is 19.0kN/m3. a) Evaluate Noo and (N)so, b) estimate...
2GLE 418-12 runs A Standard penetration test taas been come in a museum statum having unit...
2GLE 418-12 runs A Standard penetration test taas been come in a museum statum having unit weight = 15 pef to a diet of 33 the lovel table is a below the sound level antais 121 . The hizo follows: 0-6°= 8.6-12* = 12. 12-08 = 15 h . Dercermine the c SPT value (N ) if the testing is assumed toamis te e . Further the were conducted using US sole dionut fame in asce m with a standard...
An Standard Penetration Tests was performed using an standard sampler at a depth of 45 ft...
An Standard Penetration Tests was performed using an standard sampler at a depth of 45 ft in silty sand of unit weight 125 lb/ft3. The blow counts for the first, second and third 6-inch increment of the test were 8, 13, and 16, respectively. The ground water table at the test location was at 12 ft below the ground surface. The rod length was 15 ft, and the bore hole size was 6 inch Calculate corrected SPT N-value. (I inch-25.4...
3. A soil boring was drilled in a multi-layered deposit, as shown in the boring log...
3. A soil boring was drilled in a multi-layered deposit, as shown in the boring log below. A SPT was also performed at intervals of 1 m. A donut hammer and a liner sampler were used. Care was taken to connect the rod segments firmly and to follow standard procedure. a. Find the corrected Noo at the depths of 9 and 27 feet. b. What is the (N;) at the depth of 13 feet? c. Estimate the drained friction angle...
5. An SPT test was performed at a depth of 4 meters below the ground surface...
5. An SPT test was performed at a depth of 4 meters below the
ground surface and the following values were obtained: 5-8-10 (each
value over a 15 cm depth increment). The efficiency of the SPT
hammer was measured as 70%. The unit weight of the soil from 0 to 2
meters is 19.7 kN/m3 , the unit weight of the soil from 2 to 3
meters is 18.6 kN/m3 and the unit weight of the soil from 3 to...
Can anyone solve this Geotechnical Engineering question.... I will leave good remarks ?? QUESTION 3 (20...
Can anyone solve this Geotechnical Engineering
question.... I will leave good remarks ??
QUESTION 3 (20 marks) A. Following are the results of a standard penetration test in sand. Determine the corrected standard penetration numbers, (N1), at various depths. Note that the water table was not observed within a depth of 35ft below the ground surface. Assume that the average unit weight of sand is 110 lb/ft! (5 marks) 5 Depth, Z NA 8 10 7 15 13 20 15...
I do not understand other commentary and ask.1. The standard penetration tests were conducted at a depth of 6.5 m in the normally consolidated coarse sand deposit and the blow count was 35. A USA donut hammer was employed in the test. The G.W.Τ. is located at a depth of 4.0m. The unit weight of sand above the G.W.T. is 17.5kN/m3, and the saturated unit weight of sand below the G.W.T. is 19.0kN/m3. a) Evaluate Noo and (N)so, b) estimate...
2GLE 418-12 runs A Standard penetration test taas been come in a museum statum having unit weight = 15 pef to a diet of 33 the lovel table is a below the sound level antais 121 . The hizo follows: 0-6°= 8.6-12* = 12. 12-08 = 15 h . Dercermine the c SPT value (N ) if the testing is assumed toamis te e . Further the were conducted using US sole dionut fame in asce m with a standard...
An Standard Penetration Tests was performed using an standard sampler at a depth of 45 ft in silty sand of unit weight 125 lb/ft3. The blow counts for the first, second and third 6-inch increment of the test were 8, 13, and 16, respectively. The ground water table at the test location was at 12 ft below the ground surface. The rod length was 15 ft, and the bore hole size was 6 inch Calculate corrected SPT N-value. (I inch-25.4...
3. A soil boring was drilled in a multi-layered deposit, as shown in the boring log below. A SPT was also performed at intervals of 1 m. A donut hammer and a liner sampler were used. Care was taken to connect the rod segments firmly and to follow standard procedure. a. Find the corrected Noo at the depths of 9 and 27 feet. b. What is the (N;) at the depth of 13 feet? c. Estimate the drained friction angle...
5. An SPT test was performed at a depth of 4 meters below the
ground surface and the following values were obtained: 5-8-10 (each
value over a 15 cm depth increment). The efficiency of the SPT
hammer was measured as 70%. The unit weight of the soil from 0 to 2
meters is 19.7 kN/m3 , the unit weight of the soil from 2 to 3
meters is 18.6 kN/m3 and the unit weight of the soil from 3 to...
Can anyone solve this Geotechnical Engineering
question.... I will leave good remarks ??
QUESTION 3 (20 marks) A. Following are the results of a standard penetration test in sand. Determine the corrected standard penetration numbers, (N1), at various depths. Note that the water table was not observed within a depth of 35ft below the ground surface. Assume that the average unit weight of sand is 110 lb/ft! (5 marks) 5 Depth, Z NA 8 10 7 15 13 20 15...
