Consider the system shown below. Block A (mass 8 kg) is connected to block B (mass...
Consider the system shown below. Block A (mass 8 kg) is connected to block B (mass 2 kg) by a horizontal string that passes over a massless, frictionless pulley.

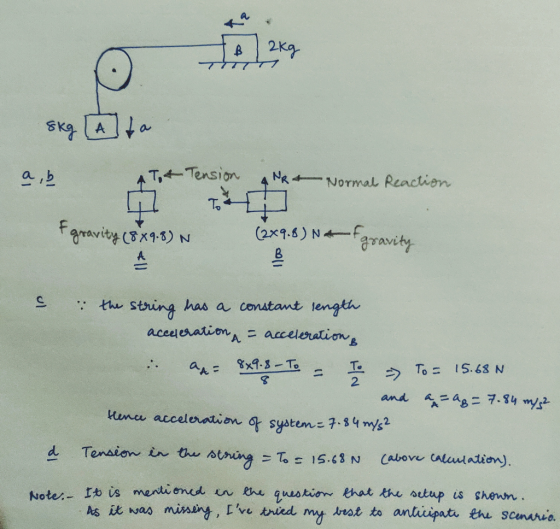

a. Draw and label all forces acting on blocks A and B.
b. Draw a free–body diagram for each block
c. Determine the acceleration of the system
d. Determine the tension on the string.
Homework Answers
Add Answer to:
Consider the system shown below. Block A (mass 8 kg) is
connected to block B (mass...
Consider the system shown below. Block A (mass 8 kg) is connected to block B (mass 2 kg) by a horizontal string that pas...
Consider the system shown below. Block A (mass 8 kg) is
connected to block B (mass 2 kg) by a horizontal string that passes
over a massless, frictionless pulley.
a. Draw and label all forces acting on blocks A and B.
b. Draw a free–body diagram for each block
c. Determine the acceleration of the system
d. Determine the tension on the string
.
A
A
Problem 1: Two blocks of mass: m, =25 kg and m2=45 kg are connected by that...
Problem 1: Two blocks of mass: m, =25 kg and m2=45 kg are connected by that passes over a pulley as show in the figure. The coefficients of kinetic and static friction between m, and the table are 0.25 and = 0.45, respectively a massless string 1 (a) Identify and label all forces and draw the free- body diagram for each block (b) Will the system be in static equilibrium? Assume the pulley is frictionless. m2 (e) Find the tension...
A block of mass m2 = 38 kg on a horizontal surface is connected to a...
A block of mass m2 = 38 kg on a horizontal surface is connected to a mass m2 = 20.1 kg that hangs vertically as shown in the figure below. The two blocks are connected by a string of negligible mass passing over a frictionless pulley. The coefficient of kinetic friction between m, and the horizontal surface is 0.24. m (a) What is the magnitude of the acceleration (in m/s2) of the hanging mass? 3.39 Did you draw a free-body...
1.A block of mass m = 5.00 kg is pulled along a horizontal frictionless floor by...
1.A block of mass m = 5.00 kg is pulled along a horizontal frictionless floor by a cord that exerts a force of magnitude F = 12.0 N at an angle θ = 25o . (a) Draw the free body diagram of the block. (b) Find the normal force. 2.Two crates are at rest on frictionless horizontal surface. Both crates are connected by a light rope. A woman wearing golf shoes (so she can get traction on the ice) pulls...
Monash College MCD 4270 Engineering Design Informal Assessment 10: (Sem1 2016) Name ID Number: As shown in igure 6 below, a block of mass 3 kg sits on a ramp that is inclined at an angle of S0 deg...
Monash College MCD 4270 Engineering Design Informal Assessment 10: (Sem1 2016) Name ID Number: As shown in igure 6 below, a block of mass 3 kg sits on a ramp that is inclined at an angle of S0 degrees to the horizontal. On top of this block rests another block of mass 2 kg. The two blocks are connected by a cord that passes over a frictionless pulley. The coefficient of static friction between all surfaces (i.e., between the two...
Any help with this test prep question would be greatly appreciated. A block of mass M...
Any help with this test prep question would be greatly
appreciated.
A block of mass M = 2.0 kg accelerates to the right on a surface with a kinetic coefficient of friction of MU_k = 0.30 pulled by a massless string which passes over a massless and frictionless pulley as shown. A block of mass m = 1.0 kg hangs freely from the other end of the string. Call the tension in the string T and the frictional force F_F....
Two blocks of mass 3.50 kg and 8.00 kg are connected by amassless string that...
Two blocks of mass 3.50 kg and 8.00 kg are connected by a
massless string that passes over a frictionless pulley as shown in
the figure. The inclines are also frictionless. Find (a) the
magnitude of the acceleration of each block and (b) the tension in
the string
A light rope is attached to a block with mass 3.00 kg that rests on a...
A light rope is attached to a block with mass 3.00 kg that rests on a frictionless, horizontal surface. The horizontal rope passes over a frictionless, massless pulley, and a block with mass m is suspended from the other end. When the blocks are released, the tension in the rope is 15.3 N . part a) Draw free-body diagram for the 3.00-kg block. Assume block is moving to the right. Draw the vectors starting at a black dot. The location...
A block of mass m1 1.80 kg and a block of mass m2 5.55 kg are...
A block of mass m1 1.80 kg and a block of mass m2 5.55 kg are connected by a massless string over a pulley in the shape of a solid disk having radius R = 0.250 m and mass M = 10.0 kg. These blocks are allowed to move on a fixed block-wedge of angle e 30.0°. The coefficient of kinetic friction is 0.360 for both blocks. Draw free-body diagrams of both blocks and of the pulley. M, R Mig...
Two blocks of mass m_1 = 3.00 kg and m_2 = 7.00 kg are connected by...
Two blocks of mass m_1 = 3.00 kg and m_2 = 7.00 kg are connected by a massless string that passes over a frictionless pulley (see the figure below). The inclines are frictionless Find the magnitude of acceleration of each block. m/s^2 Find the tension in the string. N
Consider the system shown below. Block A (mass 8 kg) is
connected to block B (mass 2 kg) by a horizontal string that passes
over a massless, frictionless pulley.
a. Draw and label all forces acting on blocks A and B.
b. Draw a free–body diagram for each block
c. Determine the acceleration of the system
d. Determine the tension on the string
.
A
A
Problem 1: Two blocks of mass: m, =25 kg and m2=45 kg are connected by that passes over a pulley as show in the figure. The coefficients of kinetic and static friction between m, and the table are 0.25 and = 0.45, respectively a massless string 1 (a) Identify and label all forces and draw the free- body diagram for each block (b) Will the system be in static equilibrium? Assume the pulley is frictionless. m2 (e) Find the tension...
A block of mass m2 = 38 kg on a horizontal surface is connected to a mass m2 = 20.1 kg that hangs vertically as shown in the figure below. The two blocks are connected by a string of negligible mass passing over a frictionless pulley. The coefficient of kinetic friction between m, and the horizontal surface is 0.24. m (a) What is the magnitude of the acceleration (in m/s2) of the hanging mass? 3.39 Did you draw a free-body...
Monash College MCD 4270 Engineering Design Informal Assessment 10: (Sem1 2016) Name ID Number: As shown in igure 6 below, a block of mass 3 kg sits on a ramp that is inclined at an angle of S0 degrees to the horizontal. On top of this block rests another block of mass 2 kg. The two blocks are connected by a cord that passes over a frictionless pulley. The coefficient of static friction between all surfaces (i.e., between the two...
Any help with this test prep question would be greatly
appreciated.
A block of mass M = 2.0 kg accelerates to the right on a surface with a kinetic coefficient of friction of MU_k = 0.30 pulled by a massless string which passes over a massless and frictionless pulley as shown. A block of mass m = 1.0 kg hangs freely from the other end of the string. Call the tension in the string T and the frictional force F_F....
A block of mass m1 1.80 kg and a block of mass m2 5.55 kg are connected by a massless string over a pulley in the shape of a solid disk having radius R = 0.250 m and mass M = 10.0 kg. These blocks are allowed to move on a fixed block-wedge of angle e 30.0°. The coefficient of kinetic friction is 0.360 for both blocks. Draw free-body diagrams of both blocks and of the pulley. M, R Mig...
Two blocks of mass m_1 = 3.00 kg and m_2 = 7.00 kg are connected by a massless string that passes over a frictionless pulley (see the figure below). The inclines are frictionless Find the magnitude of acceleration of each block. m/s^2 Find the tension in the string. N
